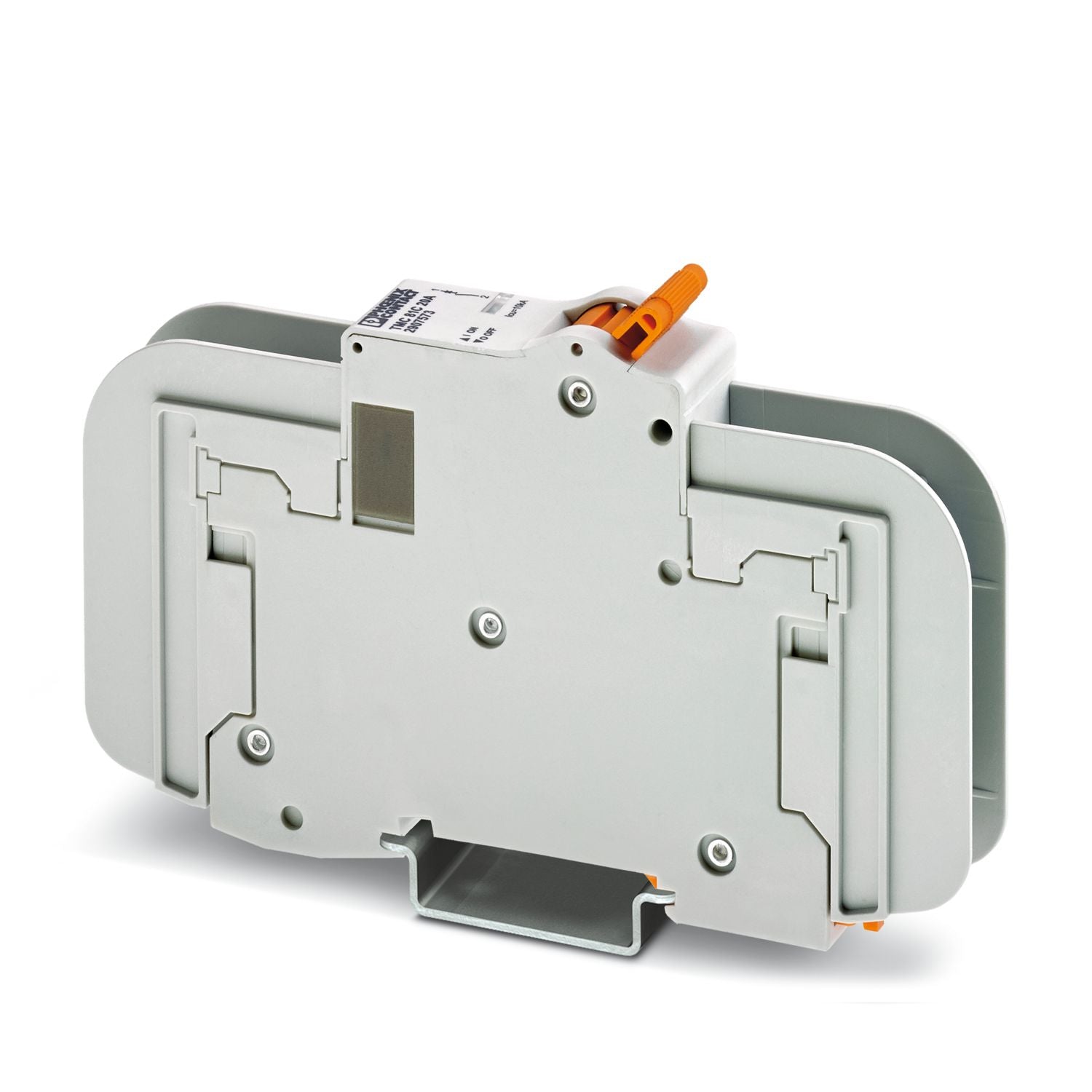

PHOENIX CONTACT 2907560 TMC 81C 03A Miniature Circuit Breaker 3A

Product Description

The PHOENIX CONTACT 2907560 TMC 81C 03A Miniature Circuit Breaker is designed for branch circuit protection. It meets the UL 489 standard and offers reliable overload protection with a breaking capacity of ten kA. Ideal for use in various applications, this circuit breaker features a C tripping characteristic and mounts on NS 35 DIN rail.

• Rated current of three A
• Operating voltage of one hundred twenty V AC and sixty V DC
• Mechanical service life of twenty thousand operations

Product Highlights

Product Information

Standard Information

• Product Type: Circuit Breakers
• Mounting Type: DIN Rail Module

Technical Specifications

• Rated Voltage AC: 277 V
• Rated Voltage DC: 60 V
• Tripping Method: Thermal-Magnetic
• Current Rating: 3 A
• Short Circuit Breaking Capacity: 10 kA
• Conductor Cross Section: 1 mm² ... 35 mm²
• Width: 17.6 mm
• Height: 116 mm
• Depth: 75.9 mm
• Operating Temperature Range: -35 °C to 70 °C
• Humidity Test: 48 hours at 95% RH, 40 °C
• Approval Agency: cULus, UL489
