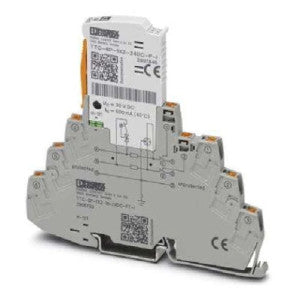

Phoenix Contact 2906750 TTC-6P Series Surge Protection Device Polybutylene Terephthalate

Product Description

The Phoenix Contact 2906750 is a surge protection device designed for reliable electrical systems. This device includes a protective plug and base element, equipped with an integrated status indicator and a disconnect knife for a two-wire floating signal circuit. It is compatible with current loops, including 0(4) to 20 mA.

• Space-saving design with a width of six point two millimeters
• Mechanical status indicator eliminates the need for auxiliary power
• Supports remote signaling for up to forty devices without extra wiring

Product Highlights

Designed for fast installation, the TTC-6P Series allows easy replacement of protective plugs and ensures safe operation under overload conditions. The device follows stringent standards ensuring reliable surge protection for various applications.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 2906750
• Type: Surge Protection Device
• Dimensions: 4.17 H x 0.24 W x 3.94 D in.

Technical Specifications

• Max. Surge Current: 30V dc; 21V ac
• Amperage Rating: 600 mA
• Voltage Configuration: 24V dc
• Series: TTC-6P Series
• Country of Origin: DE - Germany
• ECCN: EAR99
• Degree of Protection: IP20
• Operating Temperature: -40 to 85 °C
