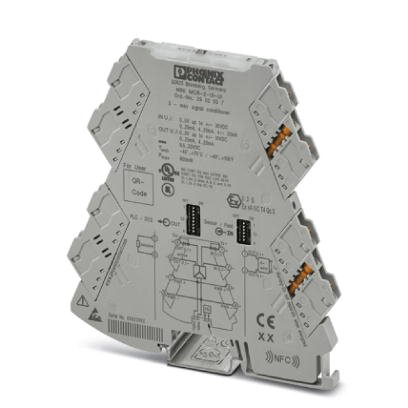

Phoenix Contact 2902037 3-way Signal Conditioner w/Plug-In

Product Description

The Phoenix Contact 2902037 is a 3-way signal conditioner featuring plug-in connection technology. It provides electrical isolation for both unipolar and bipolar analog signals. The device is equipped with a calibrated measuring range changeover for enhanced flexibility. Input and output configurations are easily adjustable via a DIP switch, ensuring straightforward setup and integration.

• Electrical isolation for unipolar and bipolar signals
• Input/output configurable through DIP switch
• Standard screw connection technology

Product Highlights

This signal conditioner is suitable for various applications in industrial settings, ensuring reliable signal conversion and isolation.

Product Information

Standard Information

• Brand: Phoenix Contact
• Part Number: 2902037

Technical Specifications

• ECCN: EAR99
• Country of Origin: DE - Germany
• UNSPSC: 39121008
• Depth: 120.5 mm
• Width: 6.2 mm
• Height: 110.5 mm
• Input Type: Analog
• Input Range: 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10-10 V, 2-10 V, 0-20 V, 4-20 V, 0-24 V, 0-30 V, -5-5 V, -20-20 V, -24-24 V, -30-30 V, -20-20 mA
• Output Type: Analog
• Output Range: 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10-10 V, -5-5 V
