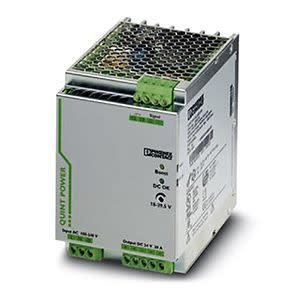

Phoenix Contact 2866776 Primary-Switched DIN Rail QUINT Fused Power Supply 100 to 350V AC/DC 5.1 to 2.3A output 24V DC 20A

Product Description

The Phoenix Contact MPN 2866776 is a primary-switched DIN rail QUINT fused power supply with a voltage input range of one hundred to three hundred fifty volts AC/DC. It provides an output of twenty-four volts DC at twenty amps. This power supply is suitable for a variety of industrial applications.

• Input voltage: 100 to 350V AC/DC
• Output voltage: 24V DC with a maximum output of 20A
• Compact design for easy installation on DIN rails

Product Highlights

The QUINT power supply series ensures reliable power supply in industrial environments. It features an extended temperature range and can be connected in parallel.

Product Information

Standard Information

• Brand: Phoenix Contact
• Part Number: 2866776

Technical Specifications

• Input Voltage: 100 to 350V AC/DC
• Output Voltage: 24V DC
• Output Amperage: 20A
• Temperature Range: -25°C to 70°C
• Width: 90 mm
• Height: 130 mm
• Depth: 125 mm
• Country of Origin: TH - Thailand
• Standards/Approvals: RoHS 2014/30/EU, EN 50178, UL/C-UL Listed
