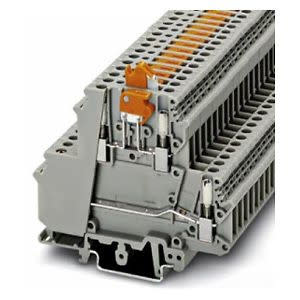

Phoenix Contact 2800004 Knife Disconnect Terminal Block Screw Connection 400V 26A 24-12 AWG 6.1mm W

Product Description

The Phoenix Contact 2800004 Knife Disconnect Terminal Block is designed for efficient connections in electrical systems. This terminal block supports a voltage rating of four hundred volts and an amperage rating of twenty-six amps, making it suitable for various applications.

• Supports wire sizes between twenty-four and twelve AWG.
• Equipped with a DIN rail mounting for easy installation.
• Features a screw connection for reliable and secure electrical connections.

Product Highlights

This terminal block is built with a space-saving design just six millimeters wide, ideal for compact installations, and features user-friendly disconnect knife operations to streamline maintenance and circuit management.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• MPN: 2800004

Technical Specifications

• Rated Current: 26A
• Rated Voltage: 400V
• Dimensions: 80 mm L x 6.1 mm W
• Wire Strip Length: 8 mm
• Torque Rating: 0.6 to 0.8 N-m
• Material: Polyamide
• Mounting Type: DIN Rail
• Connection Type: Screw
