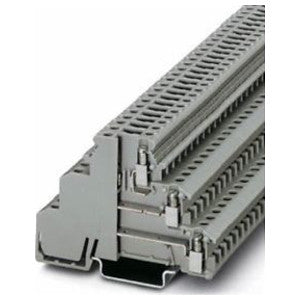

Phoenix Contact 2774237 Sensor/Actuator Terminal Block Screw Connection 250V 15A 24 to 12 AWG

Product Description

Phoenix Contact 2774237 is a sensor and actuator terminal block designed for various industrial applications. It features six screw connections and supports wire sizes from twenty-four to twelve AWG. Rated for a maximum voltage of two hundred fifty volts and a current of fifteen amps, this terminal block is suitable for robust electrical connections.

• Three-level design for space-efficient wiring.
• Specifications include a maximum temperature rating of one hundred twenty-five degrees Celsius.
• DIN rail mountable for easy installation in control panels.

Product Highlights

The Phoenix Contact 2774237 terminal block is ideal for industrial control and automation, providing secure connections with its user-friendly screw terminals.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 2774237

Technical Specifications

• Rated Current: 15A
• Rated Voltage: 250V
• AWG Range: 24 - 12
• Number of Connections: 6
• Width: 6.2 mm
• Height: 54.5 to 62 mm
• Temperature Rating: 125 degrees Celsius
• Material: Polyamide
