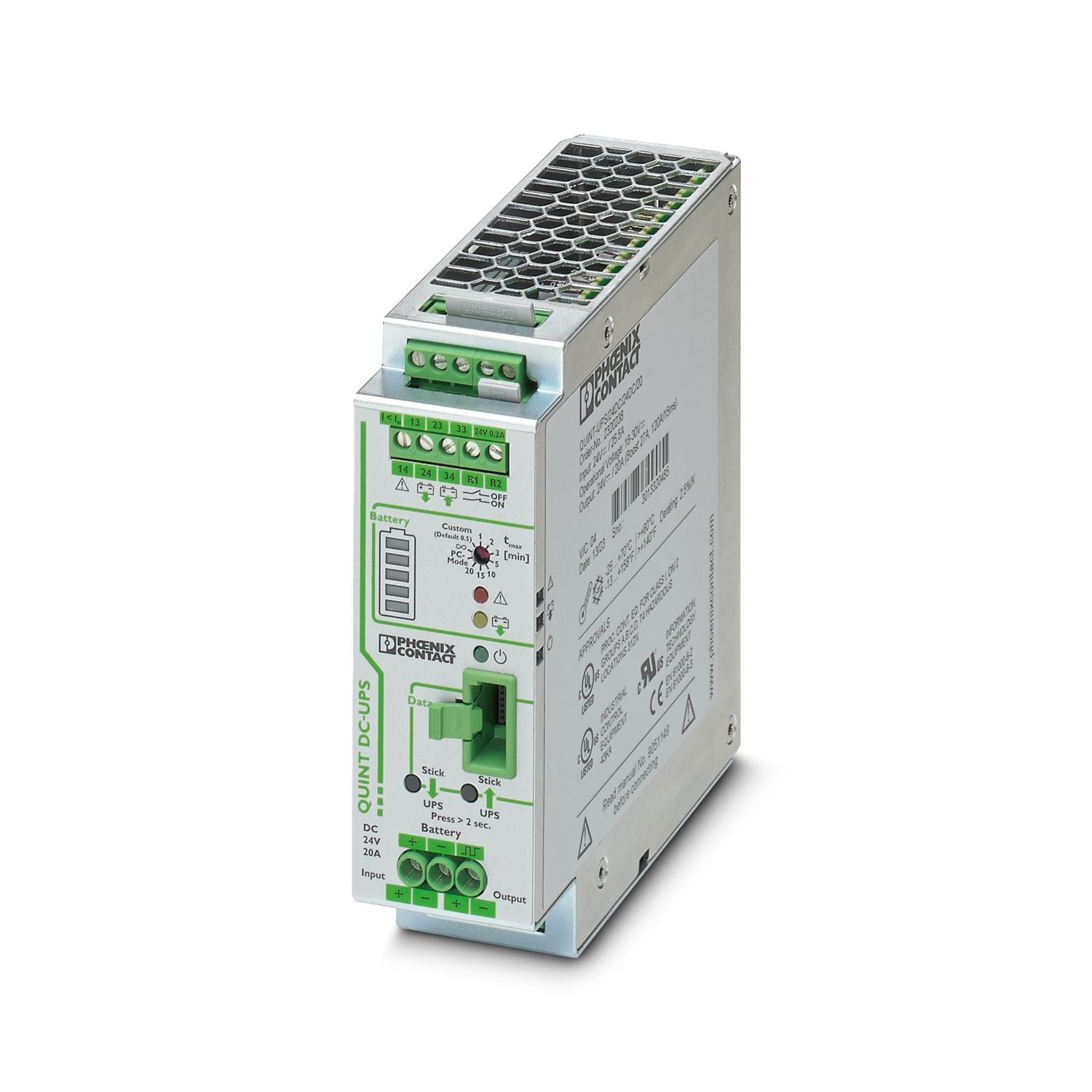

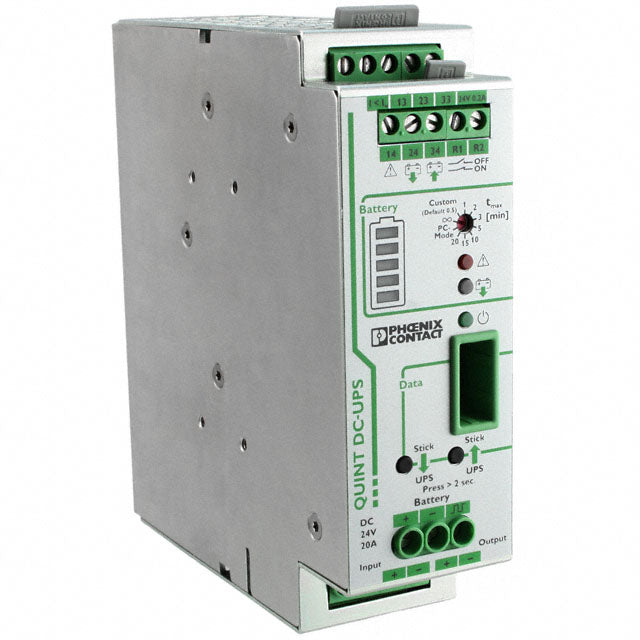

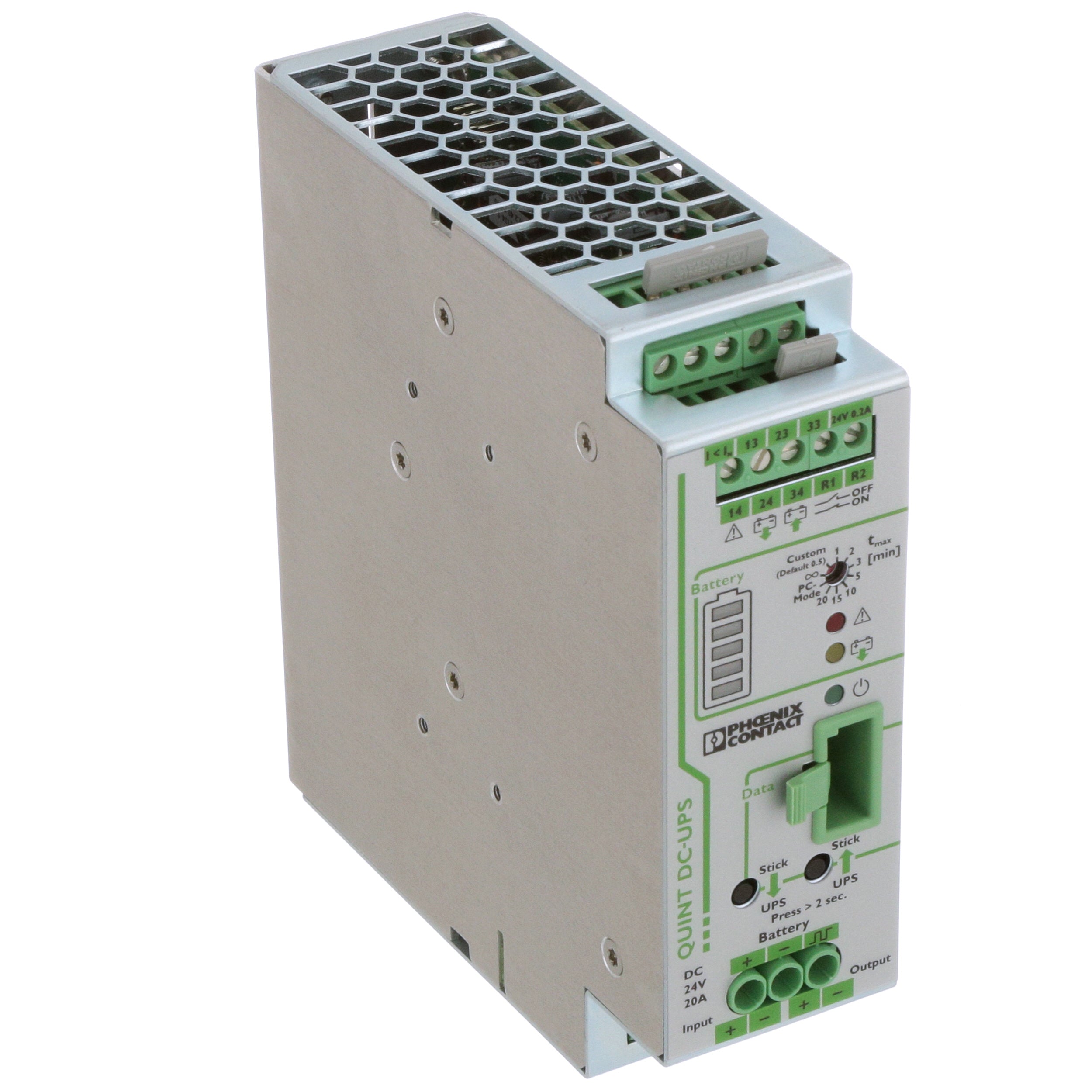

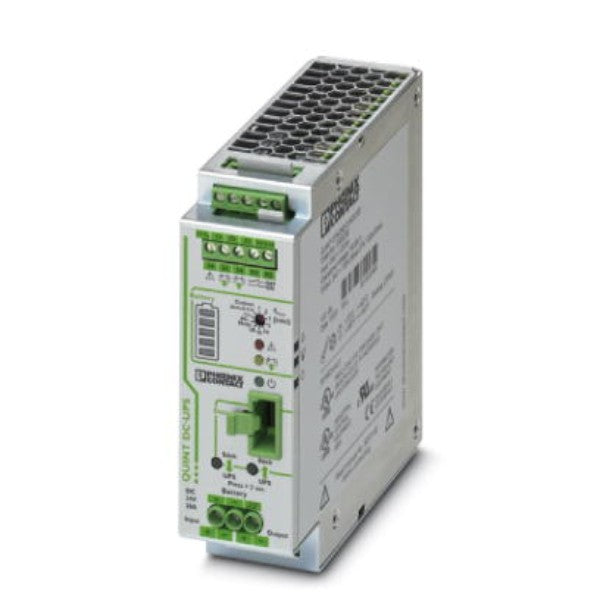

Phoenix Contact 2320238 Uninterruptible Power Supply with IQ Technology 24 V DC 20 A (40 mm)

Brand: PHOENIX CONTACT
SKU: 2320238
Availability: In Stock

Ships same day if ordered by 12 pm
$894.51
$894.51
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Phoenix Contact 2320238 is an uninterruptible power supply with IQ technology for DIN-rail mounting that accepts 24 V DC input and provides a nominal 24 V DC output up to 20 A. The slim 40 mm module supports battery operation and mains buffering, offers automatic battery detection and supports IFS communication for monitoring and parameterization.

  • IQ technology for intelligent power management and automatic battery detection
  • 24 V DC output, 20 A nominal current (480 W rated power) with POWER BOOST for starting difficult loads
  • DIN-rail mounting, 40 mm width, tool-free battery replacement and IFS communication interface

Product Highlights

DIN-rail UPS, 24 VDC output, 20 A (480 W), IQ technology, 40 mm width, IP20 enclosure

Product Information

Standard Information

  • Brand: PHOENIX CONTACT
  • Manufacturer Part Number: 2320238
  • Country of Origin: China
Technical Specifications
Brand
Phoenix Contact
Manufacturer Part Number
2320238
Product Family
QUINT DC UPS
Product Type
Uninterruptible power supply (DC UPS)
Input Voltage
24 V DC
Input Voltage Range
18 V DC ... 30 V DC
Output Voltage
24 V DC
Output Current
20 A
Output Power
480 W
Power Boost
26 A (mains) / 27 A (battery)
Selective Fuse Breaking (SFB)
120 A (duration 12 ms mains / 15 ms battery)
Backup Time
60 min (with appropriate battery module)
Charging Current
0.2 A ... 5 A
Nominal Battery Capacity Range
3 Ah ... 200 Ah
IQ Technology
Yes
Mounting Type
DIN rail
Width
40 mm
Dimensions (W x H x D)
40 mm x 130 mm x 125 mm
Weight (excluding packing)
601 g
Enclosure Rating
IP20
Operating Temperature
-25 to 70 deg C
Storage Temperature
-40 to 85 deg C
Efficiency
> 98% (mains operation, with charged energy storage); 98% (battery operation)
Connection Type
Screw connection / screw-clamp
Conductor Cross-Section (rigid)
0.2 mm2 ... 6 mm2
Conductor Cross-Section (flexible)
0.2 mm2 ... 4 mm2
Stripping Length
8 mm
Screw Thread
M4
Tightening Torque
0.5 Nm / 0.6 Nm
Insulation Voltage Input/Output
500 V DC
Insulation Voltage Input/Output/Housing
750 V DC
Protection Class
III
Housing Material
Aluminum housing; steel sheet, zinc-plated hood
MTBF
> 500000 h (40 deg C)
Interfaces
IFS interface, relay outputs and LED indicators for alarm, battery charge, battery mode
Included Accessories
Universal DIN rail adapter UTA 107/30 (pre-mounted)
Approvals / Standards
UL Listed (UL 508, UL 60950), cUL, RoHS compliant, EN EMC standards
ECCN
EAR99
UNSPSC
39121011
Country of Origin
CN - China
