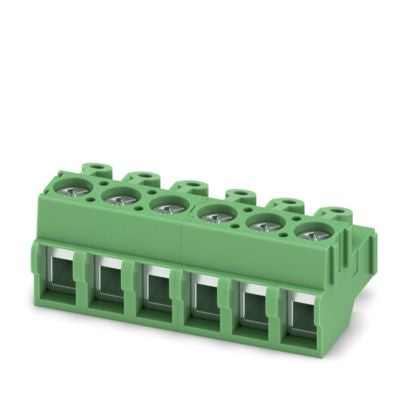

PHOENIX CONTACT 1934900 PT 1,5/ 6-PVH-5,0 PCB connector

Product Description

The PHOENIX CONTACT 1934900 PT 1,5/ 6-PVH-5,0 PCB connector is designed for effective electrical connections with a nominal cross-section of 1.5 mm2. This connector is suitable for various applications within electronic assemblies and circuit boards.

• Nominal current rating: 12 A
• Rated voltage: 400 V (III/2)
• Connection method: Screw connection with wire protector

Product Highlights

Reliable connection with easy installation and a compact design.

Product Information

Standard Information

• Contact surface: Sn
• Number of potentials: 6

Technical Specifications

• Number of positions: 6
• Number of connections: 6
• Pitch: 5 mm
• Mounting method: None
• Screw head form: H1L Slotted Phillips recess
• Conductor/PCB connection direction: 0 °
• Plug-in system: COMBICON PST 1,3
