PHOENIX CONTACT 1424477 Phoenix Contact Cable Gland G-INS-M25-L68N-PNES-GY 1424477

Product Description

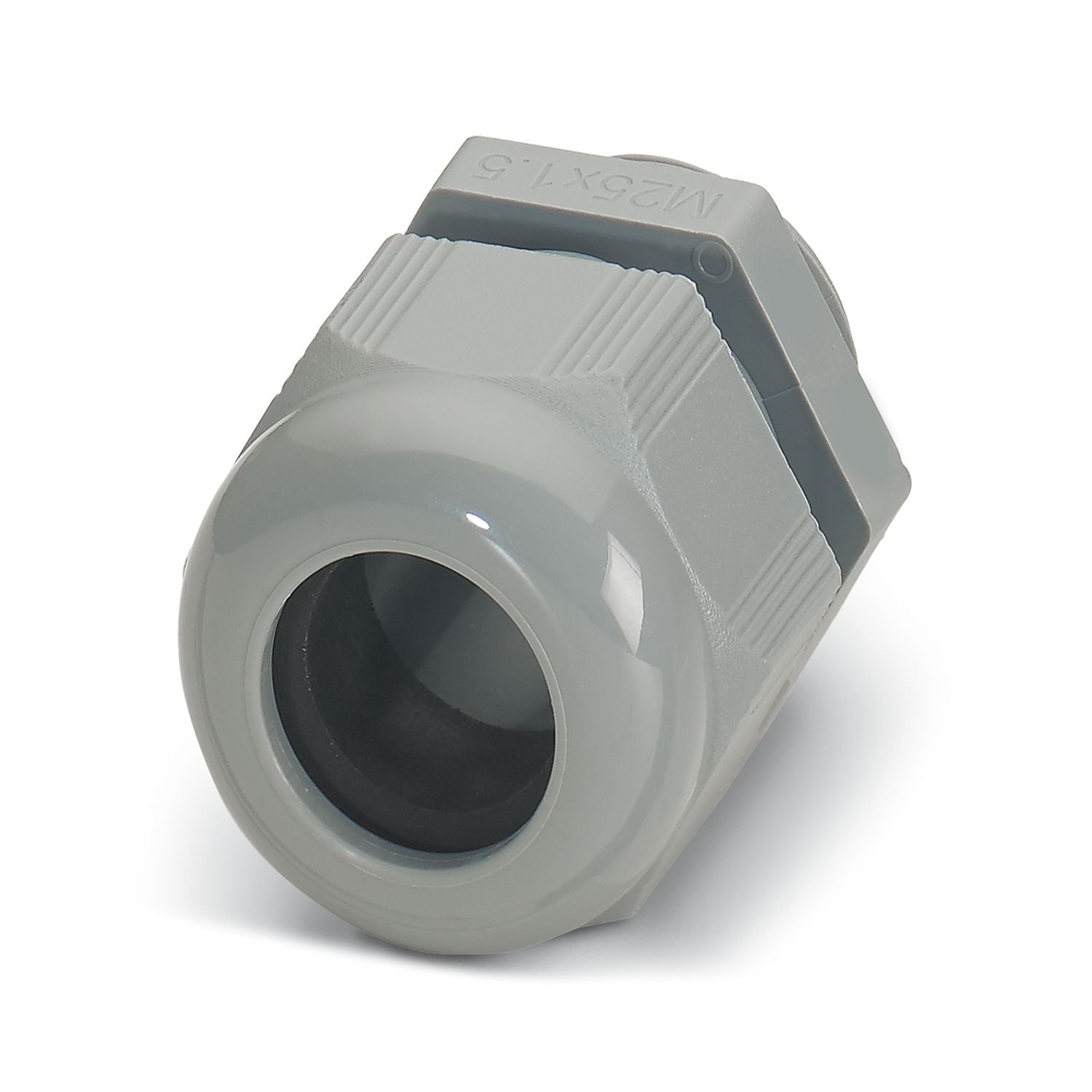

The Phoenix Contact 1424477 is a cable gland used for secure cable entry. Made from polyamide, this gland is designed for reliable performance in various applications. It supports external cable diameters from thirteen millimeters to eighteen millimeters and is equipped with an M25 x 1.5 connecting thread. This cable gland does not provide shielding and is ideal for standard wiring requirements.

• Constructed from durable polyamide material
• Accommodates external cable diameters of thirteen to eighteen millimeters
• M25 x 1.5 connecting thread ensures secure attachment

Product Highlights

This product is suited for different environments, ensuring a proper seal and durability.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• Product Type: Cable screw gland

Technical Specifications

• External Cable Diameter: 13 mm to 18 mm
• Thread Type: M25 x 1.5
• Length: 42 mm
• Tightening Torque: 8 Nm ±1 Nm (Cap nut), 3.5 Nm (Support sleeve)
• Degree of Protection: IP66/IP68 (5 bar / 0.5 h)
• Ambient Temperature (Operation): -40 °C to 100 °C (static)
• Packing Unit: 5 pieces
• EU RoHS Compliance: Yes
