Phoenix Contact 1415544 SAC-4P-M 8MS/5,0-PVC Sensor/actuator Cable 5 m

Product Description

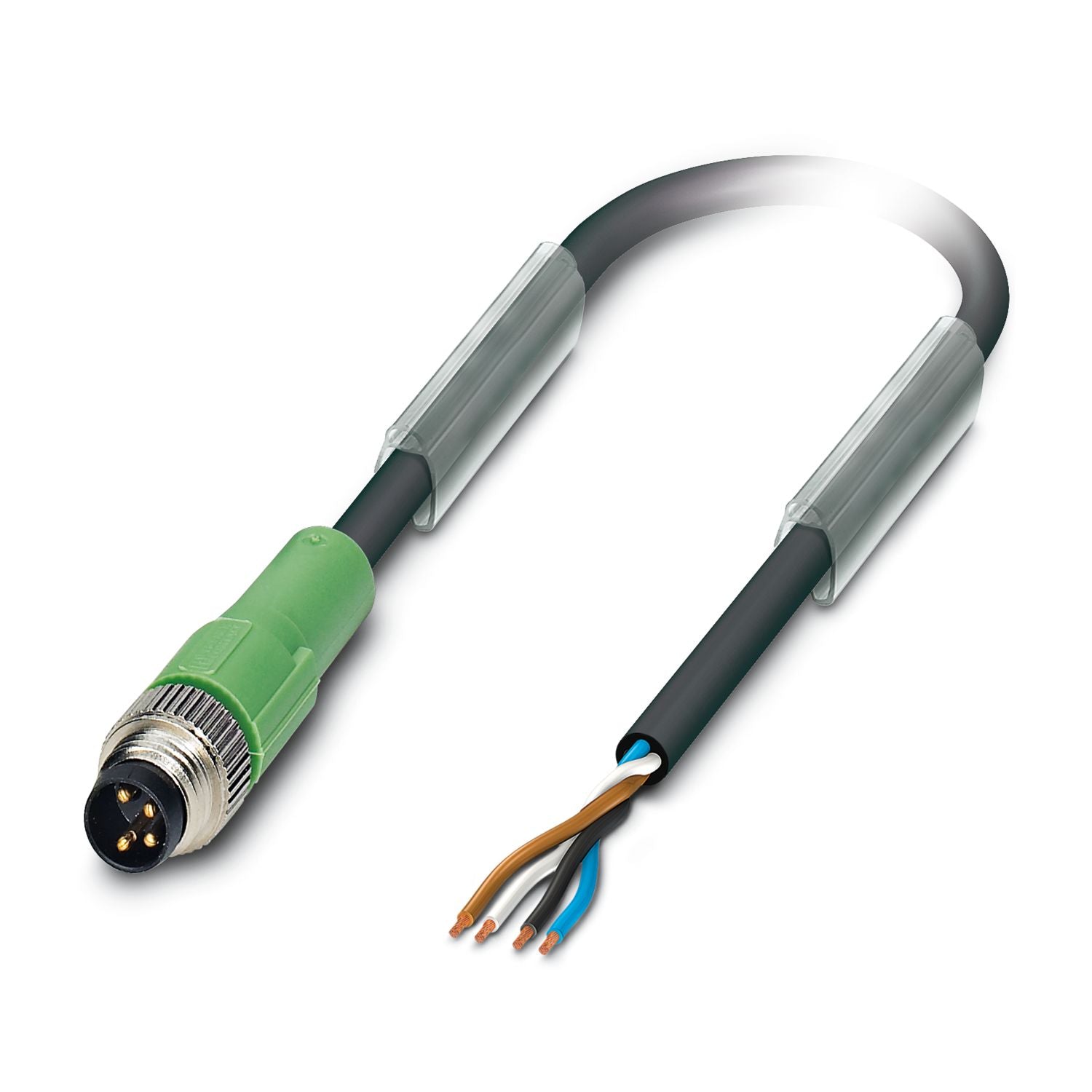

The PHOENIX CONTACT 1415544 SAC-4P-M 8MS/5,0-PVC is a sensor/actuator cable with a 4-position design, featuring a straight M8 plug and a free cable end. This cable has a length of 5 meters and is constructed from black PVC material. It is designed for standard applications in industrial environments.

• 4-position sensor/actuator cable
• Plug straight M8, coding: A, on free cable end
• Cable length: 5 m

Product Highlights

This sensor/actuator cable is 100% electrically tested, ensuring safe and easy installation. Suitable for various industrial applications.

Product Information

Standard Information

• Brand: PHOENIX CONTACT
• Manufacturer Part Number: 1415544
• Country of Origin: DE

Technical Specifications

• Product type: Sensor/actuator cable
• Application: Standard
• Number of positions: 4
• No. of cable outlets: 1
• Shielded: no
• Coding: A
• Overvoltage category: II
• Degree of pollution: 3
• Flammability rating according to UL 94: HB
• Material of grip body: TPU, hardly inflammable, self-extinguishing
• Contact material: CuSn
• Contact surface material: Ni/Au
• Contact carrier material: TPU GF
• Material for screw connection: Zinc die-cast, nickel-plated
• Insulation resistance: ≥ 100 MΩ
• Nominal voltage U N: 48 V AC 60 V DC
• Nominal Voltage: 48V AC / 60V DC
• Nominal current I N: 4 A
• Output Current: 4A
• Insertion/withdrawal cycles: ≥ 100
• Status display: no
• Status display present: no
• Connection 1 Type: Plug straight M8
• Connection 1 Number of positions: 4
• Connection 1 Coding type: A
• Connection 2 Type: free cable end
• Cable length: 5 m
• Length: 16.40' (5.00m)
• Cable type: PVC black [PVC]
• Cable weight: 33 kg/km
• UL AWM Style: 2464 / 1729 (80°C/300 V)
• Cable Shielded: no
• Conductor structure signal line: 14x 0.15 mm
• AWG signal line: 24
• Conductor cross-section: 4x 0.25 mm² (Signal line)
• Wire diameter incl. insulation: 1.17 mm ±0.05 mm
• External cable diameter: 4.40 mm ±0.15 mm
• Outer sheath, material: PVC
• External sheath, color: black RAL 9005
• Conductor material: Bare Cu litz wires
• Material wire insulation: PVC
• Single wire, color: brown, white, blue, black
• Thickness, insulation: ≥ 0.23 mm (Core insulation) ≥ 0.76 mm (Outer cable sheath)
• Overall twist: 4 wires, twisted
• Max. conductor resistance: max. 79 Ω/km (at 20 °C)
• Nominal voltage, cable: ≤ 300 V
• Test voltage: ≥ 3000 V
• Minimum bending radius, fixed installation: 5 x D
• Smallest bending radius, fixed installation: 22 mm
• Flame resistance: As per UL-Style 2464
• Resistance to oil: EN 60811-2-1
• Ambient temperature (operation): -25 °C ... 80 °C (cable, fixed installation) -10 °C ... 80 °C (Cable, flexible installation)
• Degree of protection: IP65 IP67 IP68
• Ingress Protection: IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
• Ambient temperature (operation) (male connector/female connector): -25 °C ... 90 °C (Plug / socket)
• Standard designation: M8 connector
• Standards/specifications: IEC 61076-2-104
• Cable Number of Positions: 4-Position
• Cable Coding: A - Standard
• Cable Knurl Material: Nickel-Plated
• Cable Head 1 Design: Plug Straight M8
• Cable Head 2 Design: Free Cable End
• Manufacturer: Phoenix Contact
• Component: Sensor-Actuator Cable
• Cable Material: Polyvinyl Chloride (PVC)
• Assembly Type: Single End Cordset
• Connector Type: Male
• Angle: Straight
• Poles: 4P
• Wire-Pin Code: A-Std. Color Code
• Wire-Pin Colors: Brown, White, Blue, Black
• Connector Material: TPU Body, Nickel Plated Die Cast Zinc
• Cable Type: Black PVC, 4x24 AWG
• Connector Mating Size: M8x1
• Application/​Rating - IEC: IP 65/IP 67/IP 68
• UNSPSC Code: 26120000
• Alternate Mfr Part Number: SAC-4P-M 8MS/5 0-PVC
• Brand: PHOENIX CONTACT
• Connector Angle Cable end 1: Straight
• Number of Conductors: 4
• Series: M8 Cordset Series
• Usage: Industrial Environments
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
