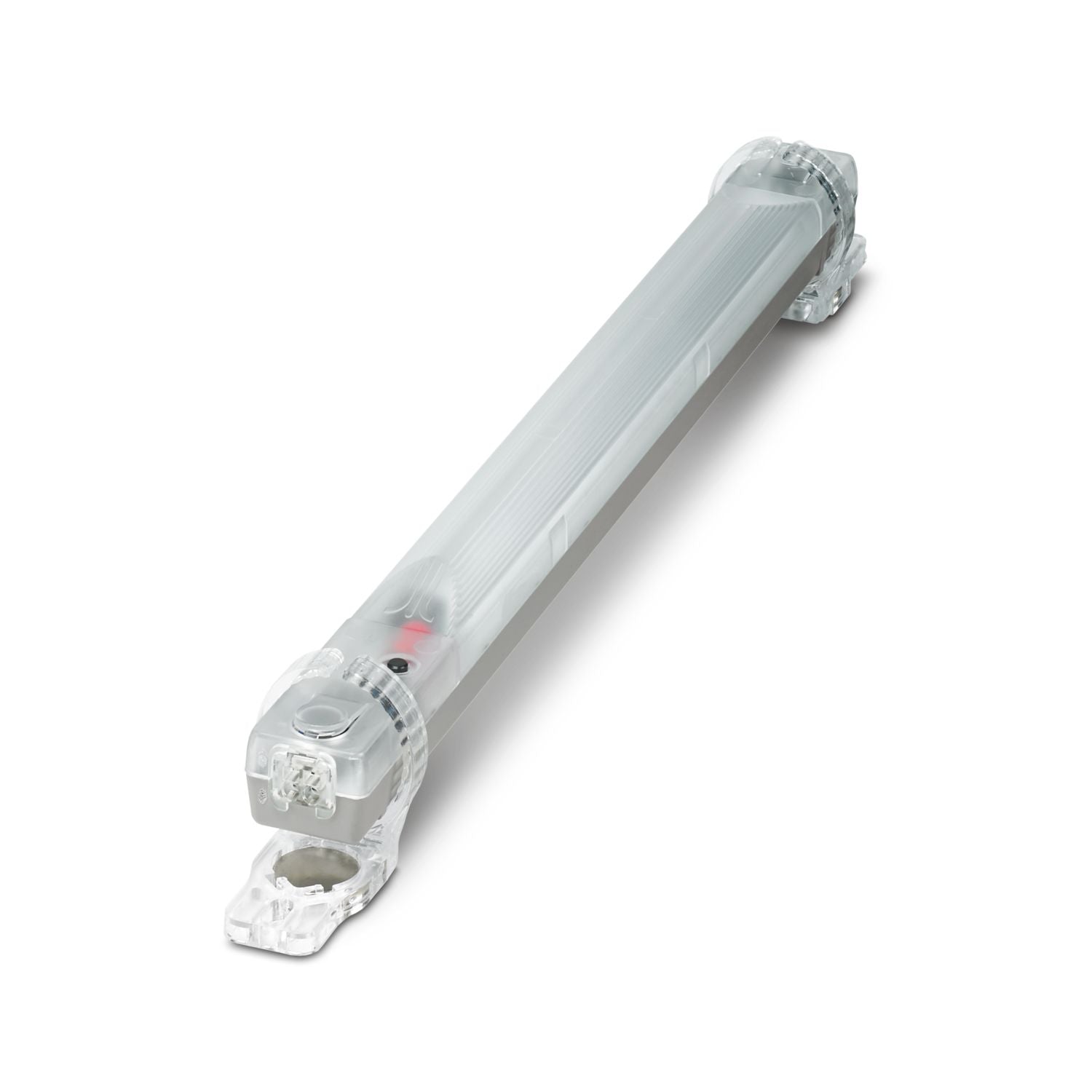

PHOENIX CONTACT 1319569 PLD E 409 W 350 LED Enclosure Light

Product Description

The PHOENIX CONTACT 1319569 LED Enclosure Light is suitable for illuminating control cabinets. It features a simple installation with options to use magnets or screws. This model provides optimal light through integrated prismatics and can connect multiple units. A convenient button allows users to switch the light between on/off and continuous modes.

• Series connection reduces cabling for grouped control cabinets.
• Swivel capability enhances the lighting range.
• Operates within a wide voltage input of twenty-four to two hundred sixty-five volts AC/DC.

Product Highlights

Ideal for control cabinets, this light offers flexibility with its swivel feature and push-in connections for easy setup.

Product Information

Standard Information

• Product Type: Enclosure light
• Application: Control cabinet

Technical Specifications

• Mounting Position: Any
• Special Properties: Swivel range of ninety degrees, includes mounting accessories
• Connection Method: Push-in
• Supply Voltage Range: 24 V AC/DC ... 265 V AC/DC (50/60 Hz)
• Current Consumption: 250 mA (24 V DC), 28 mA (240 V / 50 Hz)
• Power Consumption: 6 W

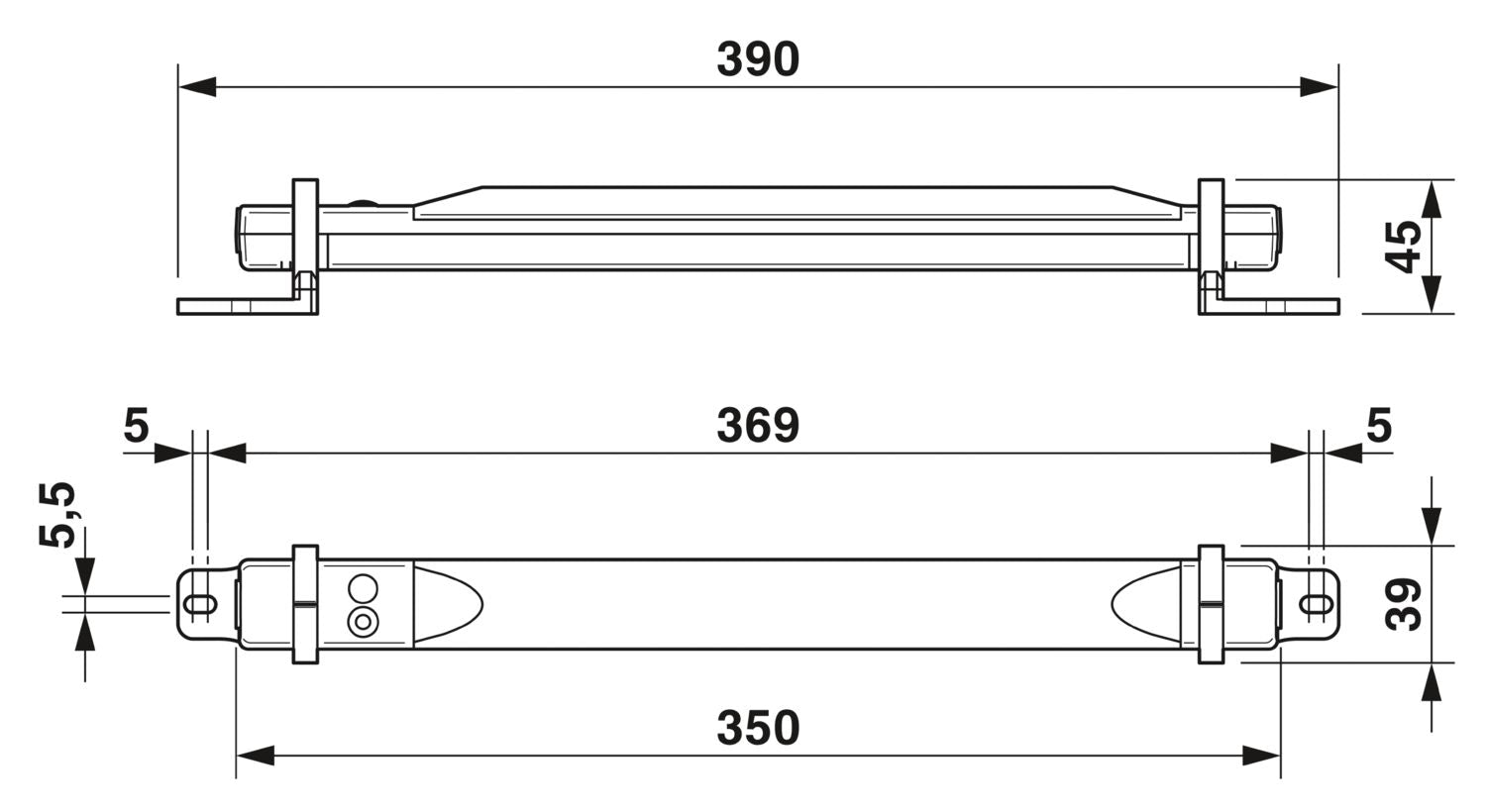

• Width: 39 mm
• Height: 45 mm
• Length: 390 mm
• Material: Polycarbonate housing
• Ambient Temperature (Operation): -25 °C ... 60 °C, -25 °C ... 70 °C (at 24 V DC)
• Degree of Protection: IP20
• Mounting Type: Screw or magnet mounting
• Rated Voltage: 24 - 265 V
• Luminous Flux: 700 lm
• Color Temperature: 5000 K
• Number of LEDs: 18
