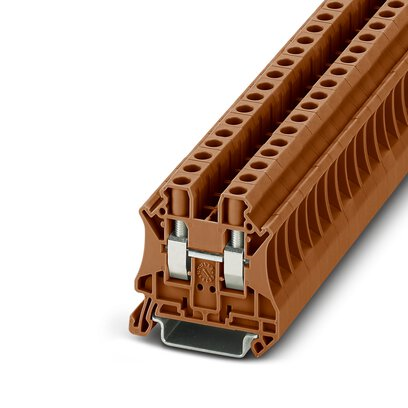

Phoenix Contact 1146197 Feed-through Terminal Block UT 6 BN

Product Description

The Phoenix Contact 1146197 is a feed-through terminal block designed for electrical connections in panel fabrication. It supports a nominal voltage of one thousand volts and a nominal current of forty-one amps. The block features screw connections and offers two connection points, making it versatile for various applications.

• Nominal voltage: 1000 V
• Nominal current: 41 A
• Connection method: Screw connection

Product Highlights

This terminal block features a compact design that is easy to install in standard rail systems. It accommodates wire cross sections ranging from zero point two square millimeters to ten square millimeters, making it compatible with a wide range of wiring standards.

Product Information

Standard Information

• Brand: Phoenix Contact
• Country of Origin: Germany

Technical Specifications

• Number of connections: 2
• Cross section: 0.2 mm² - 10 mm²
• AWG range: 24 - 8
• Width: 8.2 mm
• Height: 46.9 mm
• Mounting type: NS 35/7.5, NS 35/15
