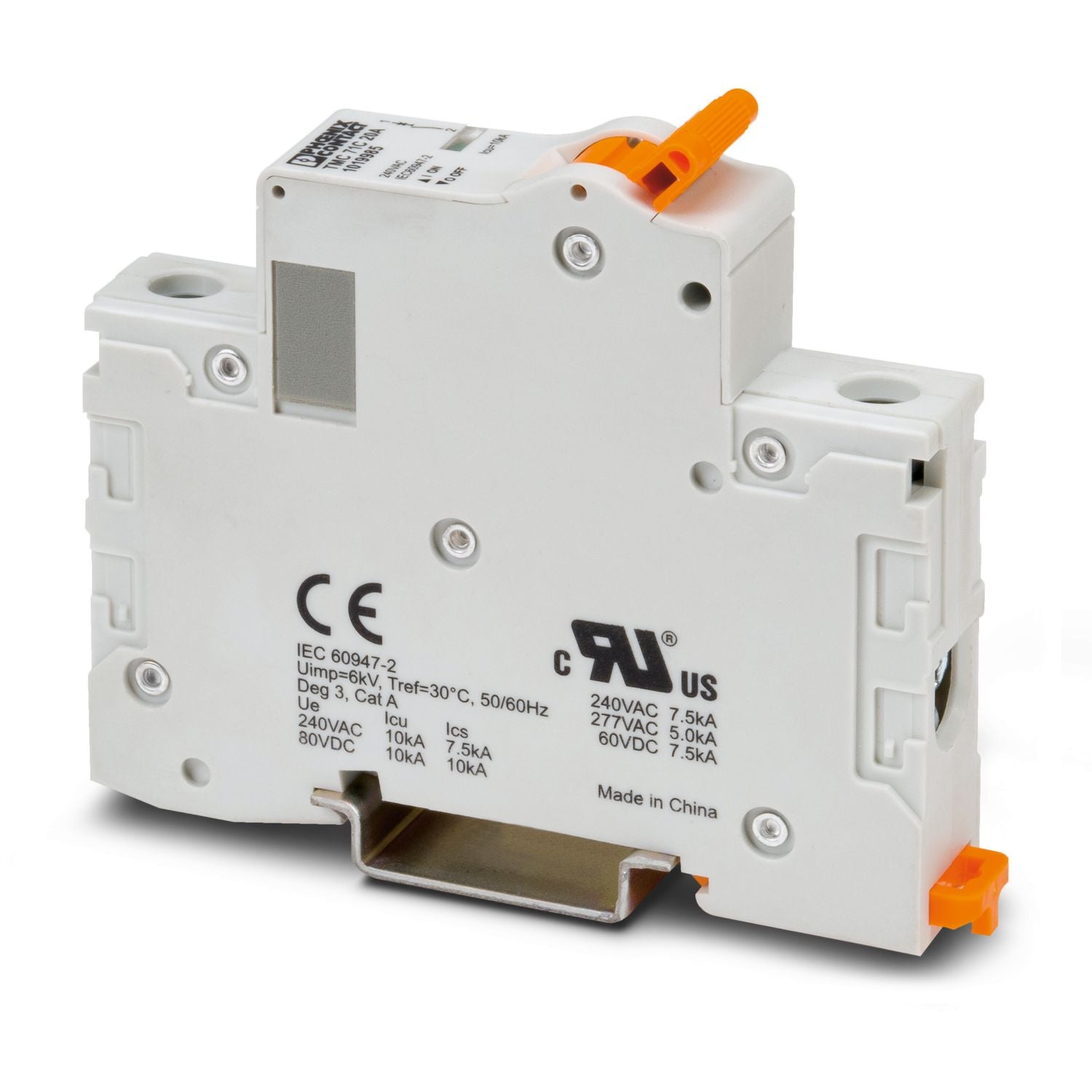

Phoenix Contact 1019975 Circuit Breaker 4A

Brand: PHOENIX CONTACT
SKU: 1019975
Availability: In Stock

Ships same day if ordered by 12 pm
$32.35
$32.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PHOENIX CONTACT 1019975 is a circuit breaker designed for device protection in systems requiring reliable overcurrent protection. It increases system reliability by isolating problematic circuits, allowing the rest of the system to remain operational. The TMC 7 series features snap-action technology, reducing wear on internal contacts, increasing product longevity and ensuring safety.

  • Can be used worldwide due to international approvals
  • Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
  • Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents

Product Highlights

The circuit breaker is ideal for device protection, increasing system reliability by isolating problematic circuits.

Product Information

Standard Information

  • Brand: PHOENIX CONTACT
  • Manufacturer Part Number: 1019975
  • Country of Origin: CN
Technical Specifications
ECCN
EAR99
Country of Origin
CN - China
Series
TMC 7 Series
Product type
Circuit breakers
Product family
TMC 7
Type
DIN rail module, one-piece
Number of positions
1
Mechanical service life
20000
Special properties
Supplementary Protector (UL 1077), for protection against overcurrent up to a short-circuit current of 7.5 kA. Supplementary protector; OC; UG- EA,B,D.
Service life electrical
6000
Operating voltage
277 V AC, 60 V DC
Rated current I
4 A
Tripping method
TM (thermal-magnetic)
Rated short-circuit switching capacity Icn
7.5 kA (240 V AC/ 60 V DC) 5 kA (277 V AC)
Fuse
C
Contact switching type
none
Conductor cross-section rigid
1 mm ... 35 mm
Cross section AWG
18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible
1 mm ... 35 mm
Connection method
Screw connection
Tightening torque, min
2 Nm
Tightening torque
2 Nm
Stripping length
11 mm ... 12 mm
Conductor cross-section flexible max.
35 mm
Conductor cross-section, rigid max.
35 mm
Degree of protection
IP20
Ambient temperature (operation)
-35 C ... 70 C
Humidity test
48 h, 95% RH, 40 C (IEC 60068-2-78)
Shock (operation)
30g (11 ms) (IEC 60068-2-11, test Ea)
Vibration (operation)
0,38 mm (10 Hz ... 57 Hz), 5g (57 Hz ... 500 Hz) (Sinusoidal test to IEC 60068-2-6, Test Fc. 10 frequency cycles per axis)
Standards/specifications
UL 1077, IEC 60947-2
Mounting Type
DIN Rail
Breaker Type
Thermal Magnetic
Current Rating (Amps)
4A
Voltage Rating - AC
277 V
Voltage Rating - DC
60 V
Actuator Type
Lever
Number of Poles
1
Illumination
None
Approval Agency
cULus, UL1077
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
HTSUS
8536.20.0040
Manufacturer
PHOENIX CONTACT
UNSPSC Code
39120000
Unit of Measure
EA
Voltage Rating
277 V, 60 V
UPC Code
4055626508627
Overload
Thermal Magnetic
Approvals
cUL Listed, UL listed
Standards
UL1077
Current Rating
4 A
