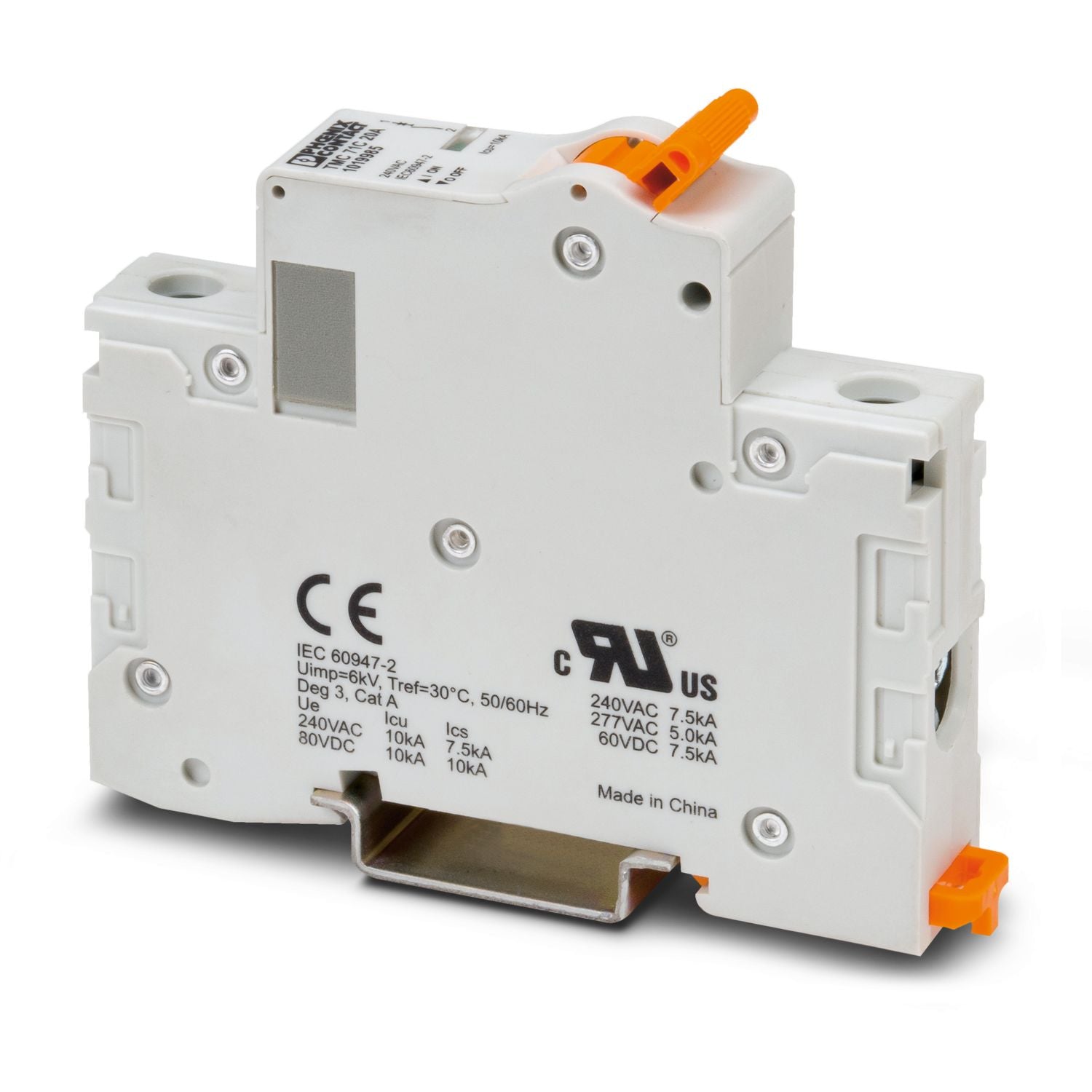

Phoenix Contact 1019974 Circuit Breakers TMC 71C 03A

Product Description

The PHOENIX CONTACT 1019974 is a thermomagnetic circuit breaker designed for circuit protection. It provides protection against overcurrent up to a short-circuit current of 7.5 kA. The device increases reliability by isolating problems in the system while allowing for continued operation. It is suitable for AC and DC applications.

• Can be used worldwide due to international approvals
• Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
• Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents

Product Highlights

The TMC 7 series circuit breaker features snap-action technology and a trip-free design, increasing product longevity and ensuring safety.

Product Information

Standard Information

• Brand: PHOENIX CONTACT
• Manufacturer Part Number: 1019974
• Country of Origin: CN

Technical Specifications

• Manufacturer: PHOENIX CONTACT
• Brand: PHOENIX CONTACT
• Product Group: BISS
• Model / MPN: 1019974
• Product type: Circuit breakers
• Product family: TMC 7
• Type: DIN rail module, one-piece
• Number of positions: 1
• Mechanical service life: 20000
• Special properties: Supplementary Protector (UL 1077), for protection against overcurrent up to a short-circuit current of 7.5 kA. Supplementary protector; OC; UG- EA,B,D.
• Service life electrical: 6000
• Operating voltage: 277 V AC, 60 V DC
• Rated current I N: 3 A
• Tripping method: TM (thermal-magnetic)
• Rated short-circuit switching capacity I cn: 7.5 kA (240 V AC/ 60 V DC), 5 kA (277 V AC)
• Fuse: C
• Contact switching type: none
• Conductor cross-section rigid: 1 mm ... 35 mm
• Cross section AWG: 18 ... 2 (converted acc. to IEC)
• Conductor cross-section flexible: 1 mm ... 35 mm
• Connection method: Screw connection
• Tightening torque, min: 2 Nm
• Tightening torque: 2 Nm
• Stripping length: 11 mm ... 12 mm
• Conductor cross-section flexible max.: 35 mm
• Conductor cross-section, rigid max.: 35 mm
• Width: 17.6 mm
• Height: 84.3 mm
• Depth: 75.9 mm (incl. DIN rail 7.5 mm)
• Degree of protection: IP20
• Ambient temperature (operation): -35 ... 70 (IEC 60068-2-78)
• Humidity test: 48 h, 95% RH, 40 (IEC 60068-2-78)
• Shock (operation): 30g (11 ms) (IEC 60068-2-11, test Ea)
• Vibration (operation): 0,38 mm (10 Hz ... 57 Hz), 5g (57 Hz ... 500 Hz) (Sinusoidal test to IEC 60068-2-6, Test Fc. 10 frequency cycles per axis)
• Standards/specifications: UL 1077, IEC 60947-2
• Mounting Type: DIN Rail
• Breaker Type: Thermal Magnetic
• Current Rating (Amps): 3A
• Voltage Rating - AC: 277 V
• Voltage Rating - DC: 60 V
• Actuator Type: Lever
• Number of Poles: 1 Pole
• Illumination: None
• Illumination Voltage (Nominal): None
• Approval Agency: cULus, UL1077
• Alternate Mfr Part Number: TMC 71C 03A
• Current Rating: 3 A
• Manufacturer Part Number: 1019974
• Overload: Thermal Magnetic
• Series: TMC 7 Series
• Standards: UL1077
• Voltage Rating: 480/277 V
• Mounting: 35mm DIN Rail
• Line Terminal: Screw
• Load Terminal: Screw
• Poles: 1P
• Amps: 3A
• Voltage: 277V AC, 60V DC
• Rating - kA IR: 7.5 kA IR at 240 VAC, 60 VDC, 5 kA IR at 277 VAC
• RoHS: Yes
• Alias/AKA: TMC-71C-03A
