Phoenix Contact 1012966 SACC-M12MS-5PL M DN Data Connector

Product Description

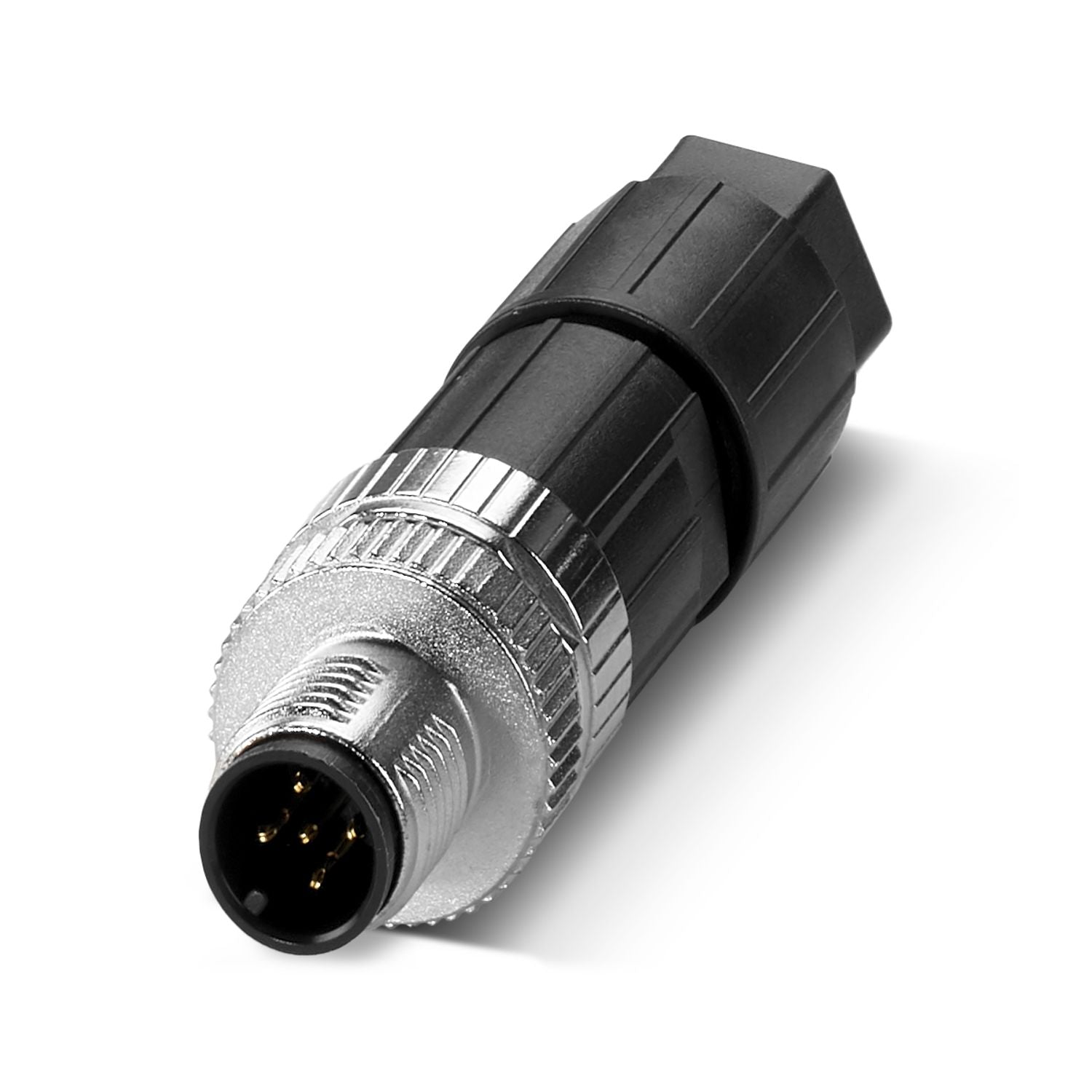

The Phoenix Contact 1012966 SACC-M12MS-5PL M DN is a reliable data connector that features a straight M12 plug with a push-lock spring connection. It is made of nickel-plated zinc die-cast material, ensuring durability and a strong grip. This connector supports CANopen and DeviceNet communication protocols.

• Push-lock design enables quick and tool-free connections.
• Color-coded levers make identification easier for users.

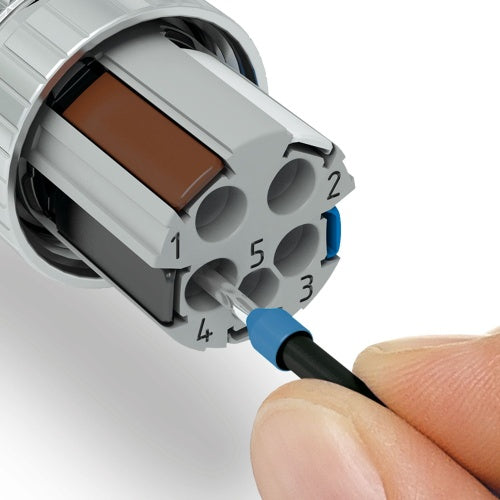

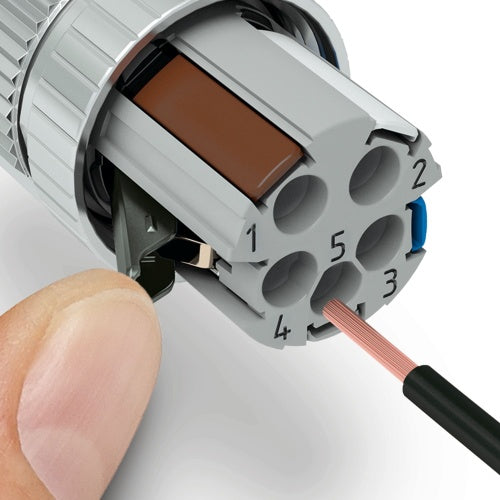

• Integrated Push-in Technology simplifies the wiring process.

Product Highlights

This connector is designed for secure and dependable operation with its spring-cage technology, making it suitable for various applications in industrial settings.

Product Information

Standard Information

• Type: Circular connector (cable-side)
• Application: Data

Technical Specifications

• Sensor Type: CANopen
• Number of Positions: 5
• Number of Cable Outlets: 1
• Coding: A
• Cable Outlet: Straight
• Length: 60 mm
• External Diameter: 4 mm to 8 mm
• Rated Voltage: 60 V DC
• Rated Current: 4 A
• Degree of Protection: IP65, IP67
• Operating Temperature: -40 °C to 85 °C
• Ambient Temperature: -40 °F to 185 °F
