Phoenix Contact 1008238 FBS 6-6 Series 32 A (23 H x 35.5 mm W)

Product Description

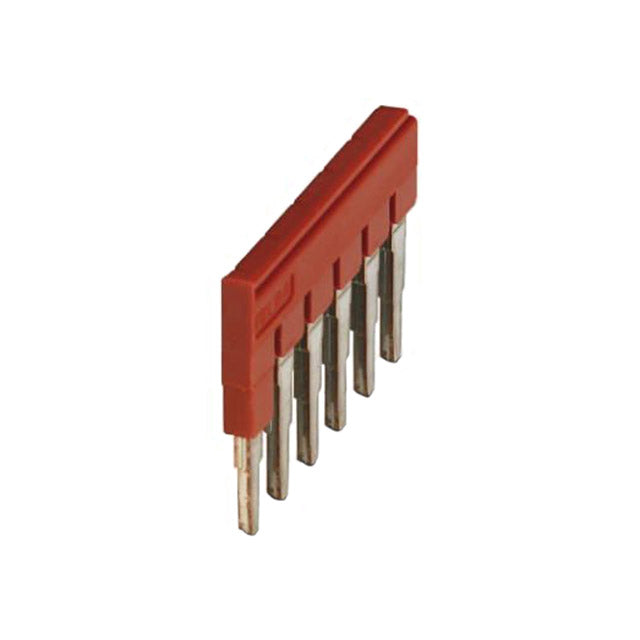

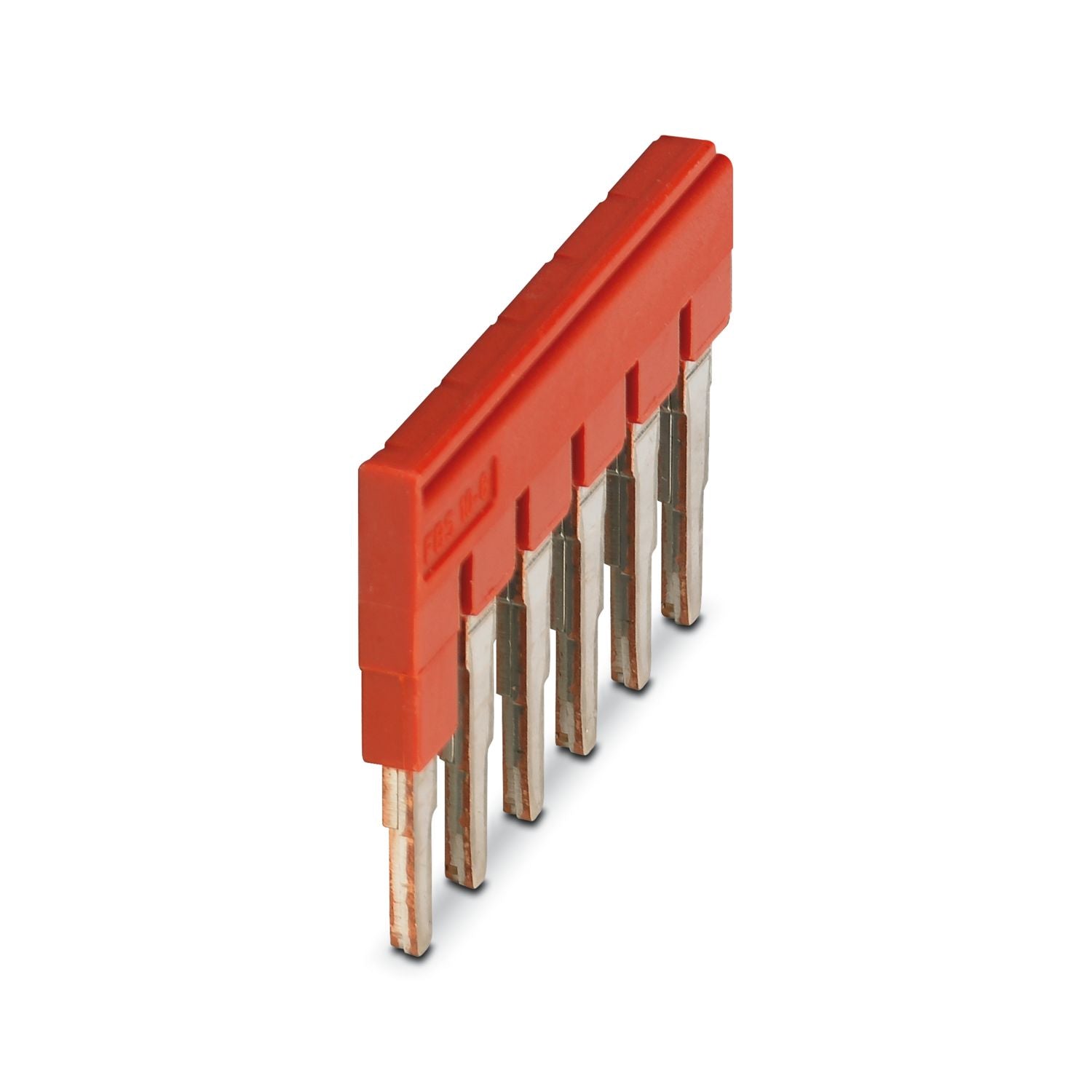

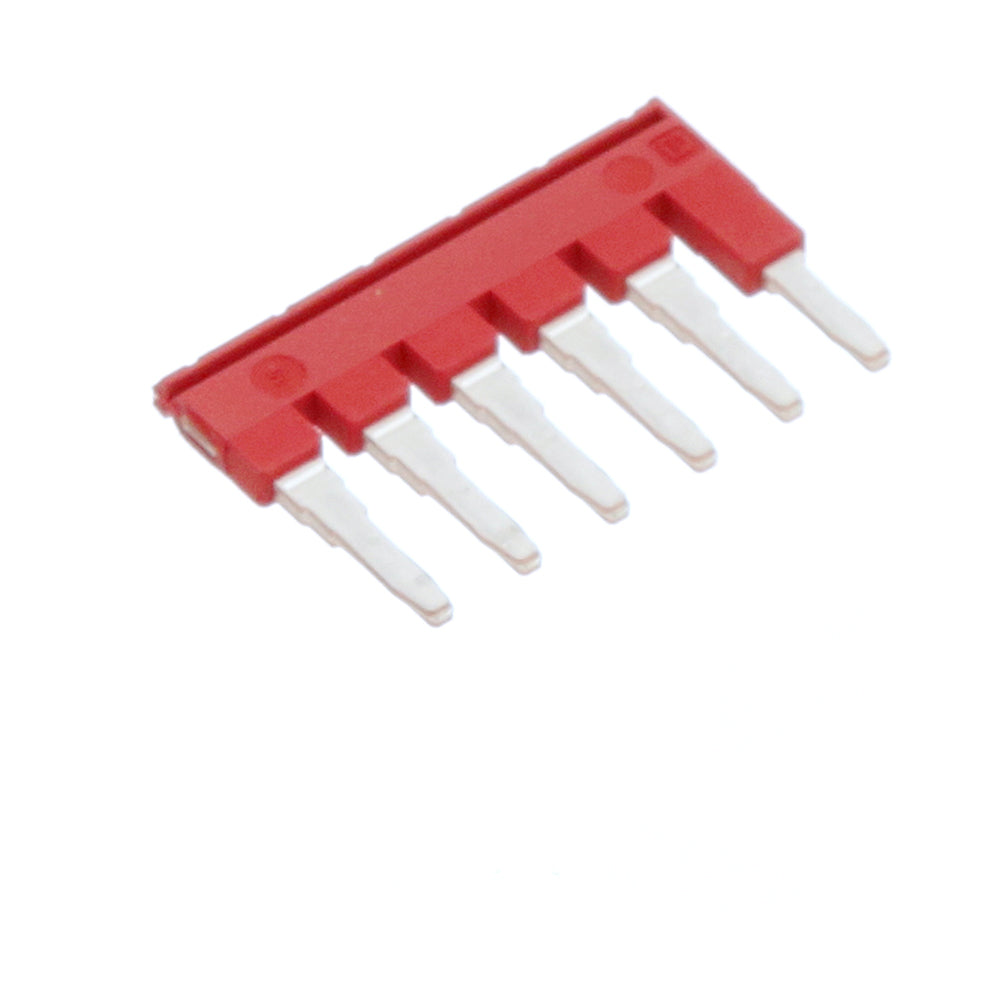

Phoenix Contact 1008238 is a plug-in bridge (FBS 6-6) for CLIPLINE complete terminal block systems, providing six positions with a 6.2 mm pitch and a 32 A rated current. The conductive element is copper with PA insulating material and UL 94 V0 flammability rating. It is designed for plug-in mounting and has compact dimensions of 23 mm height and 35.5 mm width for cross-connecting adjacent terminals.

• Six-position plug-in bridge with 6.2 mm pitch and 32 A rated current for CLIPLINE terminal blocks
• Copper contact material with PA insulating material and UL 94 V0 flammability rating
• Plug-in mounting, compact 23 mm height x 35.5 mm width; system capability to bridge multiple adjacent terminal blocks

Product Highlights

6-position, 6.2 mm pitch plug-in bridge rated 32 A for CLIPLINE terminal blocks; copper contact, PA insulation, UL 94 V0

Product Information

Standard Information

• Brand: PHOENIX CONTACT
• Manufacturer Part Number: 1008238
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 1008238
• Brand: Phoenix Contact
• Manufacturer: Phoenix Contact
• Series: FBS 6-6
• Product Type: Plug-in bridge
• Number of Positions: 6
• Pitch: 6.2 mm
• Rated Current: 32 A
• Width: 35.5 mm
• Height: 23 mm
• Depth: 23 mm
• Material (contact): Copper
• Insulating Material: PA
• Flammability Rating: UL 94 V0
• Mounting Type: Plug-in mounting
• Isolation: One side not fully isolated
• Compatible System: CLIPLINE complete
• Country of Origin: DE (Germany)
• GTIN: 4055626480558
• Packing Unit: 10 pc
• Weight (each): 5.8 g
• Operating Temperature: -60 C to 110 C (including self-heating)
• Storage/Transport Temperature: -25 C to 60 C (short time -60 C to +70 C)
• Assembly/Actuation Temperature: -5 C to 70 C
• Operating Humidity: 20% to 90%
