Phoenix Contact 0916605 Thermomagnetic Circuit Breaker 2 A 240 VAC/28 VDC

Product Description

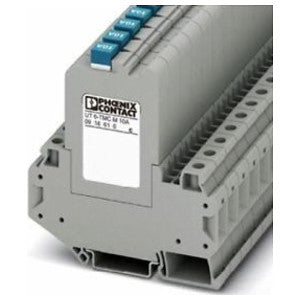

The Phoenix Contact 0916605 is a thermomagnetic circuit breaker. It operates at an amperage rating of 2 A and is suitable for applications with a voltage rating of 240 V AC and 28 V DC. This device is designed for easy mounting on a DIN rail.

• Single-pole, thermomagnetic design
• Thread connection type
• IP20/IP40 enclosure ratings

Product Highlights

The thermomagnetic circuit breaker meets various industry standards, ensuring reliable operation and safety.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer Part Number: 0916605

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 240 V AC / 28 V DC
• Frequency Rating: 48/62 Hz
• Connection Type: Thread
• Number of Poles: 1
• Temperature Rating: -30 to 60 degrees Celsius
• Dimensions: 85.5 mm H x 12.3 mm W x 89.5 mm D
• Material: Polyamide 6.6
• Mounting Type: DIN Rail
• Standards/Approvals: CSA C22.2 NO 235, EN 60934, UL 1077
