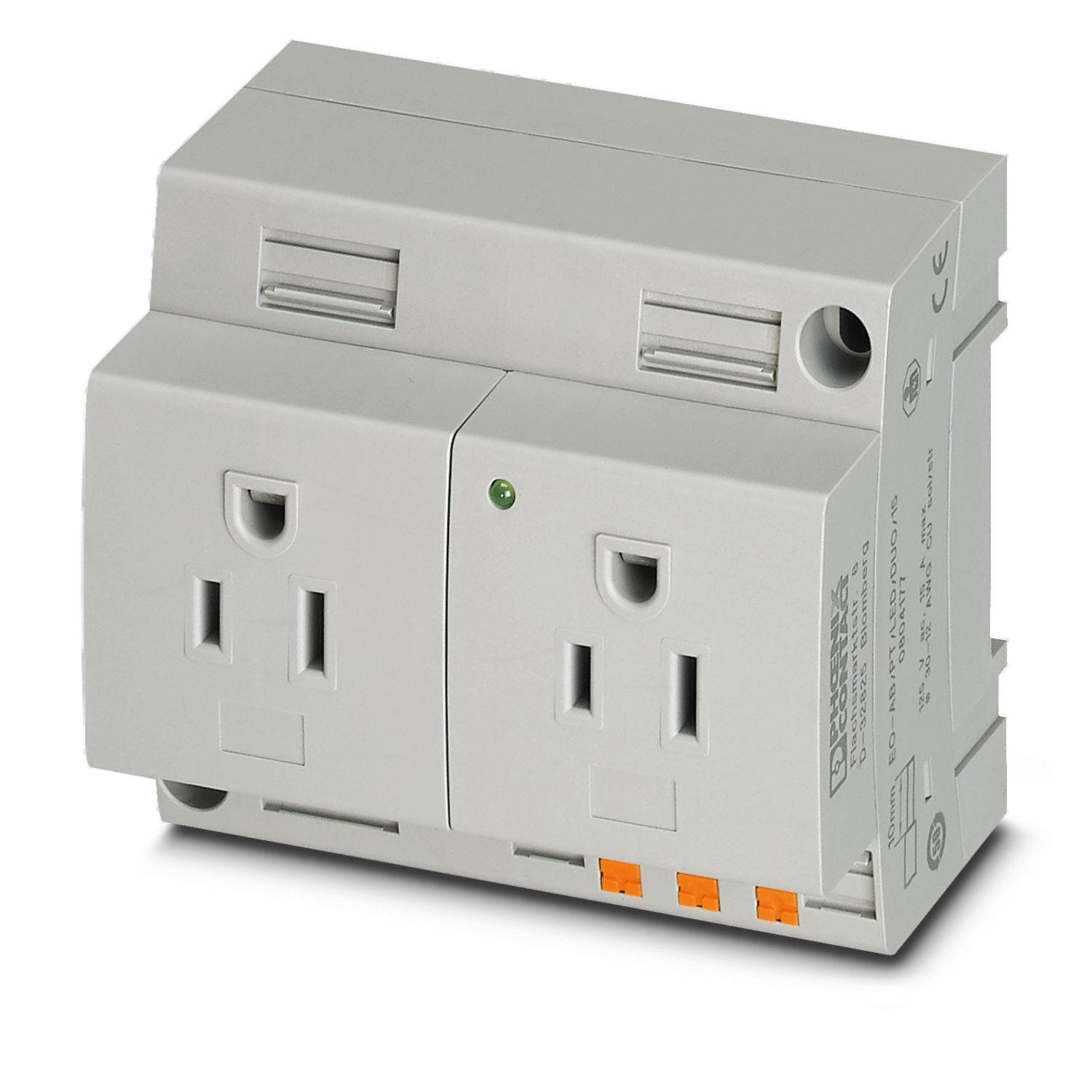

Phoenix Contact 0804177 EO-AB/PT/LED/DUO/15 Double Socket

Product Description

The Phoenix Contact EO-AB/PT/LED/DUO/15 double socket is a reliable electrical connection solution. Its model number is 0804177. It has a light indicator and a pin connector pattern type AB 15A. The connection method is push-in spring. This socket operates at a nominal voltage of 125 V AC at 60 Hz and a nominal current of 15 A. Installation can be done on a DIN rail or directly.

• Double socket with a light indicator
• Push-in spring connection method
• Complies with UL 508 and IEC 60884-1 standards

Product Highlights

This double socket is suitable for applications in both the USA and Canada.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• MPN: 0804177

Technical Specifications

• Mounting Type: DIN rail or direct mounting
• Nominal Voltage: 125 V AC (60 Hz)
• Nominal Current: 15 A
• Color: gray
• Standards: UL 508, IEC 60884-1
• Type of Plug: Pin connector pattern type AB 15A
• Number of Receptacles: 2
• Degree of Protection: IP20
• Width: 90 mm
• Height: 75 mm
• Depth: 59.2 mm
• Flammability Rating: According to UL 94 V0
• Ambient Temperature (operation): -5 °C to 40 °C
• Internal Cylindrical Gage: A3B3
