Product Description

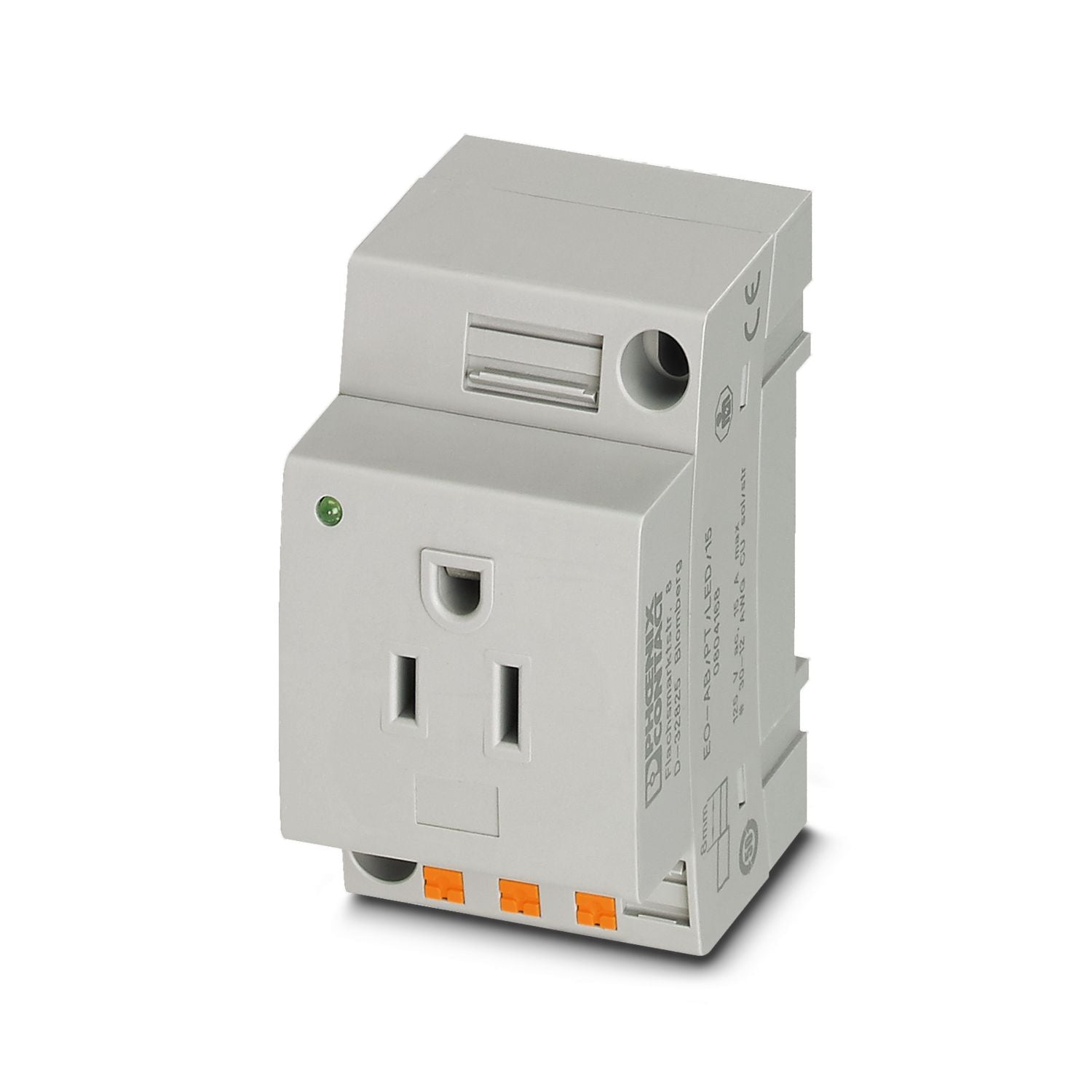

The PHOENIX CONTACT 0804168 is a female socket made of polyamide, designed for AC power entry. It supports a pin connector pattern type AB with a 15A push-in spring connection. This socket is suitable for mounting on a DIN rail in the service interface or for direct mounting. It is compliant with UL 508 standards and has a flammability rating of V0.

  • Standard
  • UL 508 compliant
  • Flammability Rating V0

Product Highlights

This socket features a light indicator and push-in spring connection, ideal for DIN rail or direct mounting applications.

Product Information

Standard Information

  • Brand: PHOENIX CONTACT
  • Manufacturer Part Number: 0804168
  • Country of Origin: Poland
Technical Specifications
ECCN
EAR99
Country of Origin
Poland
MPN
0804168
Note
The nominal current does not apply for fuse versions. In this case, the current is determined by the fuse.
Maximum power dissipation for nominal condition
1.8 W
Connection method
Push-in spring connection
Stripping length
10 mm
Internal cylindrical gage
A3, B3
Conductor cross-section rigid
0.5 mm² ... 4 mm²
Cross section AWG
24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible
0.25 mm² ... 2.5 mm²
Conductor cross-section, flexible [AWG]
24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
1 mm² ... 2.5 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)
1 mm² ... 2.5 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)
0.25 mm² ... 2.5 mm²
Nominal current
15 A
Nominal voltage
125 V AC (60 Hz)
Status display
yes
Width
45 mm
Height
75 mm
Depth
58.9 mm
Depth on NS 35/7,5
60 mm
Depth on NS 35/15
67.5 mm
Hole diameter
4.4 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Insulating material
PA
Contact material
CuZn38
Static insulating material application in cold
-60 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Type of plug
Pin connector pattern type AB 15A
Specification
DIN EN 50155 (VDE 0115-200):2022-06
Spectrum
Long life test category 2, bogie-mounted
Frequency
f1 = 5 Hz to f2 = 250 Hz
ASD level
6.12 (m/s²)²/Hz
Acceleration
30g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Pulse shape
Half-sine
Shock duration
18 ms
Number of shocks per direction
3
Degree of protection
IP20
Ambient temperature (operation)
-5 °C ... 40 °C (according to IEC 60884-1, average value over a period of 24 hours not above +35°C)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)
30 % ... 70 %
Standards/regulations
UL 508, IEC 60884-1
Mounting type
for mounting on a DIN rail in the service interface or direct mounting
UNSPSC Code
39120000
Brand
PHOENIX CONTACT
Number of Positions
3
Material Flammability Rating
UL94 V-0
Approval Agency
cUL, cULus, UL
Connector Type
Receptacle, Female Sockets
Current Rating (Amps)
15A
Voltage Rating
125VAC
Termination
Push In
Features
LED Indicator
