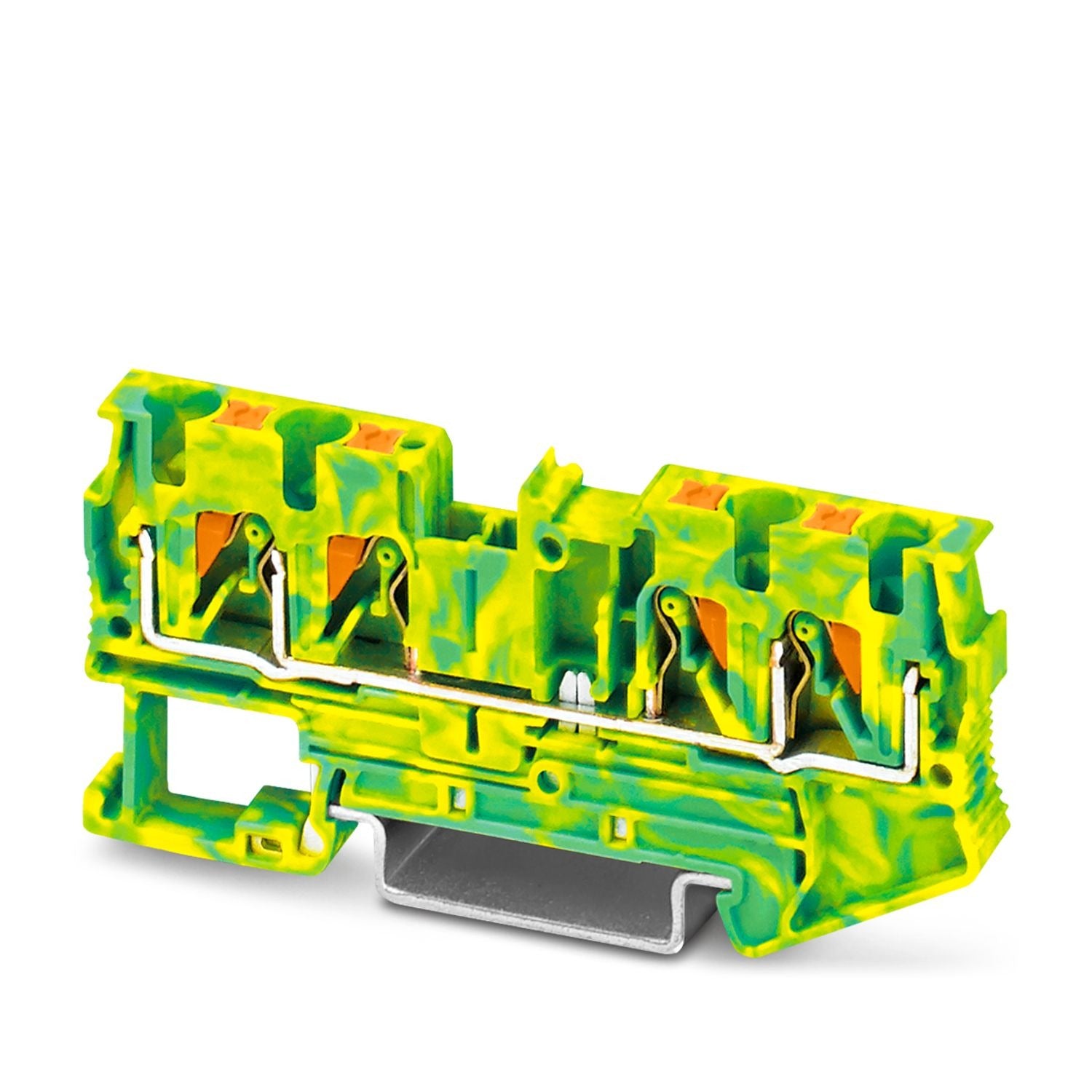

Phoenix 3211809 PT 4-Quattro-PE Protective conductor terminal block 4-position (PHNX321180)

Product Description

The Phoenix 3211809 is a PT 4-Quattro-PE protective conductor (PE) terminal block with push-in connection technology and four connections for DIN-rail mounting. It supports conductor cross-sections from 0.2 mm² to 6 mm² (rigid) and 0.2 mm² to 4 mm² (flexible), fits NS 35/7.5 and NS 35/15 rails, and provides a low-resistance grounding path with rated impulse voltage of 8 kV.

• Push-in, tool-free connection; supports AWG 24–10 and ferrules
• Conductor range: 0.2–6 mm² (rigid), 0.2–4 mm² (flexible); stripping length 10–12 mm
• DIN-rail mounting NS 35/7.5 and NS 35/15; compact dimensions (77.0 × 6.2 × 35.3 mm)

Product Highlights

4-position protective earth terminal block, push-in connection, 0.2–6 mm² conductor range, DIN-rail mountable, IEC 60947-7-2 compliant

Product Information

Standard Information

• Brand: PHOENIX
• Manufacturer Part Number: 3211809
• Country of Origin: CN
