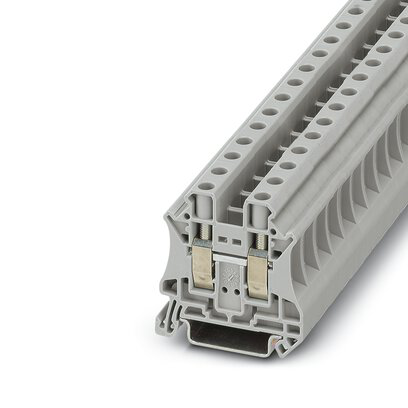

Phoenix 3044160 1000 Volt 57 Amp 20 to 6 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block

Product Description

The Phoenix Contact 3044160 is a feed-through terminal block designed for electrical connections. It supports a nominal voltage of one thousand volts and a current of fifty-seven amps. This terminal block accommodates wire sizes from twenty to six American Wire Gauge (AWG). The screw connection method ensures secure and reliable fixture.

• Use with solid and stranded conductors
• Compatible with a variety of conductors without ferrules
• DIN rail mounting for easy installation

Product Highlights

This block is ideal for various applications, especially in control and automation settings. It is suitable for railway industry uses and meets several international standards.

Product Information

Standard Information

• Brand: Phoenix
• Color: Gray

Technical Specifications

• Voltage: 1000 Volt
• Amperage: 57 Amp
• Connection Type: Screw
• Conductor Size: 0.5 mm to 16 mm
• Width: 10.2 mm
• Height: 46.9 mm
• Length: 47.7 mm
• Mounting Type: DIN Rail
