Description

Product Description

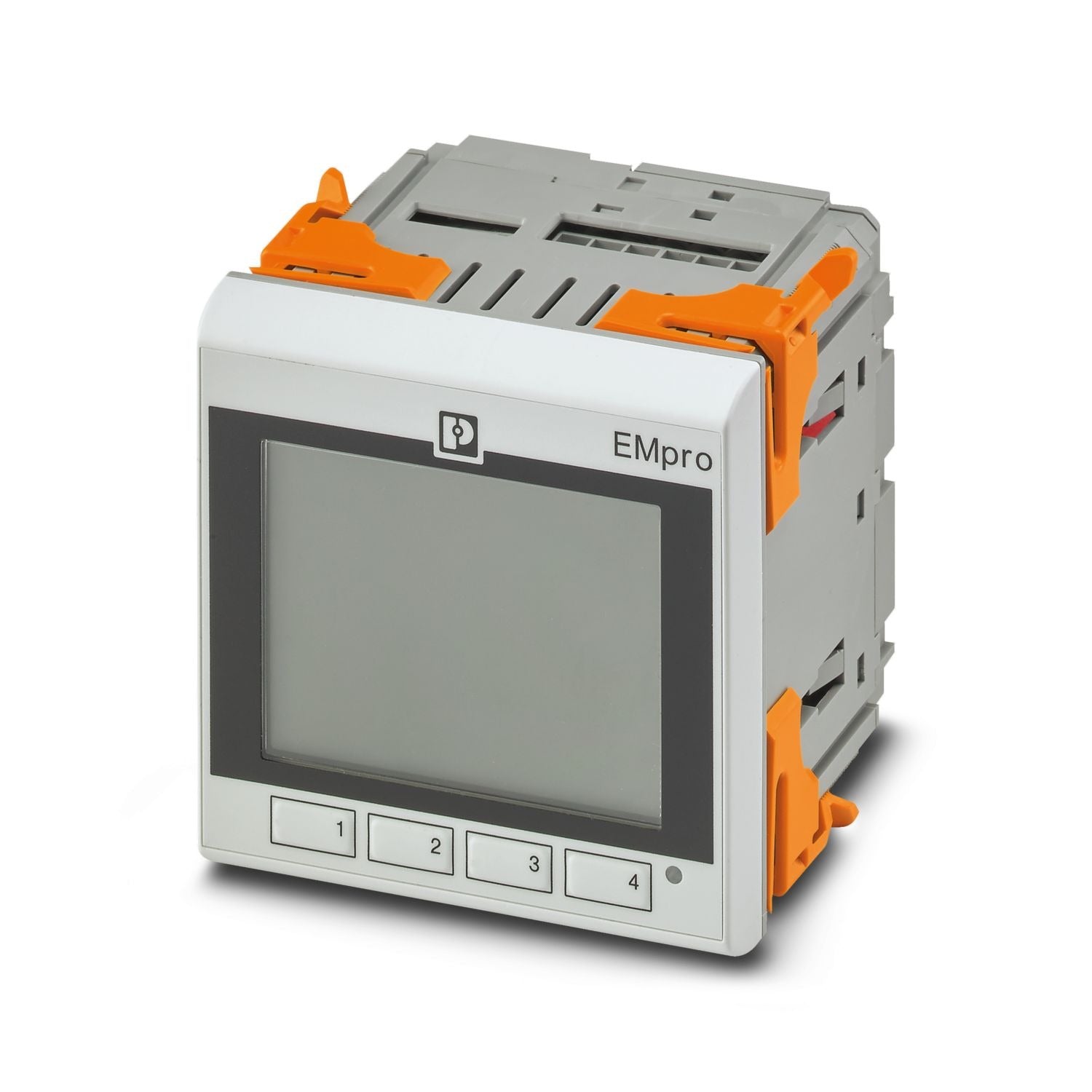

The Phoenix 2908302 is an EMpro energy measuring device (EEM-MA771-EIP) for low-voltage installations up to 690 V with direct Rogowski connection and integrated Modbus/TCP and EtherNet/IP communication. It provides true RMS measurement with harmonic acquisition to the 63rd harmonic, a backlit multi-line LCD for local readout, and supports supply voltages from 100 V AC to 400 V AC (±20%) or 150 V DC to 250 V DC (±20%).

  • Direct Rogowski connection; voltage input range 18 V AC … 690 V AC (phase/phase) and current measurement ≤ 400 A (level 1) or ≤ 4000 A (level 2).
  • Integrated communications: Modbus/TCP, REST, EtherNet/IP via RJ45; transmission speeds 10 Mbps and 100 Mbps.
  • Backlit multi-line LCD display; true RMS measurement, harmonic acquisition up to 63rd harmonic; panel/front horizontal mounting (96 × 96 × 89.8 mm).

Product Highlights

EMpro energy meter with direct Rogowski input, Modbus/TCP and EtherNet/IP, true RMS and harmonic measurement, panel mount 96×96×89.8 mm.

Product Information

Standard Information

  • Brand: PHOENIX
  • Manufacturer Part Number: 2908302
  • Country of Origin: DE
Technical Specifications
Brand
PHOENIX
Manufacturer Part Number
2908302
Product Name
EEM-MA771-EIP
Product Type
Energy measuring device
Product Family
EMpro
Catalog ID
2908302
Product SKU
2867830600.04
GTIN
4055626369051
Country of Origin
DE
Packing Unit
1 pc
Sales Package Quantity
1
Input Voltage
100 V AC ... 400 V AC (±20%), 150 V DC ... 250 V DC (±20%)
Power Consumption
≤ 4 W
Maximum Power Dissipation
10 VA
Measuring Principle
True r.m.s. value measurement
Frequency Measuring Range
45 Hz ... 65 Hz
Voltage Input Range (direct)
18 V AC ... 690 V AC (phase/phase); 11 V AC ... 400 V AC (phase/neutral)
Current Measurement
≤ 400 A (level 1); ≤ 4000 A (level 2)
Voltage Measurement Precision
0.2 %
Current Measurement Precision
0.5 %
Power Precision
1 %
Real Energy Class (IEC 62053-21)
Class 1
Reactive Power Class (IEC 62053-23)
Class 2
Communication Protocols
Modbus/TCP, REST, EtherNet/IP
Network Interface
RJ45
Transmission Speed
10 Mbps, 100 Mbps
Connection Method
Screw connection
Screw Thread
M3
Stripping Length
8 mm
Conductor Cross-Section (rigid)
0.2 mm² ... 6 mm²
Conductor Cross-Section (flexible)
0.2 mm² ... 4 mm²
Tightening Torque
0.5 Nm ... 0.6 Nm
Digital Inputs
1 (24 V DC signal, IEC/EN 61131-2 type 3)
Digital Outputs
1 (IEC/EN 61131-2 type 3, ≤ 100 mA, 24 V DC)
Electrical Isolation Test Voltage
4 kV AC (50 Hz, 60 s)
Overvoltage Category
III (300 V AC) / II (600 V AC)
Insulation
Reinforced insulation
Measuring Category
III (300 V AC) / II (600 V AC)
Ingress Protection
IP20 (Housing); IP54 (Display with EEM-MA-IP accessory)
Ambient Temperature (operation)
-10 °C ... 55 °C
Storage Temperature
-40 °C ... 70 °C
Altitude
≤ 2000 m
Mounting
Panel mount, front panel installation, horizontal
Dimensions (mm)
Width 96 mm, Height 96 mm, Depth 89.8 mm (installation depth 74.8 mm)
