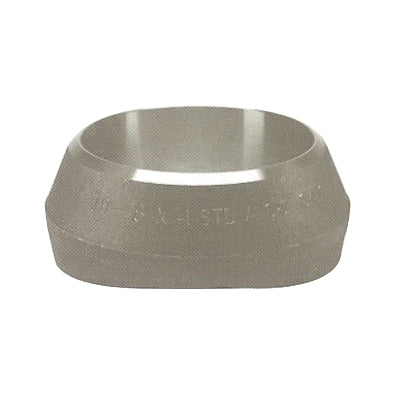

Phoenix 12832630 Trans-O-Con Class 3000 SCH STD Forged Carbon Steel Welded Outlet 4 x 10 - 8 in

Product Description

The Phoenix 12832630 is designed for robust applications requiring a reliable welded outlet. This product features a trans-o-con design that ensures maximum pipe strength and unrestricted fluid flow. It is an ideal choice for welding tees and both reinforced and non-reinforced branches.

• Trans-O-Con design for 100% pipe strength
• Fast installation without the need for cutting or shaping
• Compatible with multiple standards and certifications

Product Highlights

The welded outlet is made from carbon steel and offers low initial costs with easy alignment for installation.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 4 x 10 - 8 in
• Connection Type: Buttweld
• Inside Diameter: 4.026 in
• Item Name: Welded Outlet
• Length: 3 in
• Material: Carbon Steel
• Method of Manufacturer: Forged
• Pressure Class: Class 3000
• Schedule: STD
• Sub Brand: Trans-O-Con
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
• Standards/Certifications: ASME SA105, B16.11, B16.9, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, B1.20.1, MSS SP-97, SP-25, NACE MRO175
