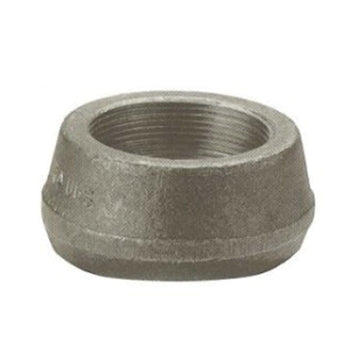

Phoenix 12810650 Threadolet Class 3000 (3/8 x 36 - 3/4 in)

Product Description

The Phoenix 12810650 is a Threadolet designed for high strength and efficiency in piping systems. It features Trans-O-Con technology that ensures 100% pipe strength and facilitates unrestricted fluid flow, making it an ideal choice for various applications.

• Trans-O-Con design for enhanced pipe strength
• Fast and straightforward installation
• Suitable for use on welding tees and reinforced branches

Product Highlights

This product provides exceptional quality and performance with a low initial cost, adhering to standards such as ASME and ASTM.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 3/8 x 36 - 3/4 in
• Connection Type: FNPT
• Inside Diameter: 0.562 in
• Item Name: Threadolet
• Length: 0.813 in
• Material: Carbon Steel
• Pressure Class: Class 3000
• Standards/Certifications: ASME SA105, B16.11, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, B1.20.1, MSS SP-97, SP-25, NACE MRO175
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
