Phoenix 1205530 Dryrod Ii Type 15 Electrode Oven 600W

Product Description

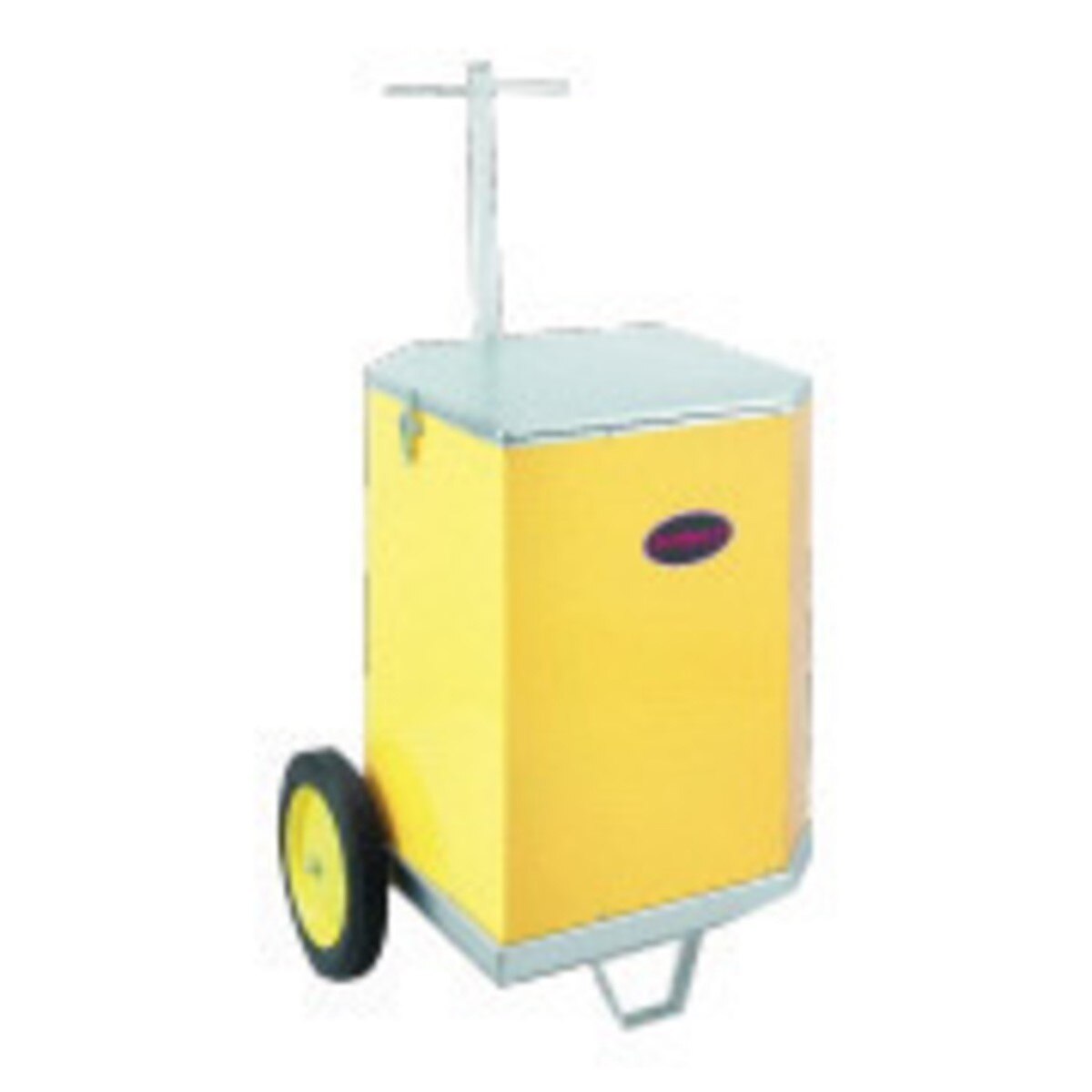

The PHOENIX 1205530 is a Type 15 vertical electrode oven designed to condition and store low-hydrogen welding electrodes in the field. Running at 600 watts on 120 or 240 volts via a selector switch, it delivers even, continuous heat through a wire-wrap heating element to protect electrodes from the time of unpacking through active use. The unit holds up to 150 pounds of electrodes and features an adjustable thermostat for on-site temperature control. A powder-coat steel body, insulated lid with spring latch, and heavy-duty wheels with a pull handle make this oven suitable for demanding job-site conditions.

The 1205530 is intended for professional welding operations where low-hydrogen electrode conditioning is required before and during welding procedures. The Type 15 configuration is a portable, vertical-style oven suited for field use on fabrication sites, pipeline work, structural steel projects, and industrial maintenance jobs. The safety-yellow exterior increases visibility on crowded or high-traffic work sites. A 10-foot cord with locking power inlet module provides a fixed connection and accommodates alternative cord sets for flexible site power configurations.

Key Features

• Wire-wrap heating element delivers even, continuous heat for full electrode protection from unpacking to use
• Adjustable thermostat with 120/240 volt selector switch for field voltage flexibility
• 150-pound electrode capacity supports high-volume welding operations
• Heavy-duty wheels and pull handle for practical job-site portability
• Spring-latch insulated lid and body-and-lid insulation minimize heat loss during transport
• Safety-yellow powder-coat finish improves field visibility and resists weathering and corrosion
• Locking 10-foot cord and power inlet module provide a fixed, secure connection to the oven

Compatibility

Designed as an OEM-style portable electrode oven for field conditioning and storage of low-hydrogen welding electrodes in professional welding applications.

Installation Notes

Installation and operation should be performed by qualified welding professionals familiar with electrode handling requirements and applicable electrical codes. Verify site voltage before connecting and use the 120/240 volt selector switch accordingly. Ensure the power source is de-energized before connecting or disconnecting the cord at the locking inlet module. Follow electrode manufacturer recommendations and applicable welding procedure specifications for preheat temperature and hold time.

Technical Specifications

• Wattage: 600 watts
• Voltage: 120/240 volts (selectable)
• Electrode Capacity: 150 pounds
• Oven Type: Type 15 Vertical
• Body Material: Steel with powder-coat finish
• Cord Length: 10 feet
• Color: Safety Yellow

Standard Information

• Brand: PHOENIX
• Manufacturer Part Number: 1205530
