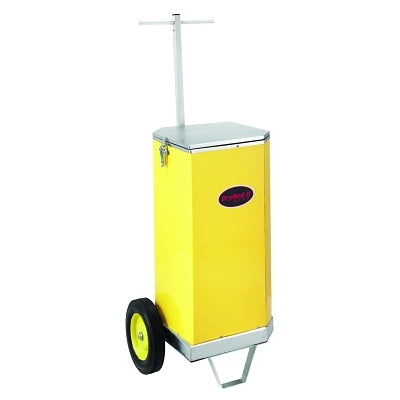

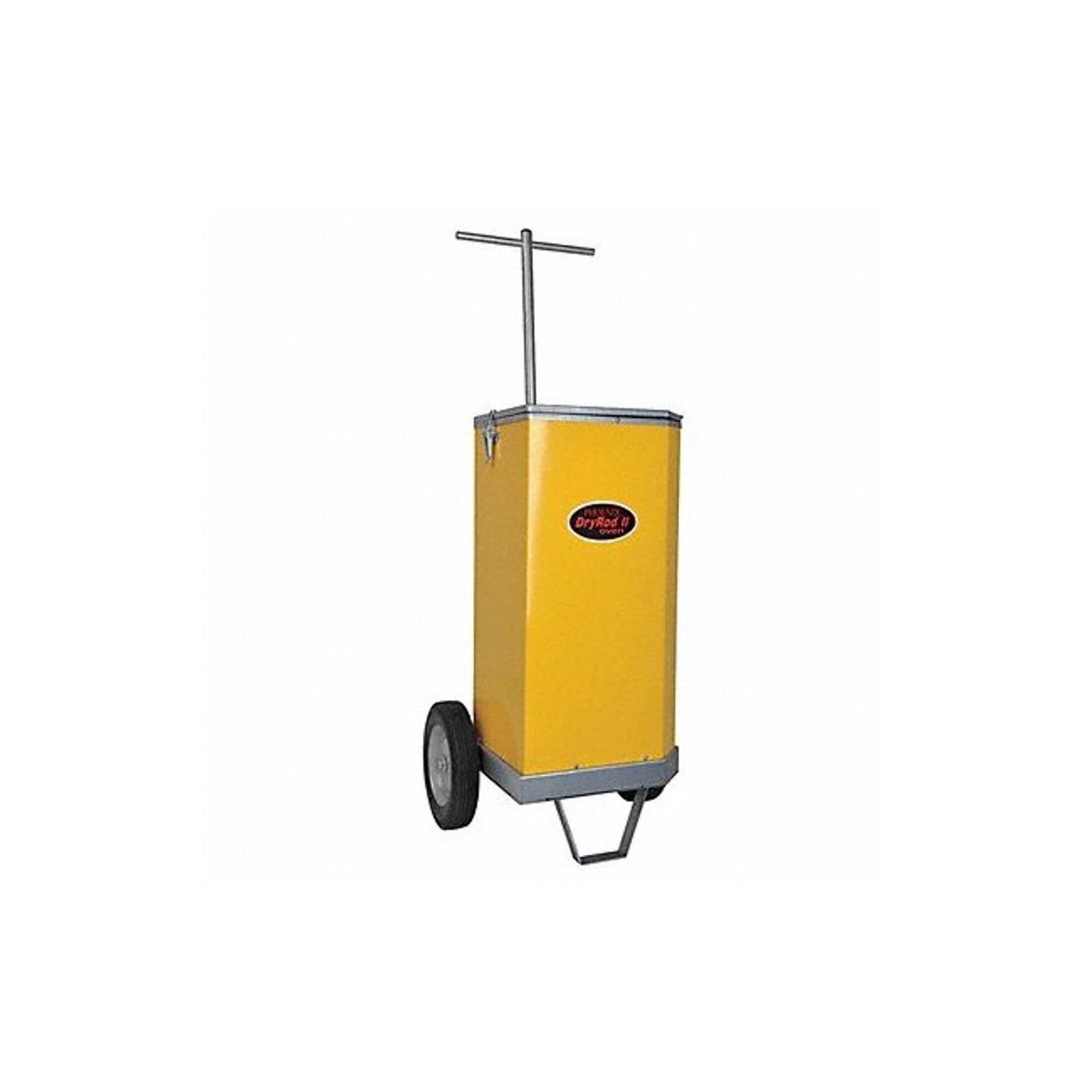

Phoenix 1205520 Type 5 120/240V 50LB Dry Rod II Oven

Product Description

The Phoenix 1205520 Type 5 Dry Rod II Oven is designed to stabilize up to 50 lbs of electrodes. It features a wire-wrap heating element that provides evenly-distributed, constant heat to ensure full protection of the electrodes. The oven's chamber can hold one 50 lb can of electrodes with additional space for loose rods.

• Up to 50 lbs of electrodes can be stabilized simultaneously
• 120/240V voltage selector switch for flexibility
• Large rubber wheels for easy transport

Product Highlights

This oven features a durable steel body and a tough powder-coat finish. It is equipped with a spring-latch to secure the insulated lid and a removable divider providing four storage sections. The thermostat is adjustable, ensuring correct temperature applications between 100 to 300 degrees Fahrenheit. It includes a power inlet module to easily accommodate alternative cord sets. The indicator light signifies when the oven is powered on.

Product Information

Standard Information

• Brand: Phoenix
• MPN: 1205520

Technical Specifications

• Electrode Capacity: 50 lbs (25 kg)
• Heating Element: 300 W Wire Wrap
• Voltage: 120/240V AC
• Temperature Range: 100-300 F (38-149 C)
• Thermostat: Adjustable Thermostat with High-Limit Switch
• Insulation: 1 1/2 inches (38 mm) Fiberglass
• Chamber Size: 8 inches diameter x 19 3/4 inches deep (20.3 cm diameter x 50.2 cm deep)
• Exterior Dimensions (W x D x H): 14 1/8 inches x 16 3/8 inches x 27 1/8 inches (35.9 cm x 41.6 cm x 68.9 cm)
• Net Weight: 43 lbs (19.5 kg)
