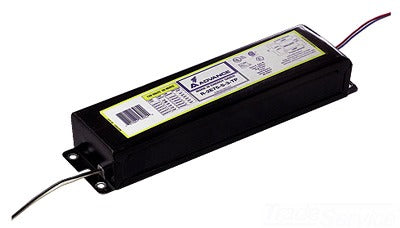

Philips V2S110TPI Fluorescent Electromagnetic Ballast 277 V

Product Description

The Philips V2S110TPI is a fluorescent electromagnetic ballast designed for high-output applications. This ballast operates at two to three lamps with a voltage rating of two hundred seventy-seven volts. It is suitable for various lamp types, including F72T12/HO and F96T12/HO.

• Operates with a power factor of 0.96 to 0.98
• Features a rapid starting type for reliable performance
• UL and CSA approved for safety compliance

Product Highlights

This ballast is built for efficiency and reliability in lighting systems. It helps to reduce premature lamp failures and ensures optimal lamp starting under low voltage conditions.

Product Information

Standard Information

• Manufacturer: Philips Lighting
• UPC: 781087107522

Technical Specifications

• Approval: UL, CSA
• Ballast Factor: 0.93/0.98
• Circuit Type: High Output, HPF
• Frequency Rating: 60 Hz
• Input Current: 0.75/0.79/0.9 Ampere
• Input Power: 201/210/245 W
• Input Voltage: 277 V
• Lamp Type: F72T12/HO, F96T12/HO, F96T12/HO/ES
• Lamp Wattage: 85/95/110 W
• Maximum THD: 20/25 Percent
• Minimum Starting Temperature: -20/60 Deg F
• Number Of Lamps: 2
• Output Current: 800/840 Milliampere
• Size: 11.75 inches x 3.19 inches x 2.63 inches
• Starting Type: Rapid
• Type: Electromagnetic
