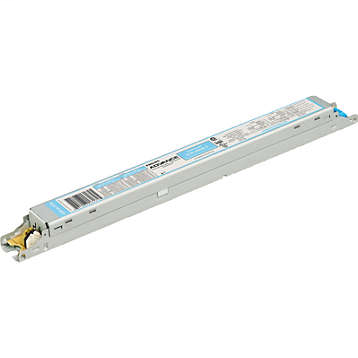

Philips Lighting ICN2S54T35I Advance ICN2S54T35I 120 to 277 VAC 50/60 Hz 54 W 2-Lamp T5 Electronic Ballast

Product Description

Philips Lighting ICN2S54T35I is an electronic ballast designed for operating two lamps of T5 size at voltages between 120 and 277 VAC. This ballast supports a frequency of 50/60 Hz and a maximum wattage of fifty-four watts per lamp. It is suitable for environments where temperatures may reach up to ninety degrees Celsius. The design ensures optimal performance and energy efficiency.

• Suitable for 120 to 277 VAC operation
• Designed for 2-lamp T5 fluorescent fixtures
• Programmed start feature

Product Highlights

This ballast offers features like low total harmonic distortion and a high power factor, making it an efficient choice for lighting solutions.

Product Information

Standard Information

• Brand: Philips Lighting
• MPN: ICN2S54T35I

Technical Specifications

• Input Voltage: 120-277 V
• Input Wattage: 120-117 W
• Frequency: 50/60 Hz
• Lamp Wattage: 54 W
• Power Factor: 0.98
• Ballast Type: Electronic Fluorescent
• Wire Size: 18 AWG
• Number of Lamps: 2
