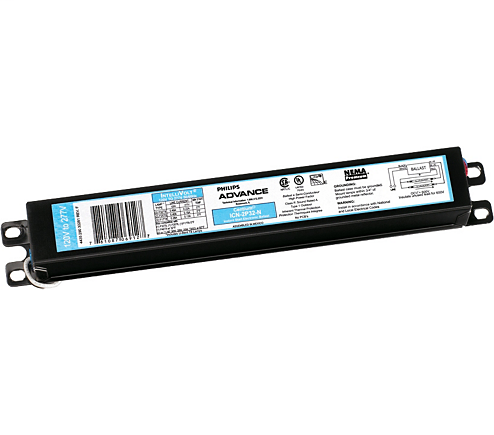

Philips ICN4P32N35I SIG 109132 120-277V ELEC BAL Replacement MPN

Product Description

The Philips ICN4P32N35I is an electronic linear fluorescent ballast suitable for F32T8 lamp types. This ballast operates efficiently within a voltage range of one hundred twenty to two hundred seventy-seven volts.

• Power factor: 0.98
• Suitable for three or four lamps
• Operating frequency: 50 to 60 Hz

Product Highlights

This ballast features instant start ignition method and operates with a maximum input current of zero point ninety-four amps. It allows for multiple wiring configurations including remote, tandem, and through wiring.

Product Information

Standard Information

• Brand: Philips Lighting
• MPN: ICN4P32N35I

Technical Specifications

• Input Voltage: 120 to 277 V
• Input Power (Nom): 111-111 W
• Rated Lamp Power: 32 W
• Crest Factor (Nom): 1.7
• Input Current (Min): 0.41 A
• Input Current (Max): 0.94 A
• Total Harmonic Distortion: 10 %
• Weight: 0.441 kg
• Housing Material: Metal

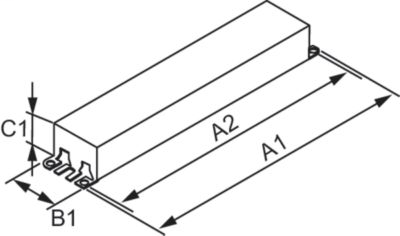

• Housing Dimensions: 9.5 x 1.3 x 1.0 inches
• UL Recognized: No
• Suitable For Outdoor Use: Yes
