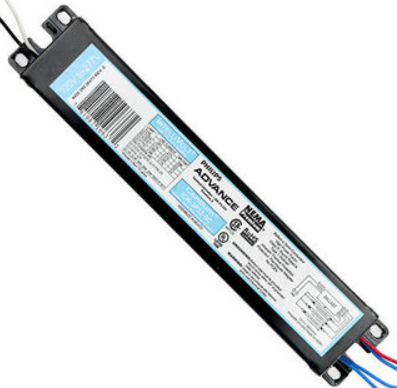

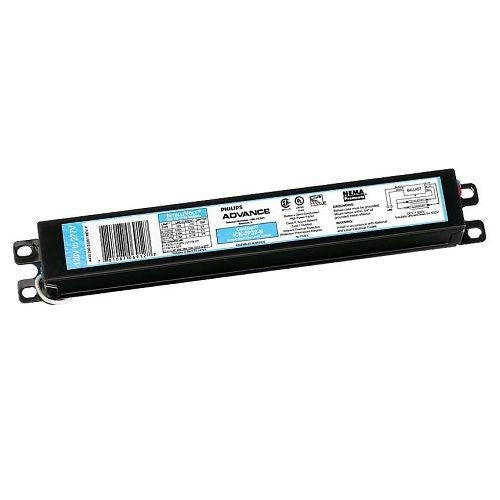

Philips Advance ICN3P32N35I electronic ballast 3 lamp F32T8 120-277V (pack of 10) replaces ICN-2P32-SC

Product Description

The PHILIPS ADVANCE ICN3P32N35I is an electronic ballast designed for fluorescent lamps. It operates with an input voltage of 120 to 277 Volt AC and features an instant starting type. This Centium series ballast supports 3 lamps of type F32T8 with a 32 Watt lamp wattage, and has a 50/60 Hertz frequency rating. It is suitable for general office, institutional, government, health care, and school lighting applications.

• Compatible with energy saving lamps and features lamp striation reduction technology.
• Suitable for new construction and retrofit applications in commercial sectors like offices and healthcare.
• RoHS Compliant with a minimum starting temperature of -18 Deg C.

Product Highlights

Reliable and energy efficient Centium commercial grade specifications.

Product Information

Standard Information

• Brand: PHILIPS ADVANCE
• Manufacturer Part Number: ICN3P32N35I
• Country of Origin: USA

Technical Specifications

• Ballast Type: High Frequency
• Model Series: ICN
• Wiring Type: Parallel
• Certifications: UL, CSA, CEC
• Product Category: Electronic Linear Fluorescent Ballasts
• Compatible Lamp Type: F17T8, F25T8, F32T8, F32T8/ES (25W), F32T8/ES (28W), F32T8 (30W), F40T8, FBO16T8
• Compatible Lamp Style: U-Bent
• Input Power: 82 Watt
• Maximum Total Harmonic Distortion: 15 Percent
• Circuit Type: HPF
• Compatible Lamp Wattage: 17 Watt
• Manufacturer: SIGNIFY ELECTRONICS
• Power Factor: 0.99
• Sub-Category: Fluorescent Electronic Ballast
• Input Current: 0.23 to 0.45 Amp
• Input Voltage: 120 to 277 Volt AC
• Starting Type: Instant
• Ballast Factor: 1.04
• Number of Lamps Supported: 3
• Frequency Rating: 50/60 Hertz
• RoHS Compliant: Yes
• Housing Material: Metal
• Lamp Current Crest Factor: 1.7
• Wire Type: Solid
• Wire Size: 18 AWG
• Minimum Starting Temperature: -18 Deg C
• Maximum Operating Temperature: 70 Deg C
• Application Environment: Indoor, Outdoor
• Light Technology: Fluorescent
• Dimming Capability: Non-Dimmable
• Compatible Lamp Shape Size: T8
• Compatible Lamp Base: G13
• Compatible Lamp Style Shape: Tubular
