Phd Manufacturing S5130 EG Fig 5130 Corner Bracket 90 Degree 4 Holes 4-3/16 in L x 3-1/2 in W

Product Description

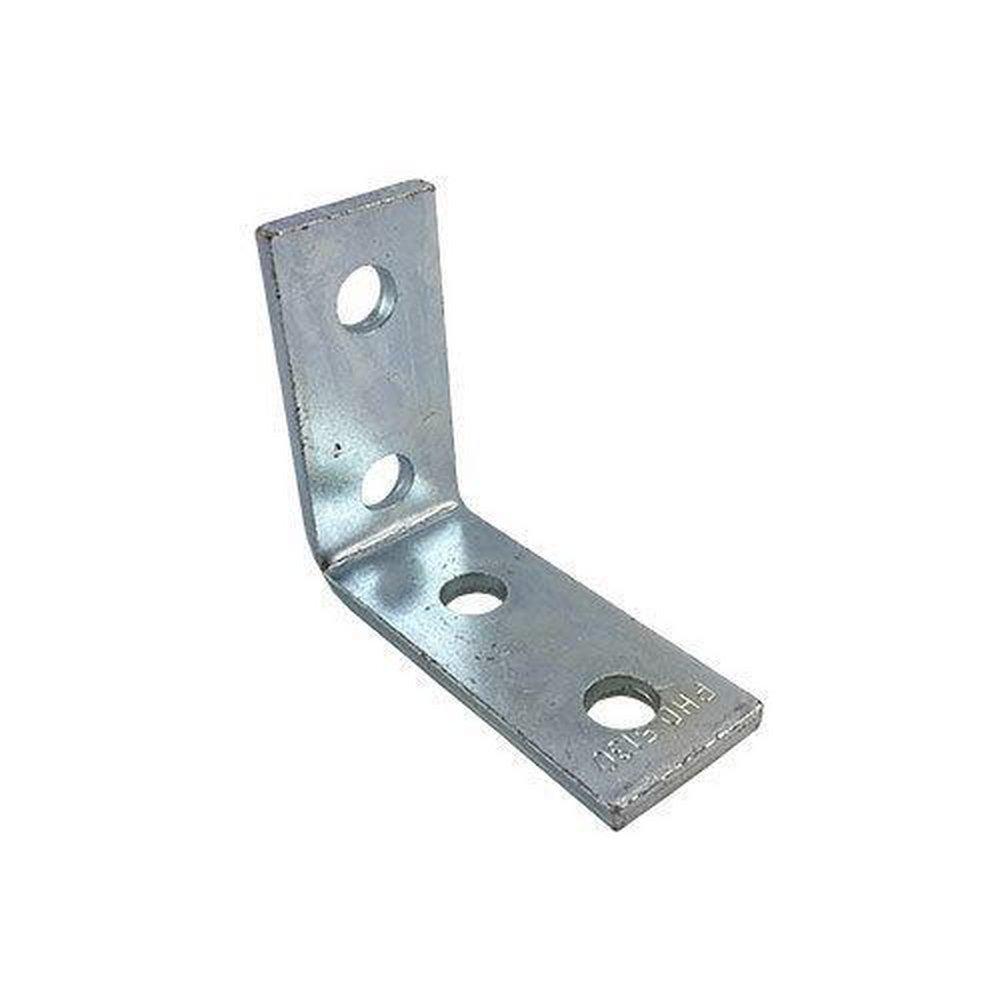

The PHD Manufacturing S5130 EG is an electro galvanized carbon steel corner bracket. This 90-degree fitting features 4 holes and measures 4-3/16 inches in length by 3-1/2 inches in width. It is constructed from 1/4 inch thick material, providing robust support for various installations. Designed for residential applications, this corner angle is suitable for structural connections and framing.

• Constructed from electro galvanized carbon steel for durability and corrosion resistance.
• Features a 90-degree angle with 4 holes, each 9/16 inch in diameter, for secure fastening.

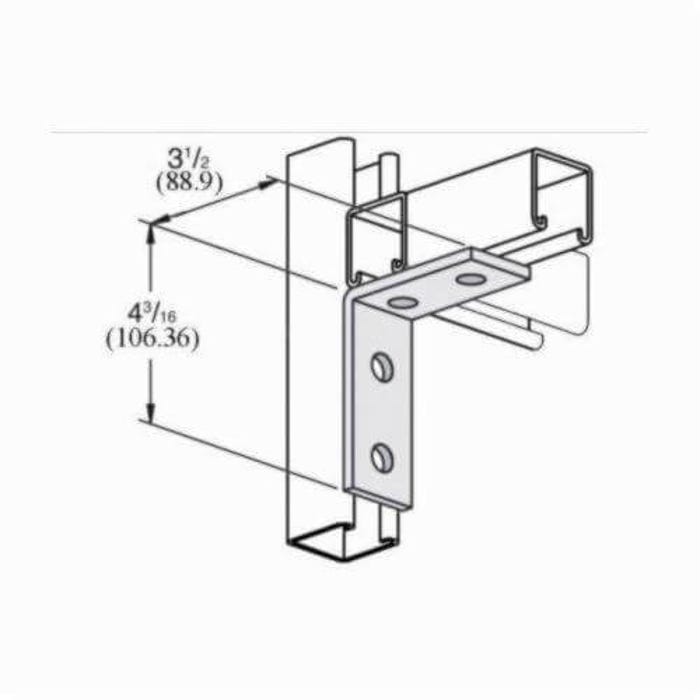

• Measures 4-3/16 inches in length and 3-1/2 inches in width, with 1-7/8 inch hole spacing.

Product Highlights

Durable 90-degree corner bracket made from electro galvanized carbon steel, ideal for residential structural support.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: S5130 EG

Technical Specifications

• Brand: PHD Manufacturing
• Manufacturer Part Number: S5130 EG
• Manufacturer: PHD Manufacturing
• Product Type: Corner Bracket
• Series: Fig 5130
• Material: Carbon Steel
• Coating: Electro Galvanized
• Angle Type: 90 Degree
• Number of Holes: 4
• Length: 4-3/16 in
• Width: 3-1/2 in
• Hole Diameter: 9/16 in
• Hole Spacing on Center: 1-7/8 in
• Hole Spacing from End: 13/16 in
• Material Dimensions: 1/4 x 1-5/8 in
• Weight: 0.78 lb
• Application: Residential
