Phd Manufacturing S2508 Gg Strut Clamp with Cushion, 1-1/4 In, 75 Lb Load, 1-3/8 In Od

Product Description

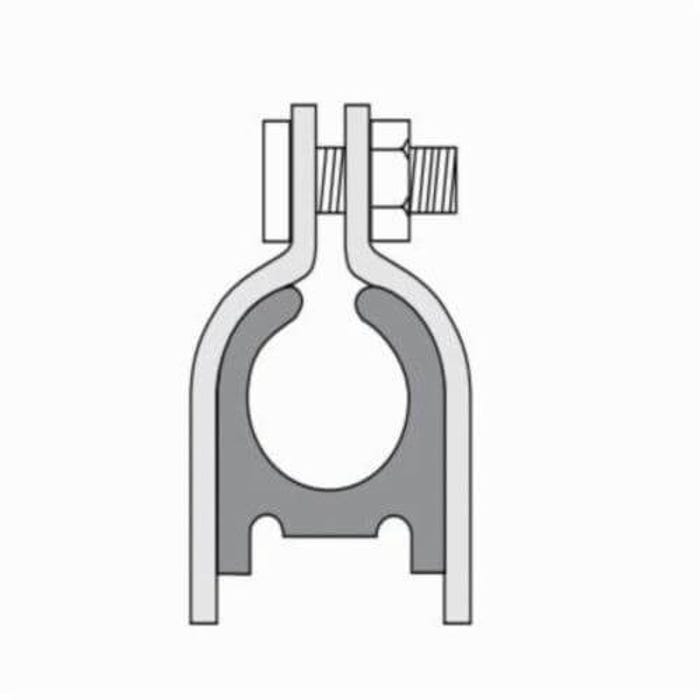

The PHD MANUFACTURING S2508 GG is a strut clamp from the FIG 2508 Series, designed for tube to strut applications. Constructed from carbon steel with a Western Gold finish, it supports a 75 lb load. The clamp includes a multi-Flex TES A9110 EV1 black cushion, and is suitable for temperatures ranging from -65 to 275°F.

• Nominal size: 1-1/4 in
• Load capacity: 75 lb
• Outside diameter: 1-3/8 in

Product Highlights

This strut clamp is made from carbon steel and features a black cushion, ideal for providing secure support in various strut applications.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: S2508 GG

Technical Specifications

• Manufacturer Part Number: S2508 GG
• Manufacturer: PHD Manufacturing
• Brands: PHD
• Width (in): 1.34
• Height (in): 1.375
• Nominal Size: 1-1/4 in
• Load Capacity: 75 lb
• Material: Carbon Steel
• Outside Diameter: 1-3/8 in
• Temperature Rating: -65 to 275 deg F
• Package Quantity: 1/Each
• Finish: Western Gold
• Nominal Pipe Conduit Size: 1-3/8 in
• Outer Diameter: 1-3/8 Inch
• Standards/Approvals: ANSI/MSS SP-58 Type 61 Specified|ANSI/MSS SP-69 Specified|Federal Specification A-A-1192A Type 61
• Trade Size: 1-1/4 in
• Type: Tube to Strut
• UNSPSC: 31162906
