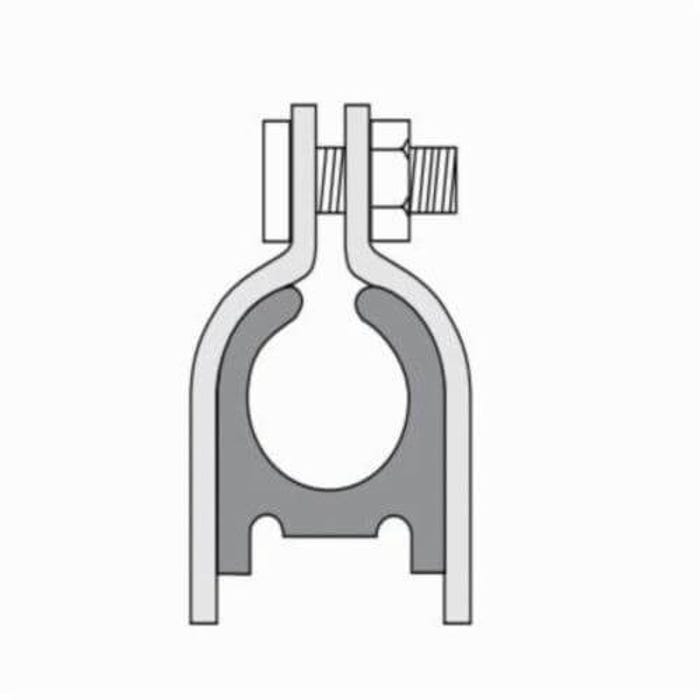

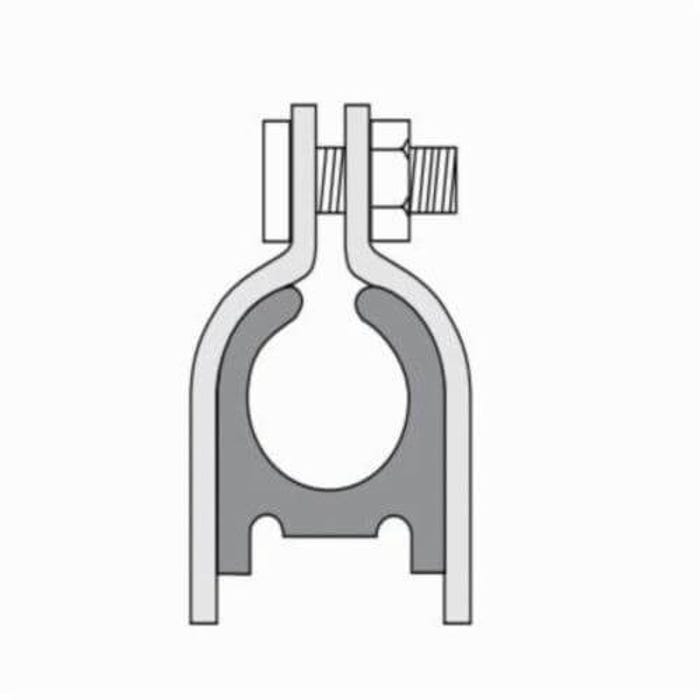

Phd Manufacturing S2507 GG WG Cush Strut Clamp With Cushion 1-1/8 OD

Product Description

The PHD MANUFACTURING S2507 GG is a strut clamp designed for securing 1-1/8 inch outside diameter tubes. This low carbon steel clamp features a cushion for vibration dampening and noise reduction, making it suitable for various industrial and commercial applications. It has a load capacity of 75 lb and is approved by ANSI/MSS SP-58 (Type 61) and Federal A-A-1192A (Type 61) standards, ensuring reliable performance in temperatures ranging from -65 to 275°F.

• Features a cushion for vibration dampening and noise reduction.
• Designed to secure 1-1/8 inch outside diameter tubes.
• Constructed from durable low carbon steel with a 75 lb load capacity.

Product Highlights

A low carbon steel strut clamp with cushion, designed for 1-1/8 inch OD tubes, offering 75 lb load capacity.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: S2507 GG

Technical Specifications

• MPN: S2507 GG
• Model Number: PHD-2507
• Type: Strut Clamp
• Outside Diameter: 1-1/8 in
• Cushion: Yes
• Manufacturer: PHD Manufacturing
• Brand: PHD
• Standard Approvals: ANSI/MSS SP-58 (Type 61), Federal A-A-1192A (Type 61)
• Load Capacity: 75 lb
• Material: Low Carbon Steel
• Temperature Rating: -65 to 275°F
