Phd Manufacturing S2014aeg Ip Pipe Channel Clamp 8 in

Product Description

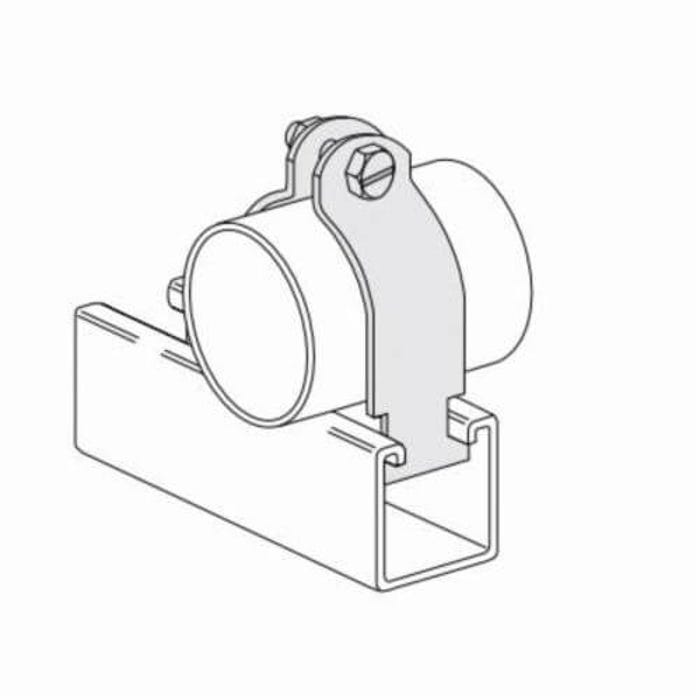

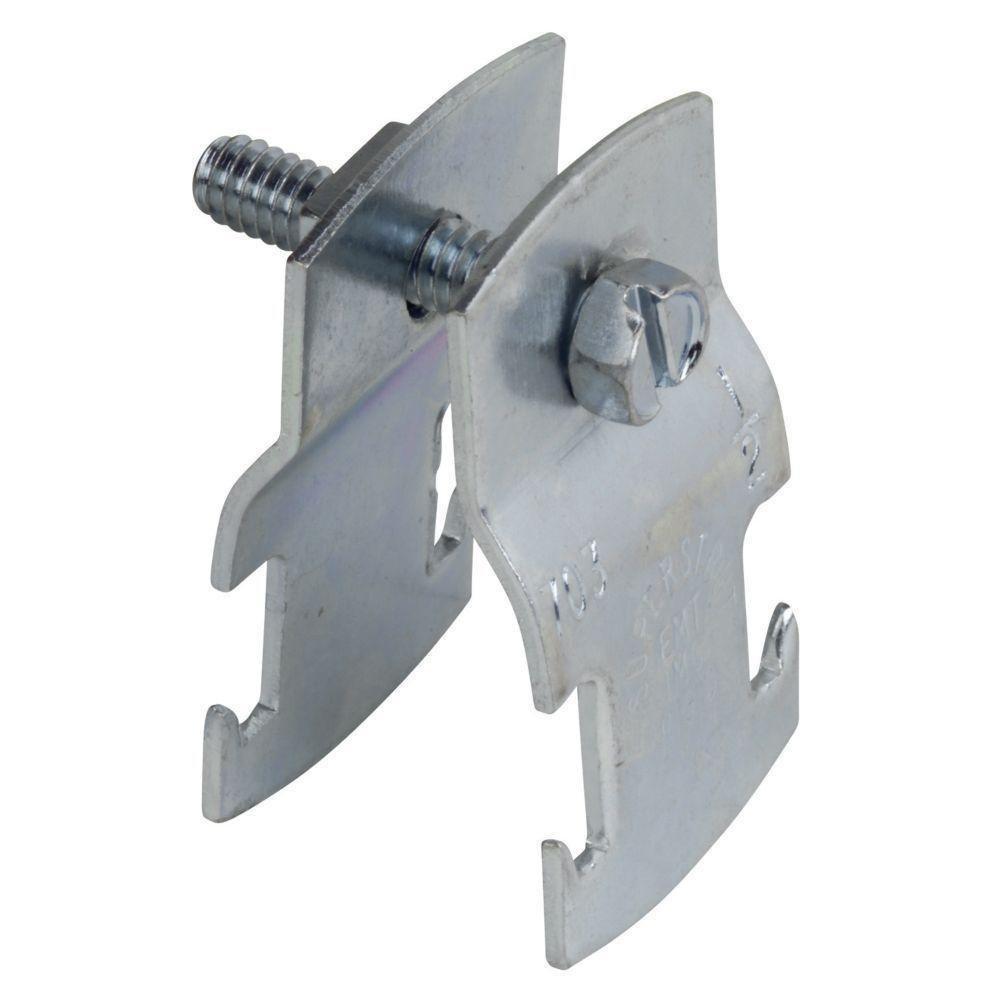

The PHD MANUFACTURING S2014AEG IP Pipe Channel Clamp is designed for strut mount applications. It has a nominal size of 8 inches and a load capacity of 200 lb. Constructed from carbon steel with electrogalvanized finish, it is suitable for various pipe support applications. The clamp's outside diameter is 8-5/8 inches with a thickness of 11 ga.

• Low carbon steel
• 8 in Nominal
• 200 lb Load Capacity

Product Highlights

The PHD IP Pipe Channel Clamp is made of carbon steel with electrogalvanized finish and strut mount.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: S2014AEG

Technical Specifications

• Manufacturer Part Number: S2014AEG
• Manufacturer: PHD Manufacturing
• Brands: PHD
• Width (in): 8.625
• Standard Approvals: ANSI/MSS SP-58 (Type 60), Federal A-A-1192A (Type 60)
• Nominal Size: 8 in
• Load Capacity: 200 lb
• Material: Carbon Steel
• Outside Diameter: 8-5/8 in
• Thickness: 11 ga
• Package Quantity: 1/Each
