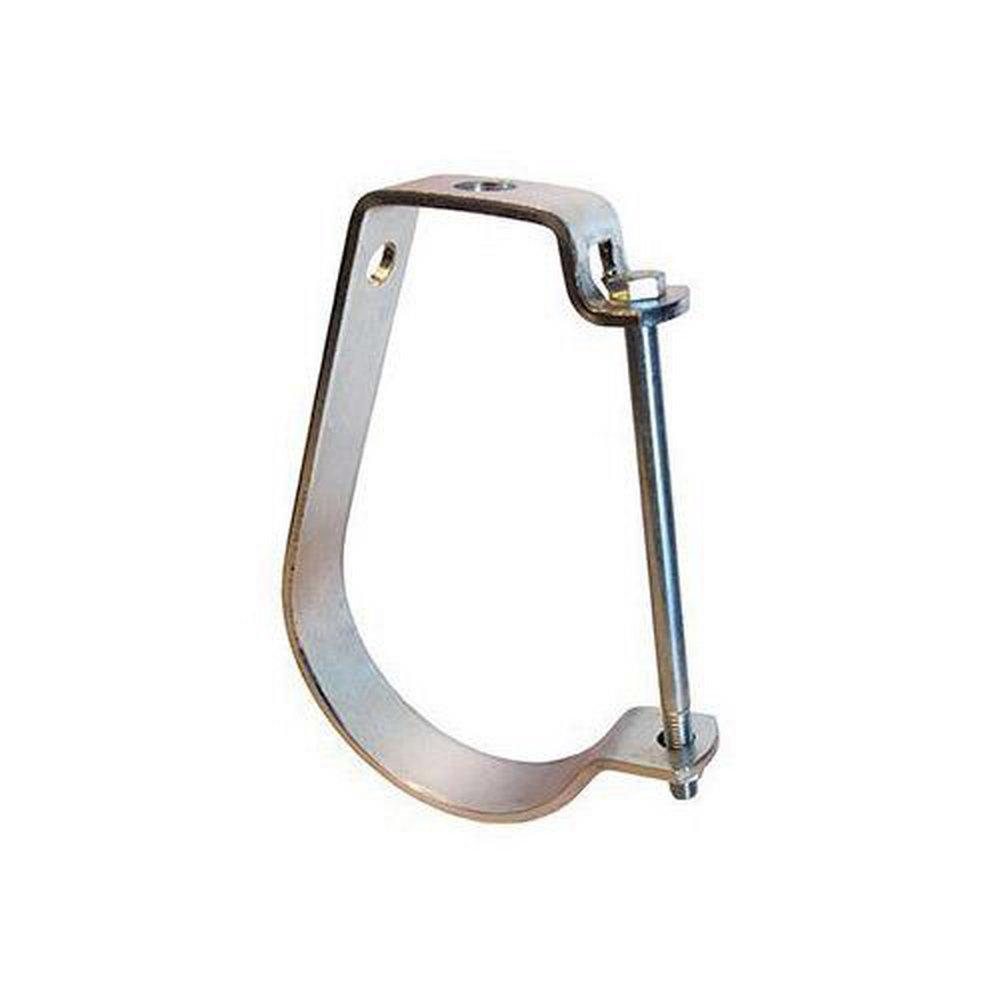

Phd Manufacturing 970 0200EG J-Hanger 2 in Pipe, 3/8 in Rod, 400 lb Load

Product Description

The PHD MANUFACTURING 970 0200EG J-Hanger is designed for the suspension of stationary piping systems. The "T" slot in the hanger permits the side bolt to be installed after installation and setting of pipe. The side hole permits optional wall mounting. It is made of carbon steel with an electro-galvanized finish.

• Features a 1/4 x 3-1/2 in bolt
• Has a 13/32 in hole diameter
• Made of low carbon steel

Product Highlights

This J-hanger is suitable for stationary piping applications and supports a load capacity of 400 lb. It conforms to ANSI SP-58 and ANSI SP-69 standards.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 970 0200EG

Technical Specifications

• Finish: Electro-Galvanized
• Load Capacity: 400 lb
• Material: Carbon Steel
• Pipe Size: 2 in
• Rod Size: 3/8 in
• Series: FIG 970
• ANSI: ANSI SP-58, ANSI SP-69
• Application: Stationary Piping
• Product Type: J Hanger
• Work Load Limit: 400 lb
