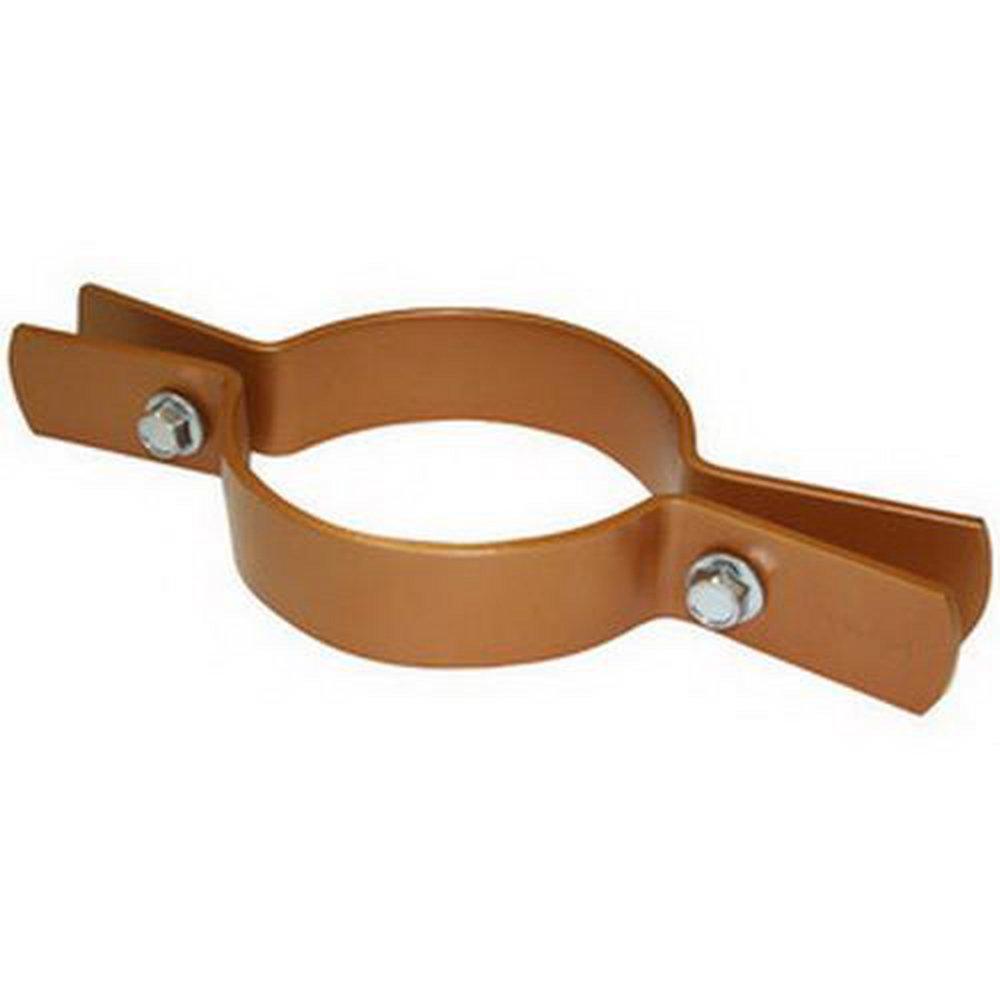

Phd Manufacturing 552 0400CP Figure 552 Riser Clamp 4 in.

Product Description

The PHD MANUFACTURING 552 0400CP Figure 552 Riser Clamp is designed for supporting and stabilizing vertical tubing runs in pipe support and residential applications. Constructed from carbon steel with a copper epoxy coating, this riser clamp is FM Approved and UL Listed. It conforms to ANSI SP-58, ANSI SP-69, MSS SP-58, and MSS SP-69 standards.

• Designed for supporting and stabilizing vertical tubing runs
• Features a copper epoxy coating
• Suitable for pipe support and residential applications

Product Highlights

The PHD MANUFACTURING 552 0400CP Riser Clamp provides reliable support for vertical tubing, with a durable carbon steel build and copper epoxy finish.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 552 0400CP

Technical Specifications

• ANSI: ANSI SP-58, ANSI SP-69
• Application: Pipe Support, Residential
• Coating: Copper Epoxy
• Collection: Figure 552
• Color Finish Category: Copper Tones
• Color Finish Name: Copper
• FM Approved: Yes
• Fits Pipe Size: 4 in
• Length: 12-5/8 in
• MSS: MSS SP-58, MSS SP-69
• Material: Carbon Steel
• Product Type: Riser Clamp
• UL Listed: Yes
• Work Load Limit: 300 lb
