Phd Manufacturing 451 0400EG Standard Clevis Hanger 4 in Pipe 5/8 in Rod

Product Description

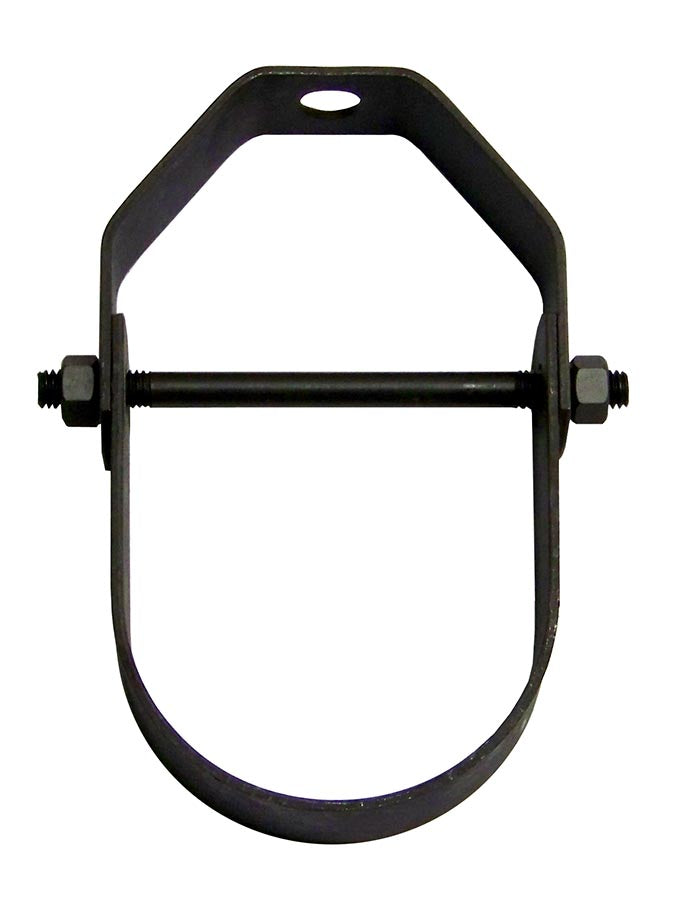

The PHD MANUFACTURING 451 0400EG standard clevis hanger is designed for the suspension of non-insulated stationary pipe lines. It fits 4 in pipes and 5/8 in rods, and supports a 1430 lb load. The hanger features a 3/8 in cross bolt and is constructed from low carbon steel with an electro-galvanized finish. Its height measures 7-11/16 inches.

• Underwriters' laboratories listed in the US (UL) and factory mutual approved for 2-1/2 to 8 in only
• Use of an upper locknut ensures proper performance
• When an over-sized clevis is used, a pipe spacer should be placed over the clevis bolt to prevent the lower U-strap from moving inward

Product Highlights

Designed for suspending non-insulated stationary pipe lines, this clevis hanger ensures reliable support with its robust construction and thoughtful design.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 451 0400EG
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 451 0400EG
• Manufacturer: PHD Manufacturing
• Brands: PHD
• Height (in): 7.6875
• Package Quantity: 1/Each
• Finish: Electro-Galvanized
• Load Rating: 1430 lb
• Material: Carbon Steel
• Model: 451
• Trade Size: 4 in
• Adjustable: Yes
• Product Type: Clevis Hanger
• Rod Size: 5/8 in
• Selling Size: 4 in
• Specifications Met: ANSI/MSS SP-58 (Type 1) Which Supersedes ANSI/MSS SP-69, Federal Specifications A-A-1192A (Type 1)
• ANSI: ANSI SP-58 Type 1, ANSI SP-69
• Application: Non-Insulated Pipes, Stationary Piping
• Coating: Electrogalvanized
• Collection: Fig 451
• FM Approved: Yes
• Fits Pipe Size: 4 in
• UL Listed: Yes
• Work Load Limit: 1430 lb
• Type: Clevis
• Nominal Size: 4 in
• Load Capacity: 1430 lb
• Pipe Size: 4 in
• Series: FIG 451
• UNSPSC: 31162306
