Phd Manufacturing 350 0062PL Import Beam Clamp 5/8 in Rod 600 lb Load

Product Description

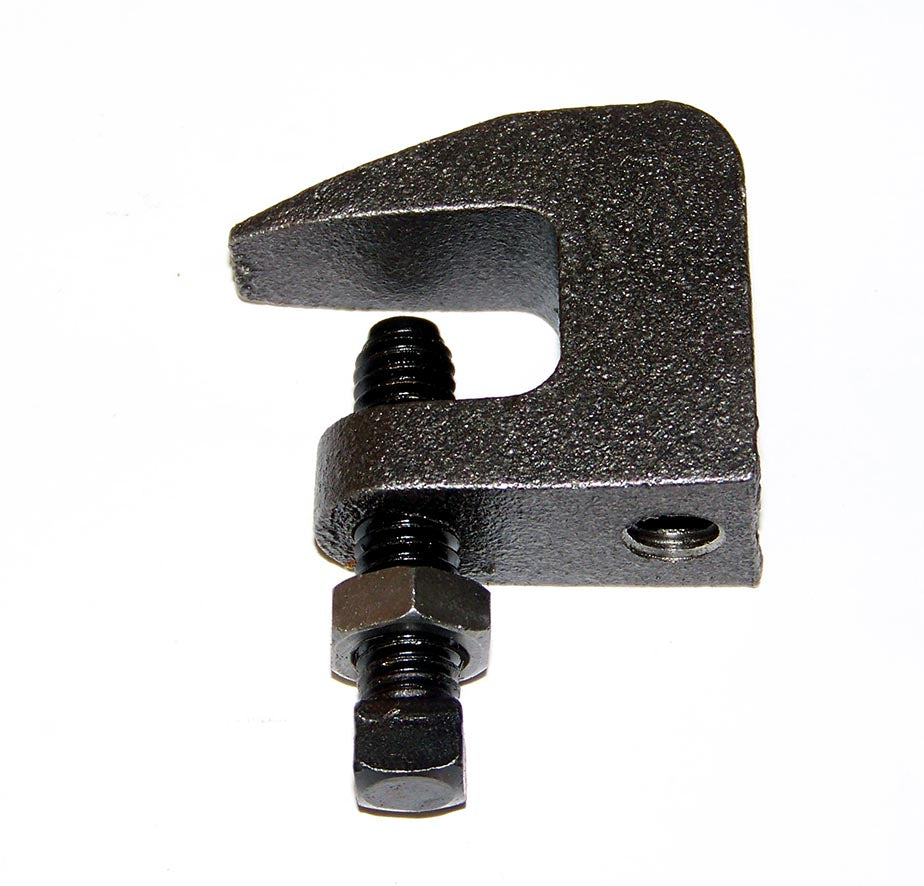

The PHD MANUFACTURING 350 0062PL Import Beam Clamp is designed for attaching a hanger rod to the top flange of a beam or bar joist, where the flange thickness does not exceed 3/4 in. The open U design permits rod adjustment, providing a secure and low-profile attachment solution for various installations from structural beams.

• Malleable iron with hardened steel cup point set screw and locknut
• Underwriters laboratories listed in the US (UL), Canada (CUL)
• Caution should be taken not to over tighten the set screw

Product Highlights

This beam clamp is suitable for beam mounting and supports up to 600 lb. It is made of malleable iron with a plain finish.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 350 0062PL

Technical Specifications

• Finish: Plain
• Load Capacity: 600 lb
• Material: Malleable Iron
• Rod Size: 5/8 in
• Series: FIG 350
• Brand: PHD Manufacturing Inc.
• Application: Beam Mounting
• Type: Beam Clamp
• Size: 5/8"
