Phd Manufacturing 250 1037eg C-Clamp with Lock Nut, 3/8 in Rod, 400 lb Load

Product Description

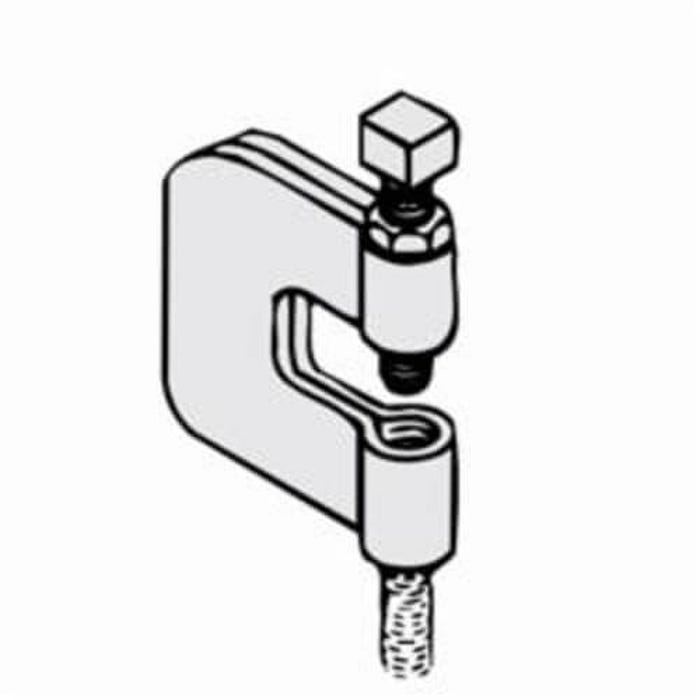

The PHD MANUFACTURING 250 1037EG C-Clamp is designed for attaching a hanger rod to the bottom flange of a beam. The hanger rod should make contact with the beam flange to ensure full engagement. It is suitable for use with 4 in pipes and has a load capacity of 400 lb.

• Low carbon steel with hardened steel cup point set screw
• Setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added
• Underwriters laboratories listed in the US (UL)

Product Highlights

The PHD C-Clamp features low carbon steel construction and is suitable for attaching hanger rods to beam flanges.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 250 1037EG

Technical Specifications

• Manufacturer Part Number: 250 1037EG
• Manufacturer: PHD Manufacturing
• Brands: PHD
• Standard Approvals: ANSI/SP 69/58 (Type 23) Federal A-A-1192A (Type 23) FM Approved UL Listed
• Suitable For Use With: 4 in Pipe
• Load Capacity: 400 lb
• Material: Carbon Steel
• Package Quantity: 1/Each
