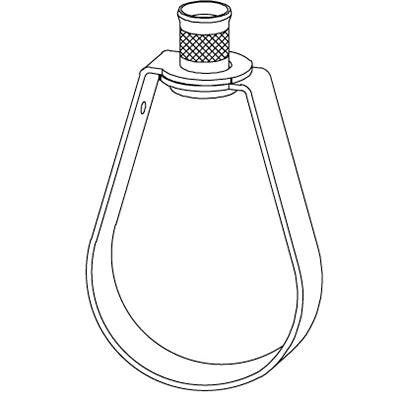

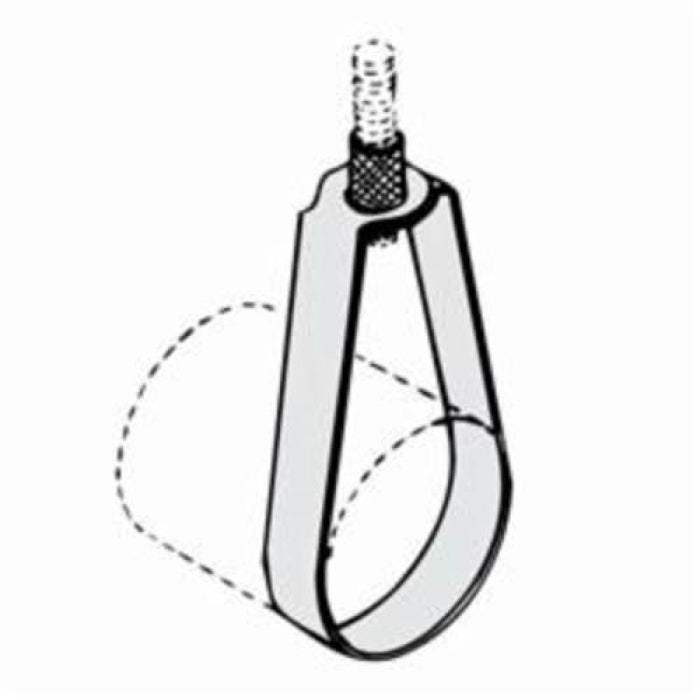

PHD 1410100EG Swivel Ring Hanger 1 in

Product Description

The PHD 1410100EG is a swivel ring hanger designed for the suspension of non-insulated stationary pipe lines. This hanger features a knurled insert nut allowing for vertical adjustment after installation. It is compliant with NFPA reduced rod size standards and fits pipe sizes from half inch to two inches.

• Constructed from carbon steel with an electrogalvanized finish
• Rated load capacity of three hundred pounds
• Includes a captured knurled insert nut which prevents loss during installation

Product Highlights

The PHD 1410100EG ensures secure and flexible installation for various piping applications.

Product Information

Standard Information

• Brand: PHD
• Manufacturer: PHD Manufacturing

Technical Specifications

• Adjustable Size: 1 in
• Finish: Electrogalvanized
• Item Name: Swivel Ring Hanger
• Length: 3-3/16 in
• Load Capacity: 300 lb
• Material: Carbon Steel
• Nominal Size: 1 in
• Rod Size: 3/8 in
• Series: 141
