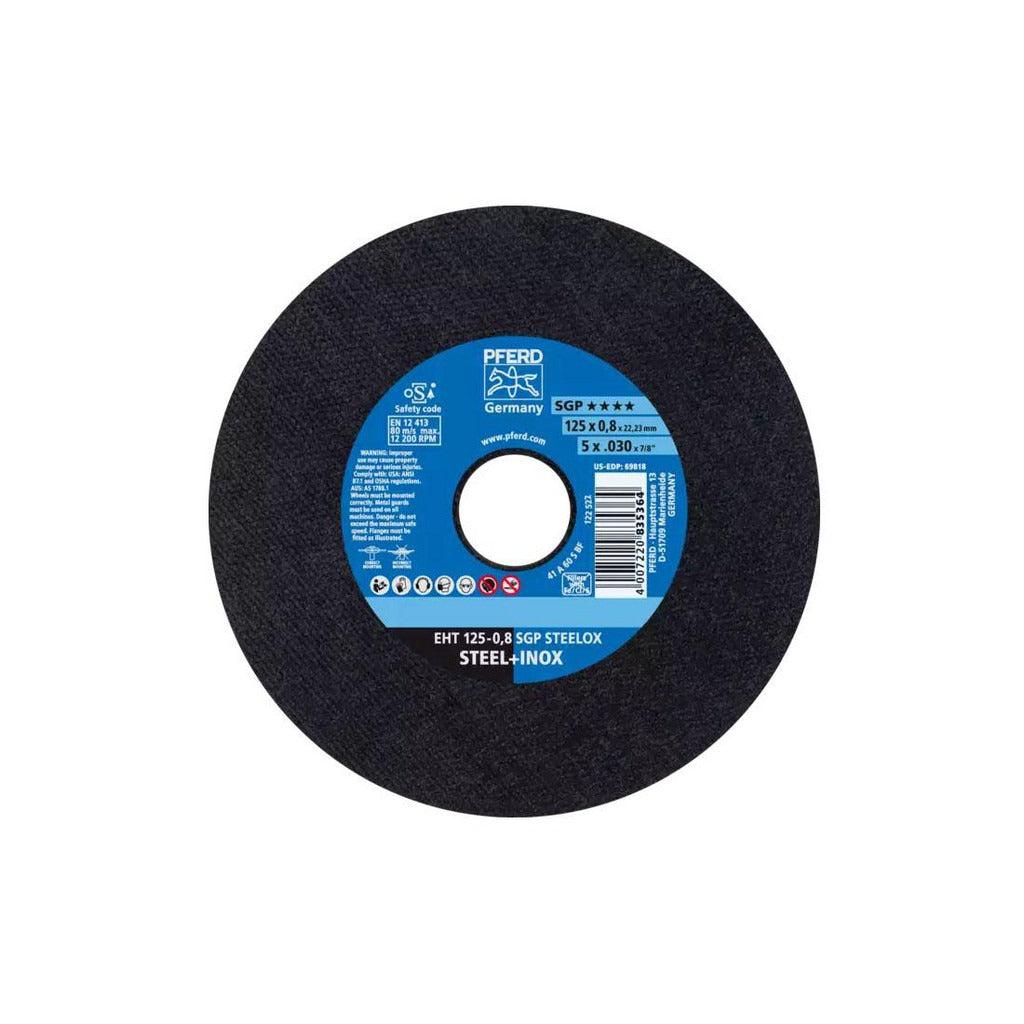

Pferd 61341094 Type 1 Cut-off Wheel 5 in Aluminum Oxide

Product Description

The PFERD 61341094 is a Type 1 (01/41) reinforced aluminum oxide cut-off wheel designed for aggressive cutting of steel and stainless steel. The wheel measures 5 inches in diameter with a 0.030-inch cutting thickness and a 7/8-inch arbor hole, making it a thin-profile wheel suited for clean, narrow cuts with minimal material loss. A resinoid bond holds 60-grit aluminum oxide abrasive in a reinforced matrix rated to 12,200 RPM maximum. Licensed tradespeople and fabricators use this wheel on angle grinders for metal cutting in both shop and field environments.

This cut-off wheel is suited for both residential and commercial metalworking applications where precision cuts on steel or stainless steel are required. Its thin kerf reduces heat buildup at the cut line, which is especially valuable when working with stainless steel to avoid discoloration or material stress. The black resinoid-bonded wheel carries specification designation A46S and is appropriate for use with standard 7/8-inch arbor angle grinders commonly found in HVAC, plumbing, electrical, and general fabrication trades.

Key Features

• 5-inch diameter with 0.030-inch thickness for narrow, low-waste cuts
• Aluminum oxide abrasive at 60 grit with reinforced resinoid bond
• 12,200 RPM maximum operating speed
• 7/8-inch arbor hole fits standard angle grinders
• Rated for steel and stainless steel cutting applications
• Specification designation A46S with Hardness Code S for consistent cut performance

Compatibility

Designed for use on angle grinders with a 7/8-inch arbor accepting 5-inch Type 1 (01/41) cut-off wheels. Rated for steel and stainless steel cutting per the manufacturer application designation.

Installation Notes

Installation and use should be performed by qualified personnel familiar with abrasive wheel safety requirements. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before each use and never exceed the marked maximum RPM. ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels apply to this product type.
