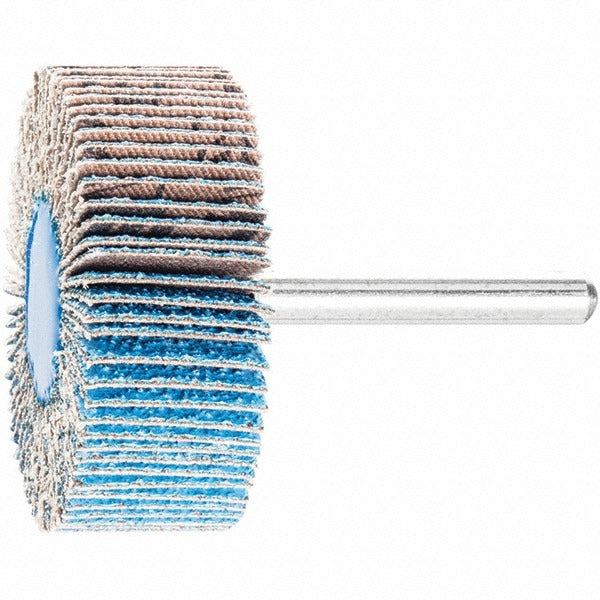

Pferd 47801343 Mounted Flap Wheel 60 Grit 2 in Aluminum Oxide

Product Description

The PFERD 47801343 is a mounted flap wheel designed for use with straight grinders in metalworking and surface finishing applications. It features a 2-inch outside diameter and a 1-inch face width, with a 1/4-inch shank diameter and a 1-1/2-inch shank length. The wheel uses coated aluminum oxide abrasive on a cloth backing at 60 grit, placing it in the medium grade range. Rated to a maximum of 23,000 RPM, it delivers consistent material removal and blending across a wide range of metal substrates. Machinists, fabricators, and tool-and-die professionals rely on this type of wheel for detail grinding and contour finishing in hard-to-reach areas.

This mounted flap wheel is suited for both shop and field metalworking tasks where a straight grinder is the tool of choice. It performs well on curved surfaces, inside bores, and contoured workpieces. The aluminum oxide abrasive makes it effective on a broad range of materials including stainless steel, steel, cast steel, aluminum, brass, bronze, copper, titanium, nickel base alloys, cobalt based alloys, nodular and annealed cast iron, and other non-ferrous metals. It is well matched to finishing, deburring, and blending work in fabrication, maintenance, and repair environments.

Key Features

• 60 grit aluminum oxide abrasive for medium-grade material removal and surface blending
• Cloth backing provides flexibility to conform to curved and contoured surfaces
• 1/4-inch shank diameter mounts directly in straight grinder collets
• 23,000 maximum RPM rating suits high-speed straight grinder operation
• Compatible with a wide range of ferrous and non-ferrous metal substrates
• 1-inch face width delivers an effective contact area for controlled finishing passes

Compatibility

Designed for use with straight grinders accepting a 1/4-inch shank. Suitable for grinding and finishing applications on aluminum, stainless steel, steel, cast iron, brass, bronze, copper, titanium, nickel base alloys, cobalt based alloys, and other non-ferrous metals as specified by the manufacturer.

Installation Notes

Installation is performed by a machinist or metal fabricator using a straight grinder with a compatible 1/4-inch collet. Before mounting, confirm the grinder's rated RPM meets or exceeds the 23,000 RPM maximum rating of the wheel and that the spindle is fully de-energized and locked out prior to chuck engagement. Do not exceed the maximum RPM stamped or listed on the wheel. Inspect the flap wheel for damage before each use and discard any wheel showing signs of delamination or core cracking.
