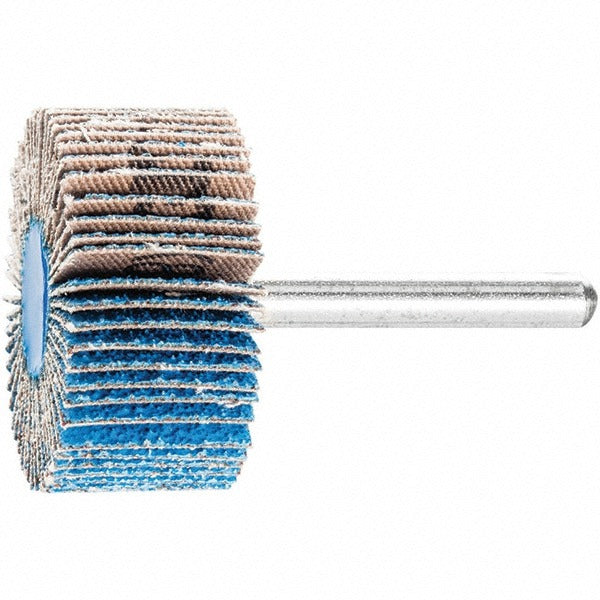

Pferd 47801314 Mounted Flap Wheel 60 Grit Aluminum Oxide

Product Description

The PFERD 47801314 is a mounted flap wheel designed for surface finishing, blending, and deburring on a wide range of metals. It measures 1.5 inches in diameter with a 1 inch face width and runs on a 0.25 inch shank. The abrasive is 60 grit aluminum oxide on a cloth backing, rated for up to 25,000 RPM. The medium-grade cut makes it well suited for controlled material removal and edge work on both ferrous and non-ferrous workpieces. It mounts directly to a straight grinder and is sold individually.

This flap wheel is intended for use with a straight grinder in both shop and field settings. The aluminum oxide abrasive and cloth backing handle a broad material range including stainless steel, steel, cast steel, heat treatable steel, nodular cast iron, annealed cast iron, cobalt based alloy, nickel base alloy, titanium, aluminum, brass, bronze, copper, and other non-ferrous metals. Typical applications include weld blending, surface preparation, and fine deburring where a consistent finish is required. The 1.5 inch shank length provides stable reach into restricted areas.

Key Features

• 60 grit aluminum oxide abrasive delivers medium-grade cutting action for blending and deburring
• Cloth backing provides flexibility and conforms to contoured surfaces
• Rated to 25,000 RPM for use with standard straight grinders
• 0.25 inch shank diameter fits common collet and chuck configurations on straight grinders
• Broad material compatibility covering ferrous, non-ferrous, and high-alloy metals
• 1.5 inch shank length supports reach into recessed or tight-access workpiece geometry

Compatibility

Designed for use with straight grinders accepting a 0.25 inch shank. Compatible material applications include aluminum, annealed cast iron, brass, bronze, cast steel, cobalt based alloy, copper, heat treatable steel, nickel base alloy, nodular cast iron, non-ferrous metal, stainless steel, steel, and titanium.

Installation Notes

This accessory should be installed only on a straight grinder rated to meet or exceed the 25,000 RPM maximum speed of the wheel. Power down and disconnect the grinder from its air or electrical supply before mounting or removing the flap wheel. Verify that the shank is fully seated and secured in the collet before operation. Always inspect the wheel for damage before use and follow applicable ANSI B11 and OSHA abrasive wheel safety requirements.
