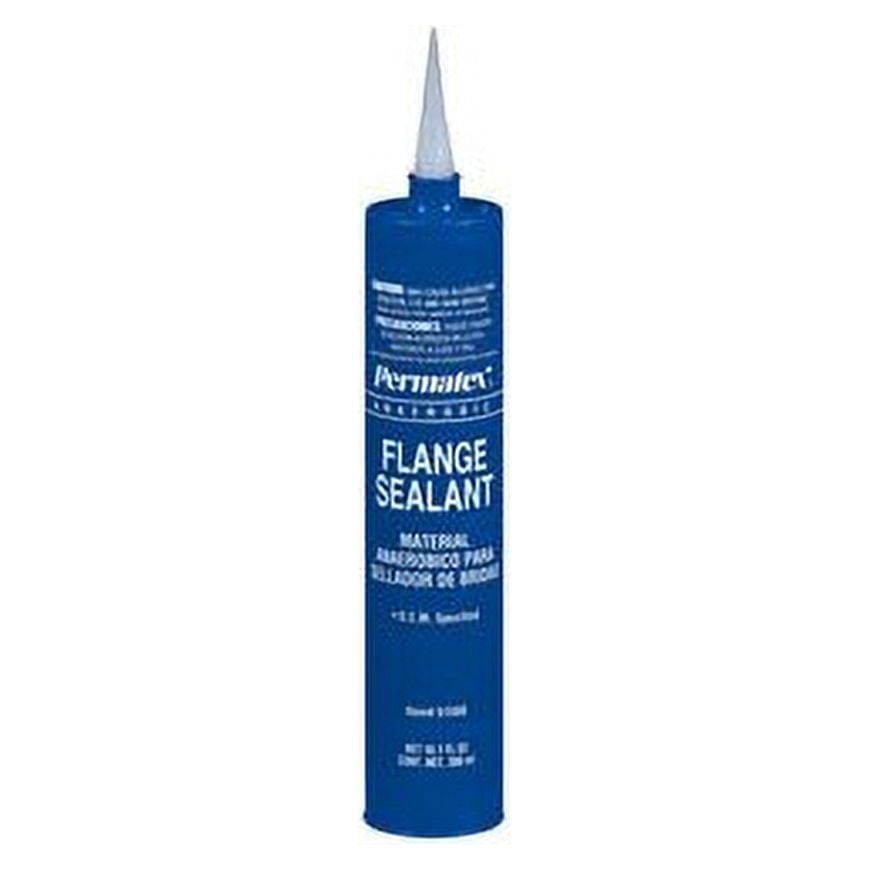

Permatex 51580 Anaerobic Flexible Gasketing Flange Sealant 300 mL Cartridge

Product Description

Permatex 51580 is an anaerobic flexible gasketing flange sealant supplied in a 300 mL cartridge. The methacrylate ester gel cures in the absence of air to form a resilient gasket for rigid machined flanges and flanges that move in service. It is a single-component formulation with a viscosity of about 275,000 to 950,000 cP, specific gravity ~1.1, VOCs <2% and typical cure time of ~12 hours. Operating range is -65 F to 300 F.

• Single-component methacrylate ester gel supplied in a 300 mL cartridge; specific gravity ~1.1
• Anaerobic cure for close-fitting metal flanges; typical cure time ~12 hours; viscosity 275,000–950,000 cP
• Temperature resistant from -65 F to 300 F; low VOC content (<2%); suitable for pumps, thermostats, compressors and transmission housings

Product Highlights

Flexible anaerobic flange sealant for rigid machined flanges; forms resilient gasket in service with operating range -65 F to 300 F.

Product Information

Standard Information

• Brand: PERMATEX
• Manufacturer Part Number: 51580
• Country of Origin: US

Technical Specifications

• Brand: Permatex
• MPN: 51580
• Product Type: Flange Sealant
• Chemical Type: Methacrylate ester
• Form: Gel
• Number of Components: 1-Part
• Container Size: 300 mL
• Container Type: Cartridge
• Cure Time: ~12 hours
• Viscosity: 275,000 to 950,000 cP
• Specific Gravity: 1.1
• VOCs Content: <2%
• Operating Temperature Range: -65 F to 300 F
• Gap Tolerance: < 0.015 inch
• Applications: Pumps, Thermostats, Compressors, Transmission housings, Axle covers, Engine cases, Transmission pans
• Odor: Mild
• Shelf Life: 760 days from date of manufacture
• Dimensions: 2.0 x 2.0 x 9.0 in
• Weight: 272 g (0.60 lb)
• Replaces: Preformed paper, rubber and cork gaskets
• Specific Uses: Gasket maker for rigid machined flanges and flanges that move in service
