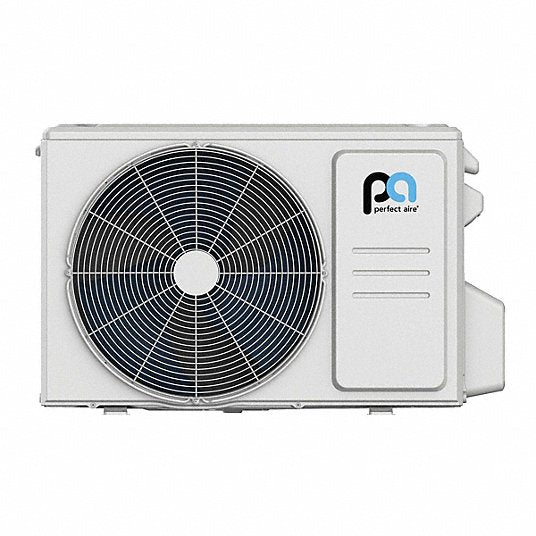

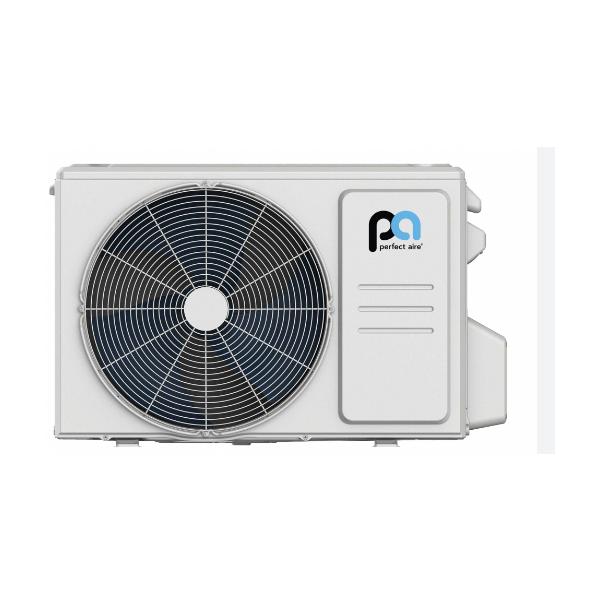

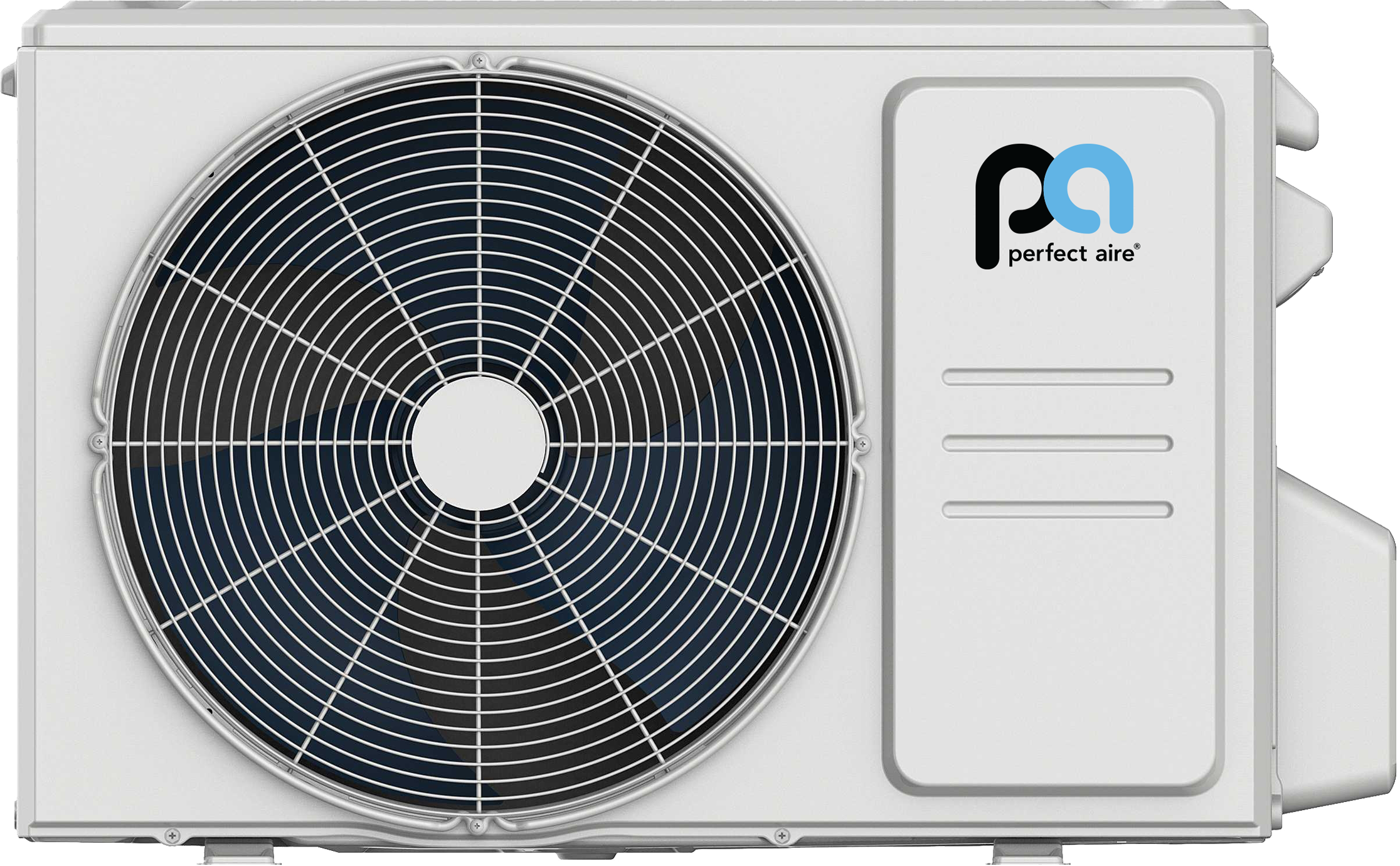

Perfect Aire 3PAMSH24B-SZO Mini-Split Condenser 24,000 BtuH 1,400 sq ft – 1,500 sq ft

Product Description

The Perfect Aire 3PAMSH24B-SZO mini-split condenser moves refrigerant to collect and release heat from mini-split air conditioner systems. Designed for regulating air temperatures inside a building, it connects with one or more indoor air handlers. Features a weather-resistant cabinet that houses the compressor, condenser coils, and other interior components. Can be roof-mounted or placed on the ground outside a wall.

• Outdoor condenser
• Moves refrigerant to collect and release heat
• Weather-resistant cabinet

Product Highlights

This mini-split condenser is ideal for multizone systems, offering efficient cooling and heating with its durable, weather-resistant design.

Product Information

Standard Information

• Brand: PERFECT AIRE
• Manufacturer Part Number: 3PAMSH24B-SZO
• Country of Origin: China

Technical Specifications

• Brand: PERFECT AIRE
• Manufacturer Part Number: 3PAMSH24B-SZO
• Airflow: 1,765 cfm
• Minimum Average Coverage Area: 1,400 sq ft
• Maximum Average Coverage Area: 1,500 sq ft
• Compatible Air Handler Grainger Part Number: 61UM23
• Compatible Air Handler Manufacturer Model Number: 3PAMSH24B-SZW
• Compressor Technology: Variable Output (Inverter)
• Compressor Type: Rotary
• Control Type: Electronic
• Maximum Cooling Capacity: 24,000 BtuH
• Current: 11.3 A; 12.3 A
• Dehumidification Rate: 5 pt/hr
• Energy Efficiency Ratio (EER) Rating: 8.9
• For Line Drop Height - Maximum: 98 ft
• For Line Length - Minimum: 10 ft
• For Line Length - Maximum: 98 ft
• Frequency: 60 Hz
• Fuse Current - Maximum: 30 A
• Heat Pump Heating Capacity - Maximum: 24,000 BtuH
• Heating Method: Heat Pump
• Heating Season Performance Factor: 16.5 BTU/Wh
• Liquid Line Size: 3/8 in
• Manufacturers Warranty Length: 2.5 yr
• Number of Indoor Units Supported: 1
• Number of Speeds: 3
• Operation Mode: Cooling/Heating
• Outdoor Depth: 13-1/2 in
• Outdoor Height: 26-1/2 in
• Outdoor Sound Level: 59.5 dBA
• Outdoor Width: 35 in
• Phase: Single
• Power Source: Hardwired
• Programming Capability: 24 hr On/Off Timer
• Refrigerant Precharge: 62.8 fl oz
• Refrigerant Type: R-410A
• Remote Control Functions: Full Function
• Seacoast Corrosion Protection: Front and Rear Coil
• SEER Rating: 16.5
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 16.7
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; UL
• Suction Line Size: 5/8 in
• System Component: Condenser Only
• Voltage: 208/230V AC
• Wattage - Heating: 2,475 W
• Heating Capacity - Heat Pump: 24,000 BtuH
• Heating Watts: 2,475 W
• Air Flow: 1764.71 cfm
• EER: 8.9
• HSPF: 16.5 BTU/Wh
• Amps: 11.3 A; 12.3 A
• Hz: 60 Hz
• Control Voltage: 208 to 230V AC
• Min./Max. Line Length - Single Run: 10 to 82 ft
• Max. Line Length - Total System: 98 ft
• Max. Vertical Line Length: 98 ft
• Max. Time Delay Fuse Amps: 30 A
• For Use With: 3PAMSH24B-SZW; Single Zone Indoor Unit
• Product Type: Ductless Mini-Split Outdoor Unit
• Key Features: Electronic Control Panel; WiFi-Capable
• Circuit Phase: 1
• Circuit Voltage: 208-230
• Packaging: Manufacture packaging
