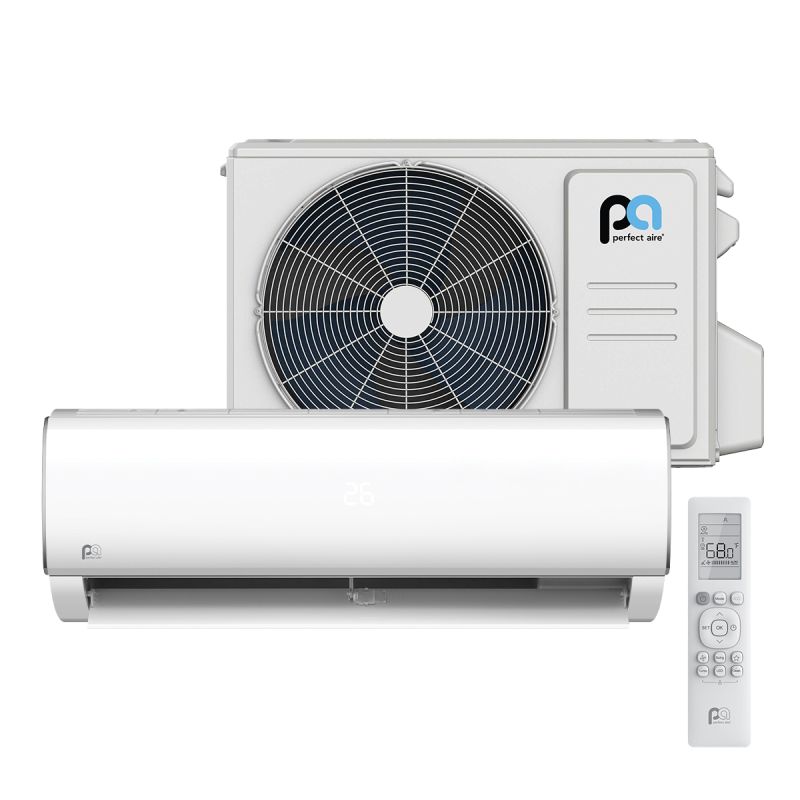

Perfect Aire 3PAMSH18B-SZW Ductless Mini-Split Heat Pump 18,000 BTU 230V

Product Description

The Perfect Aire 3PAMSH18B-SZW single zone mini split systems provide maximum comfort, efficiency, and control. Great as additions to houses with hot water heat, radiant panels, and base board heating. These units produce both cooling and heating in a single area without requiring ductwork. The system will automatically restart in the event of a power outage.

• Auto Restart
• Refrigerant Leak Detection
• Timer and Sleep Mode
• Low Noise Airflow System
• Horizontal Auto Swing
• Compressor Heating Belt
• Self Diagnostics

Product Highlights

The Perfect Aire mini-split system features auto restart, refrigerant leak detection, and a timer and sleep mode. It also has a low noise airflow system and horizontal auto swing.

Product Information

Standard Information

• Brand: PERFECT AIRE
• Manufacturer Part Number: 3PAMSH18B-SZW
• Country of Origin: China

Technical Specifications

• SKU: 3PAMSH18B-SZW / 3PAMSH18B-SZO
• Brand/Manufacturer: Perfect Aire
• Replaces: 3PAMSH18B
• Cooling BTU: 17, 000 BtuH
• Heating BTU: 18,000 BTU
• Maximum CFM: 464
• Refrigerant: R410A
• SEER1 (Efficiency): 16-17
• EER: 9.9
• Liquid Line: 1/4"
• Suction Line: 1/2"
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 20
• Min. Breaker Size: 15
• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Mini Split Type: Wall Mounted
• Indoor Head Mounting: Wall-Mount
• Number Of Indoor Units Supported: 1
• Operation Mode - HVAC: Cooling/Heating
• Heating Method: Heat Pump
• Heating Capacity - Heat Pump: 18, 000 BtuH
• Heating Watts: 1, 720 W
• SEER: 16.8
• HSPF: 16.8 BTU/Wh
• Amps: 7.5 A; 7.6 A
• Voltage: 230V AC
• Phase: 1
• Hz: 60 Hz
• Control Type: Electronic
• Control Voltage: 208 to 230V AC
• Dehumidification Rate: 4.2 pt/hr
• Programming Capability: 24-hr. On/Off Timer
• Remote Control Functions: Full Function
• Smart Connectivity: Cellular Control; Wifi Assistant Enabled; WiFi Control
• Seacoast Corrosion Protection: Front and Rear Coil
• Indoor Sound Level: 43.5/30 dBA
• Number of Speeds: 3
• Min./Max. Line Length - Single Run: 10 to 82 ft
• Max. Line Length - Total System: 98 ft
• Compressor Type: Rotary
• Refrigerant Type: R-410A
• Refrigerant Precharge: 47.97 fl oz
• Requires: Outdoor Condensing Unit and Refrigerant Line Set for New Installation
• For Use With: 3PAMSH18B-SZO; Single Zone Outdoor Unit
• Standards: AHRI, UL

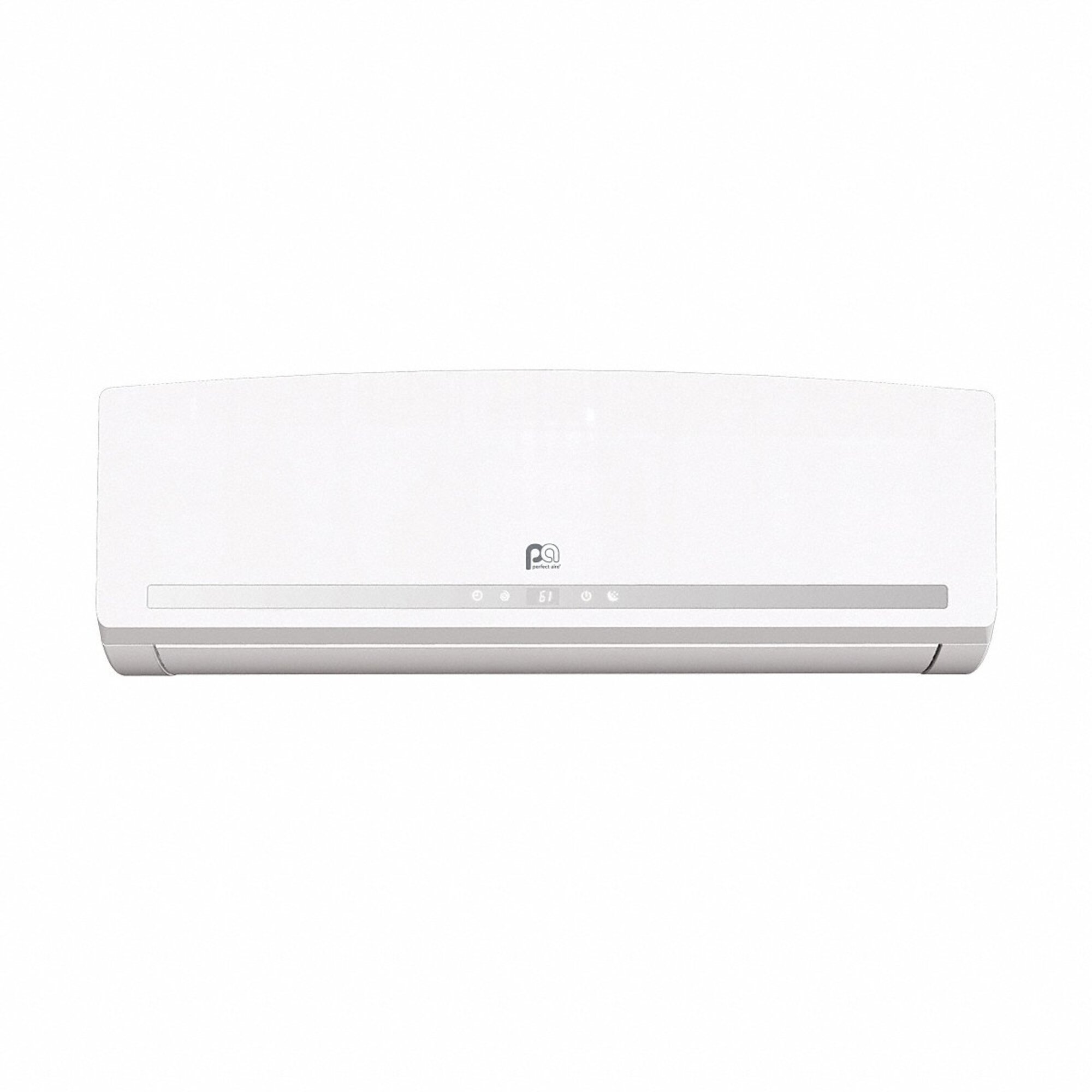

• Product Type: Ductless Mini-Split Indoor Unit
• Key Features: Electronic Control Panel; WiFi-Capable
• Manufacturer Part Number: 3PAMSH18B-SZW
• UNSPSC: 40101701
• Additional Information: Temperature Sensing Remote
