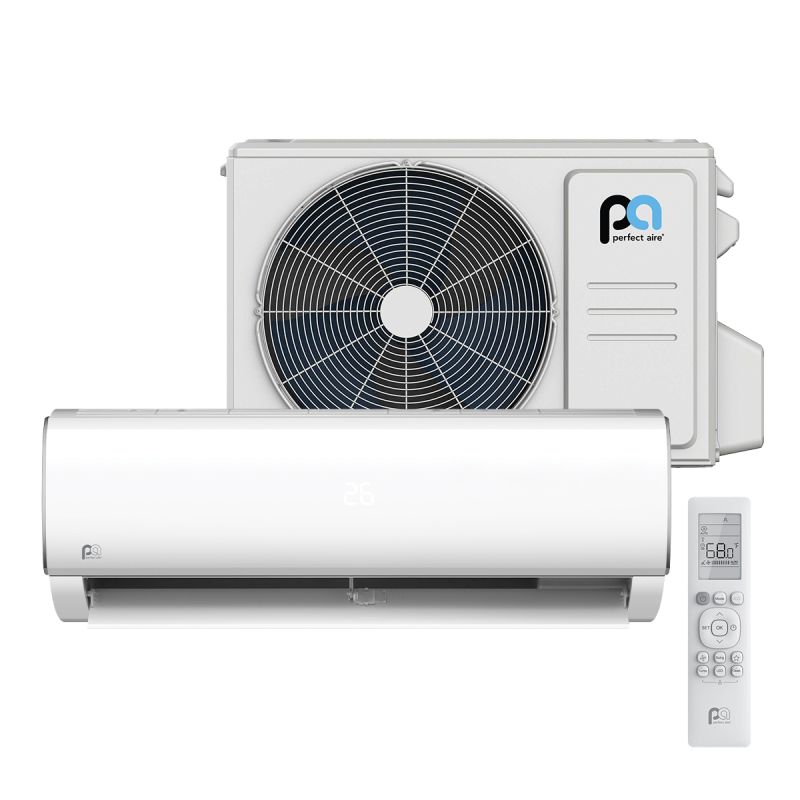

Perfect Aire 3PAMSH18B-SZO Ductless Mini Split Heat Pump 18,000 BTU 230V

Product Description

The PERFECT AIRE 3PAMSH18B-SZO single zone mini split systems provide maximum comfort, efficiency, and control. A ductless mini split system are great as additions to house with hot water heat, radiant panels, and base board heating. These units produce both the cooling and heating in a single area without requiring ductwork.

• Auto Restart
• Refrigerant Leak Detection
• Timer and Sleep Mode
• Low Noise Airflow System
• Horizontal Auto Swing
• Compressor Heating Belt
• Self Diagnostics

Product Highlights

This mini-split system features a golden hydrophilic condenser that improves heating efficiency by accelerating the defrosting process. The anticorrosive golden coating on the condenser withstands salty air, rain, and other corrosive elements.

Product Information

Standard Information

• Brand: PERFECT AIRE
• Manufacturer Part Number: 3PAMSH18B-SZO
• Country of Origin: China

Technical Specifications

• SKU: 3PAMSH18B-SZW / 3PAMSH18B-SZO
• Brand: PERFECT AIRE
• Manufacturer Part Number: 3PAMSH18B-SZO
• Replaces: 3PAMSH18B
• Cooling BTU: 17,000 BTU
• Heating BTU: 18,000 BTU
• Maximum CFM: 464
• Refrigerant: R410A
• SEER1 (Efficiency): 16-17
• EER: 9.9
• Liquid Line Size: 1/4 in
• Suction Line Size: 1/2 in
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 20
• Min. Breaker Size: 15
• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Mini Split Type: Wall Mounted
• Airflow: 1,235 cfm
• Minimum Average Coverage Area: 550 sq ft
• Maximum Average Coverage Area: 700 sq ft
• Compressor Technology: Variable Output (Inverter)
• Compressor Type: Rotary
• Control Type: Electronic
• Minimum Cooling Capacity: 17,000 BtuH
• Maximum Cooling Capacity: 18,000 BtuH
• Current: 7.5 A; 7.6 A
• Dehumidification Rate: 4.2 pt/hr
• Energy Efficiency Ratio (EER) Rating: 9.9
• For Line Drop Height - Maximum: 98 ft
• For Line Length - Minimum: 10 ft
• For Line Length - Maximum: 98 ft
• Frequency: 60 Hz
• Fuse Current - Maximum: 20 A
• Heat Pump Heating Capacity - Maximum: 18,000 BtuH
• Heating Method: Heat Pump
• Heating Season Performance Factor: 16.8 BTU/Wh
• Includes Air Filter: Air Filter
• Number of Indoor Units Supported: 1
• Number of Speeds: 3
• Operation Mode: Cooling/Heating
• Outdoor Sound Level: 57 dBA
• Phase: Single
• Power Source: Hardwired
• Programming Capability: 24 hr On/Off Timer
• Refrigerant Precharge: 47.97 fl oz
• Remote Control Functions: Full Function
• Seacoast Corrosion Protection: Front and Rear Coil
• SEER Rating: 16.8
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 18.3
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; UL
• Voltage: 208/230V AC
• Wattage - Heating: 1,720 W
• HSPF: 16.8 BTU/Wh
• Heating Capacity - Heat Pump: 18, 000 BtuH
• Heating Watts: 1, 720 W
• Air Flow: 1235.29 cfm
• Amps: 7.5 A; 7.6 A
• Control Voltage: 208 to 230V AC
• Max. Line Length - Total System: 98 ft
• Max. Vertical Line Length: 98 ft
• Max. Time Delay Fuse Amps: 20 A
• For Use With: 3PAMSH18B-SZW; Single Zone Indoor Unit

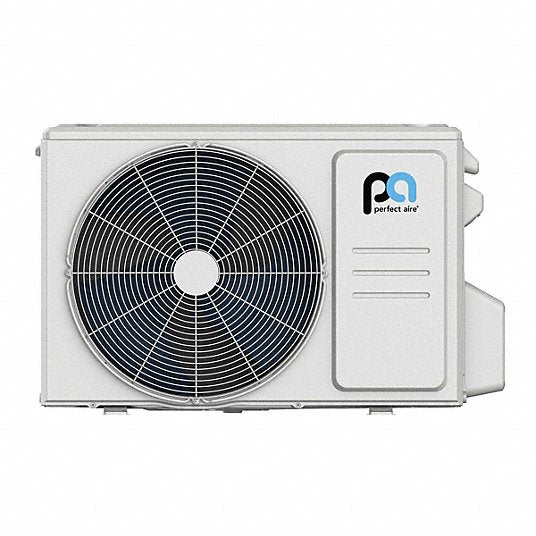

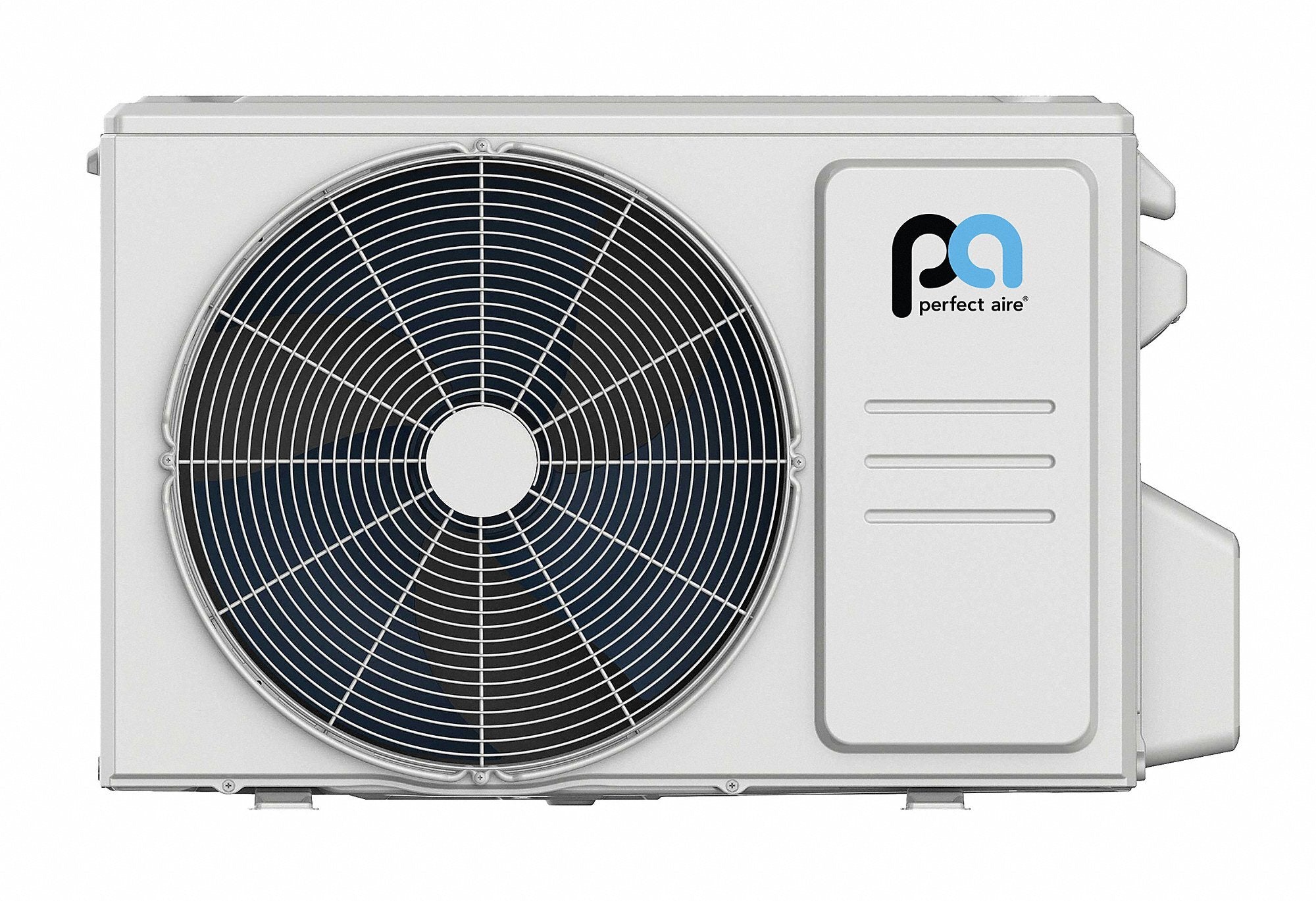

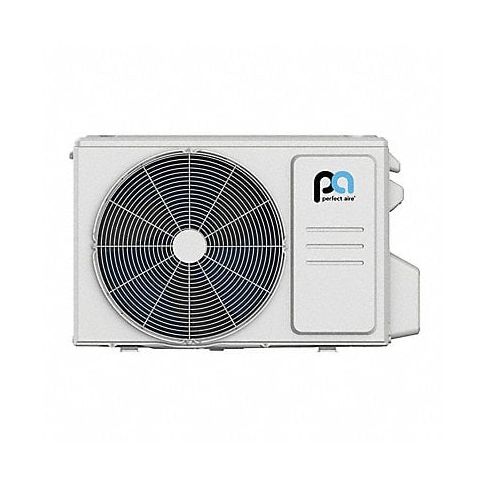

• Product Type: Ductless Mini-Split Outdoor Unit
• Key Features: Electronic Control Panel; WiFi-Capable
• UNSPSC: 40101806
• Additional Information: Temperature Sensing Remote
• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N
• GDS Category Name: Ductless Split Systems A/C and Heat Pumps
• GDS Family Name: Air Conditioners and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Heat pumps
• UNSPSC Commodity ID: 06
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
• Not For Sale In: HI AK PR
