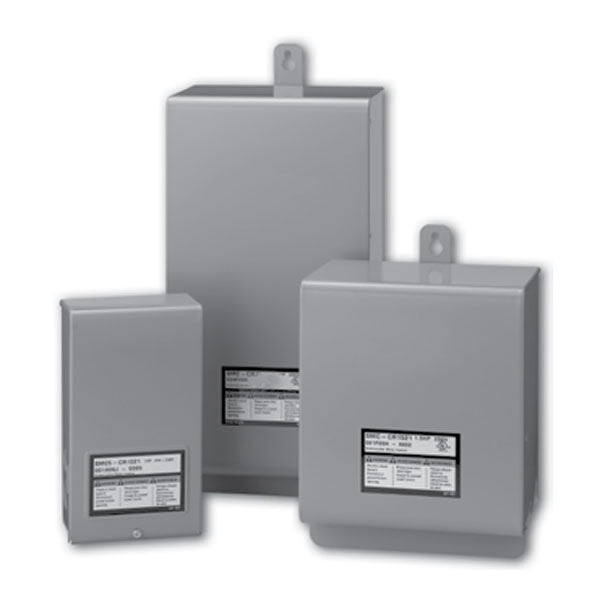

Pentair SMC-IR0721-02 Submersible Motor Control Box 3/4 HP 230V Single Phase

Product Description

The PENTAIR SMC-IR0721-02 is a submersible motor control box designed for Capacitor Start / Induction Run (CSIR) applications, also interchangeable with Capacitor Start / Capacitor Run (CSCR) systems. This control box is suitable for water systems in residential, commercial, multiple housing, and farm uses, specifically where a submersible 3-wire motor is employed. It features a rugged NEMA 3R enclosure for indoor/outdoor use and a HardBondâ„¢ Finish, offering 5-times more corrosion resistance. Internally, it includes a high-load voltage relay and heavy-duty contacts.

• Interchangeable with existing motor controls for Capacitor Start / Induction Run (CSIR) and Capacitor Start / Capacitor Run (CSCR) applications.
• Features a rugged NEMA 3R enclosure for indoor/outdoor use and a HardBondâ„¢ Finish for enhanced corrosion resistance.
• Equipped with a high-load voltage relay, heavy-duty contacts, and external access to overload reset (CSCR).

Product Highlights

Submersible motor control box for 3/4 HP, 230V, single-phase motors, featuring a NEMA 3R enclosure and corrosion-resistant HardBondâ„¢ Finish.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: SMC-IR0721-02

Technical Specifications

• Model Number: SMC-IR0721-02
• Horsepower: 3/4 HP
• Voltage: 230V
• Phase: Single Phase
• Motor Control Type: Capacitor Start/Induction Run (CSIR)
• Enclosure Rating: NEMA 3R
• Finish: HardBondâ„¢ (5-times more corrosion resistant)
• Electrical Connections: Multiple-size knockouts, Heavy-duty terminal connectors (up to #4 AWG wire)
• Internal Components: High-load voltage relay, Heavy-duty contacts, External access to overload reset (CSCR)
• Agency Approvals: UL 778, CUL Recognized (60 Hz)
