Pentair smc-cr1521-02 Submersible Motor Control Box 1.5 Hp

Product Description

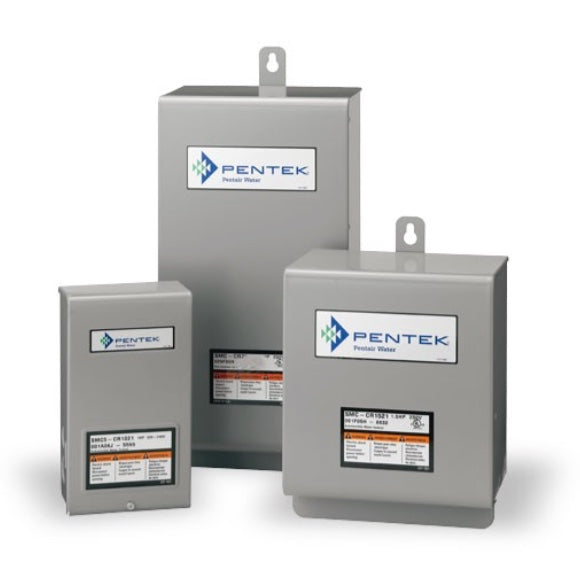

The PENTAIR smc-cr1521-02 is a submersible motor control box designed for single-phase well pump motors requiring Capacitor Start / Capacitor Run (CSCR) operation. Rated at 1.5 HP and 230 volts, this control box manages motor starting and running capacitor functions to deliver reliable pump starts under load. It is installed above ground, typically in a utility area near the pressure tank, and is serviced by licensed well pump contractors or electricians familiar with submersible pump systems. CSCR configurations are commonly used where sustained torque and consistent motor performance are required in demanding or high-temperature environments.

This control box fits residential and light commercial well pump installations where a 1.5 HP single-phase submersible motor is in service at 230 volts. Pentek offers a full range of models from 1/2 HP through 5 HP, and this unit is designed to be interchangeable with existing motor controls for both CSIR and CSCR applications. It is suited for harsh conditions and elevated ambient temperature installations where standard controls may underperform.

Key Features

• CSCR (Capacitor Start / Capacitor Run) design for reliable motor starting and running torque
• Rated 1.5 HP at 230 volts, single phase
• Interchangeable with existing CSIR and CSCR motor control boxes across compatible pump systems
• Built for harsh and high-temperature installation environments
• Part of a full Pentek control box lineup covering 1/2 HP through 5 HP models

Compatibility

Designed as a replacement or upgrade motor control box for 1.5 HP, 230-volt, single-phase submersible pump motors requiring CSCR operation. Compatible with CSIR and CSCR applications across the Pentek control box range.

Installation Notes

Installation should be performed by a licensed electrician or well pump contractor in accordance with NEC requirements for motor control equipment. Disconnect and lock out all power to the pump circuit before opening or servicing the control box. Ensure the enclosure is mounted in a protected location away from direct moisture exposure, and verify that the control box HP and voltage rating match the submersible motor nameplate before wiring.

Technical Specifications

• Horsepower: 1.5 HP
• Voltage: 230 volts
• Phase: Single Phase
• Motor Start Type: CSCR (Capacitor Start / Capacitor Run)

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: smc-cr1521-02
