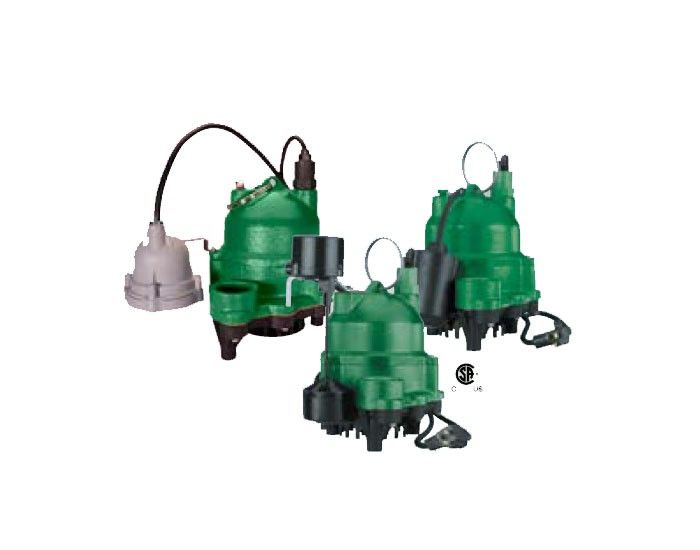

The Myers MDC series cast iron sump/light effluent pumps are designed to operate in a variety of installations.
A unique combination of corrosion-resistant materials make these pumps a great choice for extreme conditions.
Pump intake screen, impeller, volute base, switch, and power cord are serviceable. Available in 1/3 and 1/2 HP models.
Features:
Solid and Reliable: High-endurance, oil-cooled motor provides continuous bearing lubrication and maximizes heat dissipation
Eliminates Failures: Shaded pole motor eliminates failureprone switches and relays
Motor Protection: Long-life carbon/ceramic seal protects motor against water leakage
Thermal Overload: Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature
Extended Service: Lubricated ball bearings and shaft seal for longer service life
No Drilling Required: Anti-airlock hole in base reduces added labor
Piggyback Plug for Convenience: Vertical and tethered switch models offer a piggyback plug for automatic operation
Specifications:
Capacities Up to 62 GPM (234 LPM)
Shut-off Head Up to 32 (9.75 m)
Operation Tethered Models
On: 12-1/2 (318 mm)
Off: 3-1/2 (89 mm)
Vertical Models
On: 6-1/2 (165 mm); Off: 2 (51 mm)
Solids Handling 1/2 (12.7 mm)
Liquids Handling Drainage effluent
Continuous Liquid Temperature 130F (54C)
Motor/Electrical Data 1/3 HP, 9.8A; 1/2 HP, 12A; shaded pole with thermal overload protection, 115V, 1O, 60Hz, 1550 RPM
Acceptable p
H Range 6-9
Shaft Seal Carbon and ceramic
Housing Heavy cast iron
Power Cord 10 (3 m) or 20 (6 m), 16/3, SJTW, SJTW-A
Discharge, NPT 1-1/2 (38 mm)
Min. Basin Diameter Tethered: 14 (356 mm)
Vertical: 10 (254 mm)
